Home >> Acura >> 1996 >> RL V6-3474cc 3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 72

Diagram Set 72

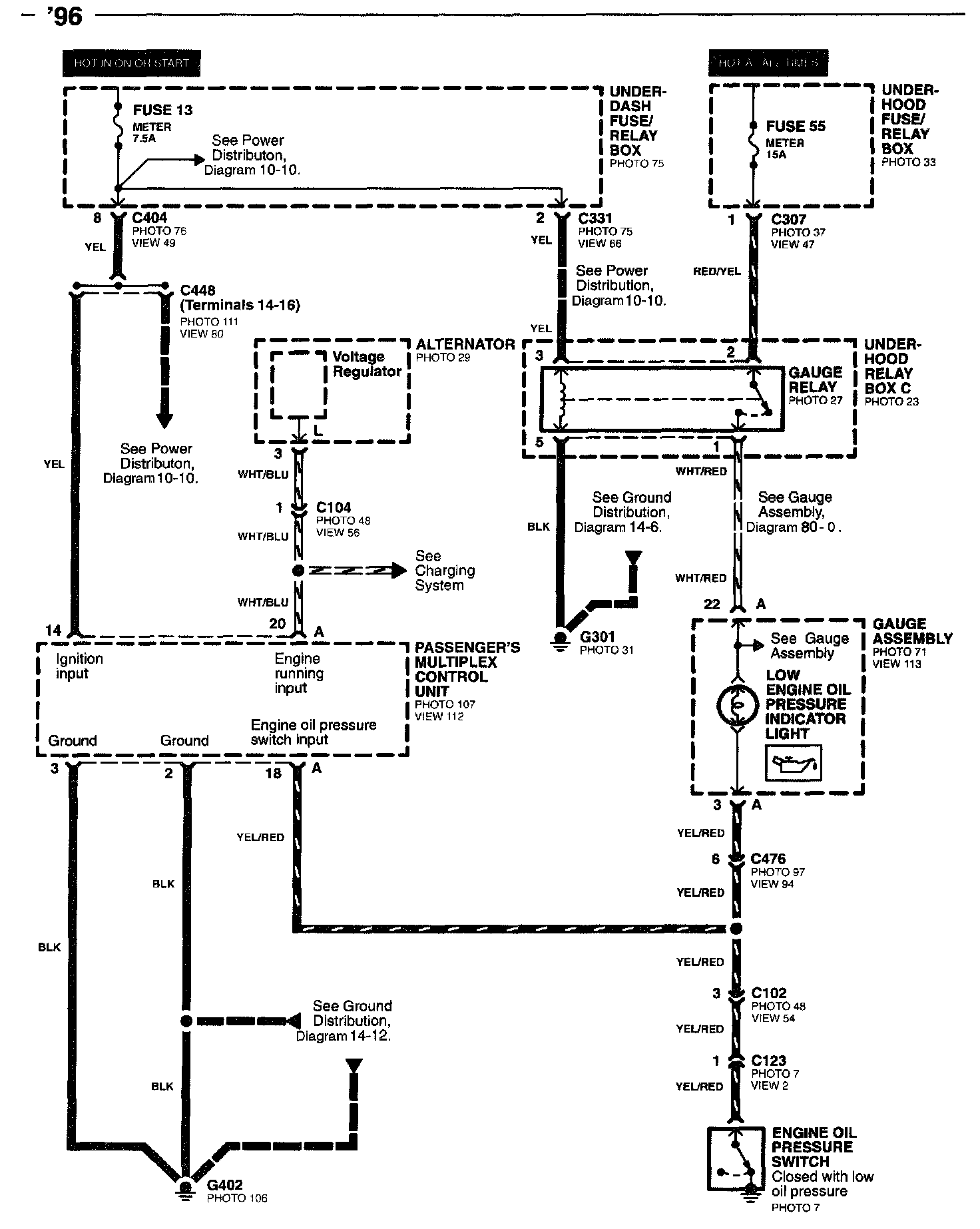

Diagram 72-0 ('96):
