Acura
>>
1996
>>
RL V6-3474cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 155
Diagram Set 155

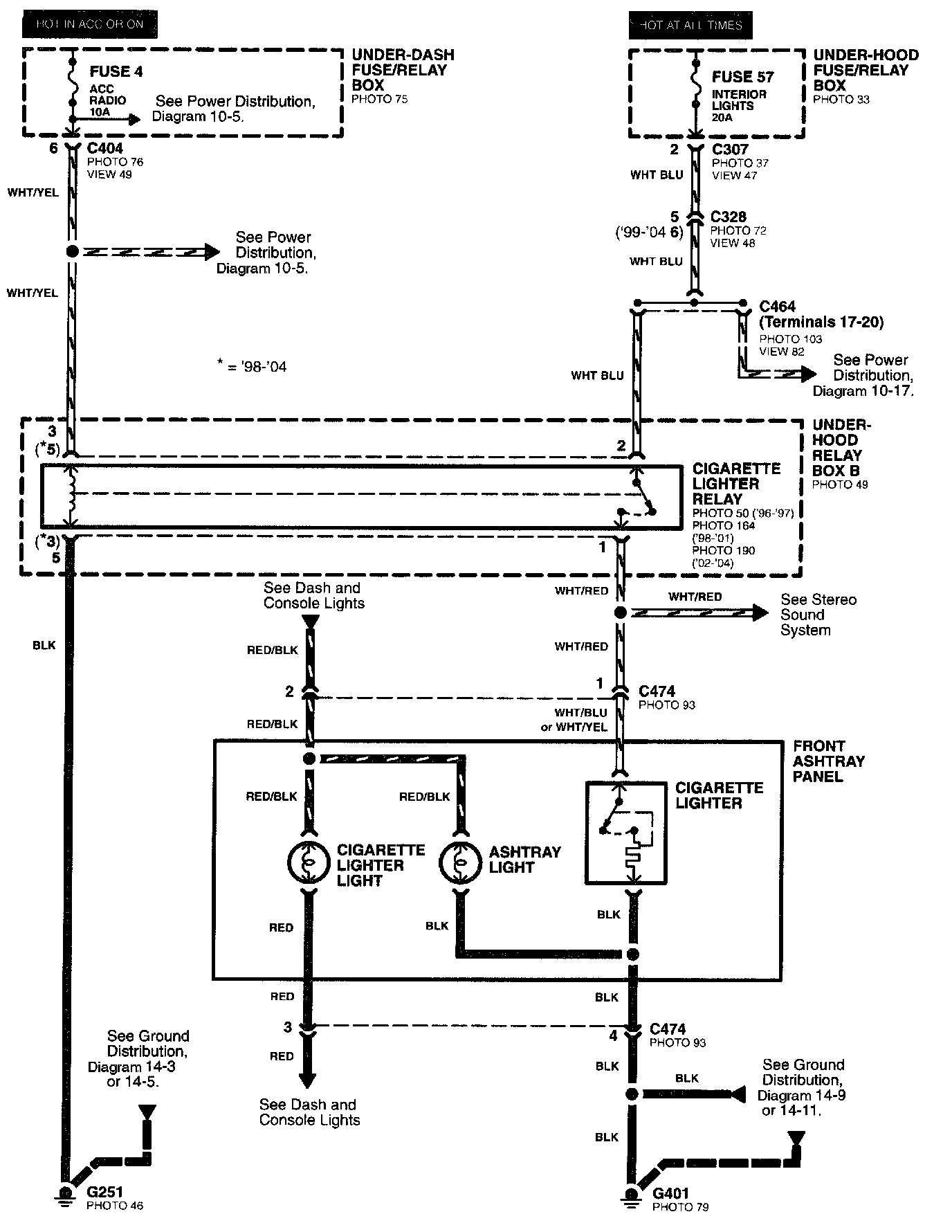

Diagram 155-0:
