Glove Compartment: Service and Repair

Component Removal/Installation

CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

NOTE: Take care not to scratch the dashboard and related parts.

Glove box:

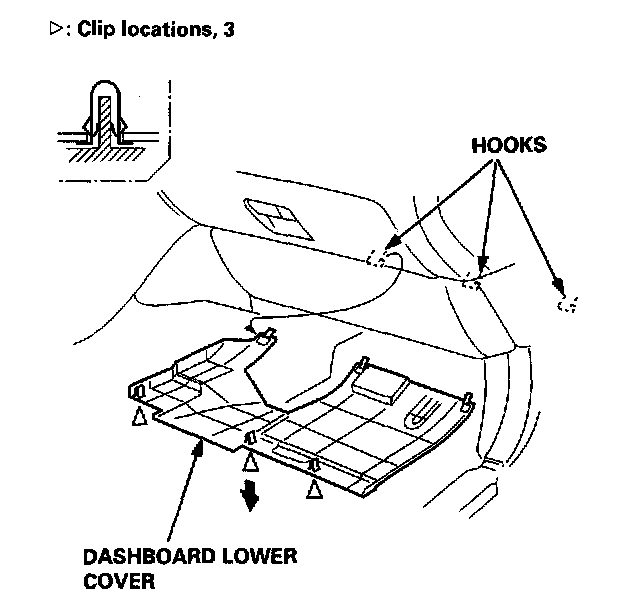

1. Remove the dashboard lower cover.

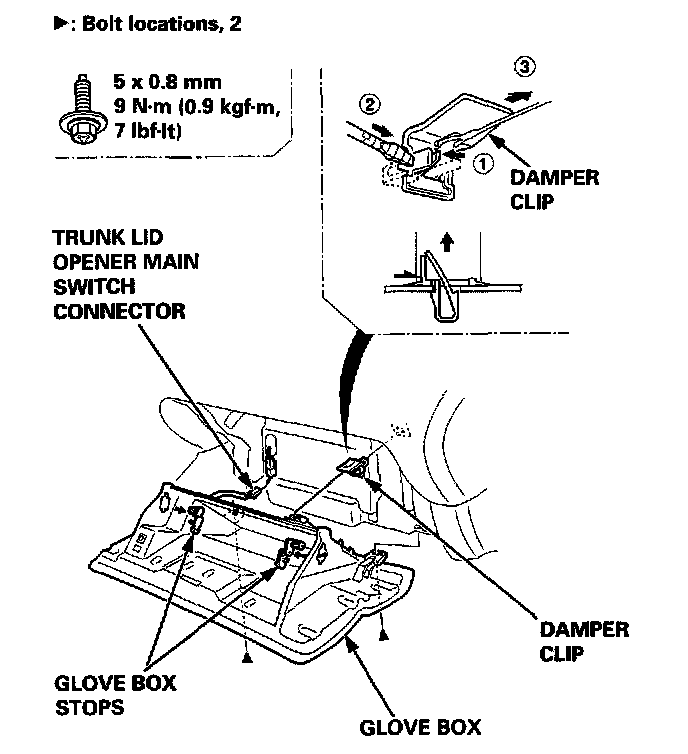

2. Remove the glove box stop from each side.
3. Detach the damper clip while holding the glove box, and disconnect the connector.
4. Remove the bolts, then remove the glove box.




5. Remove the glove box back cover.
6. Installation is the reverse of the removal procedure.
