Windshield Wiper Motor Replacement

WINDSHIELD WIPER MOTOR / REPLACEMENT
1. Open the hood, and remove the cap nuts and wiper arms.


NOTE: Remove the wiper arms carefully without damaging the hood.

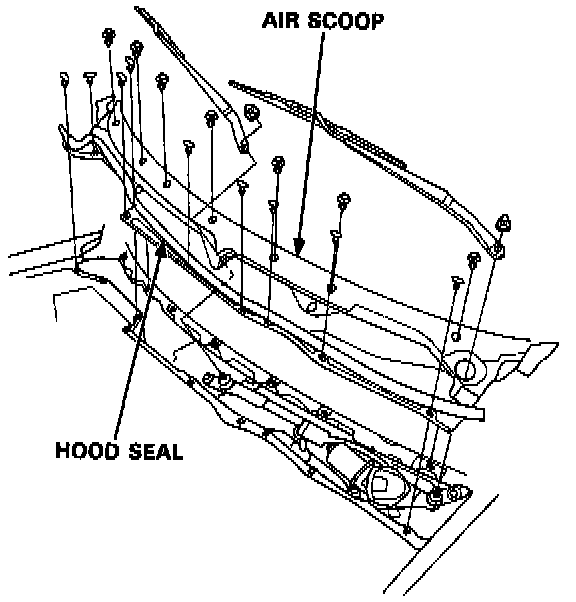

2. Remove the hood seal and air scoop by prying out their trim clips.

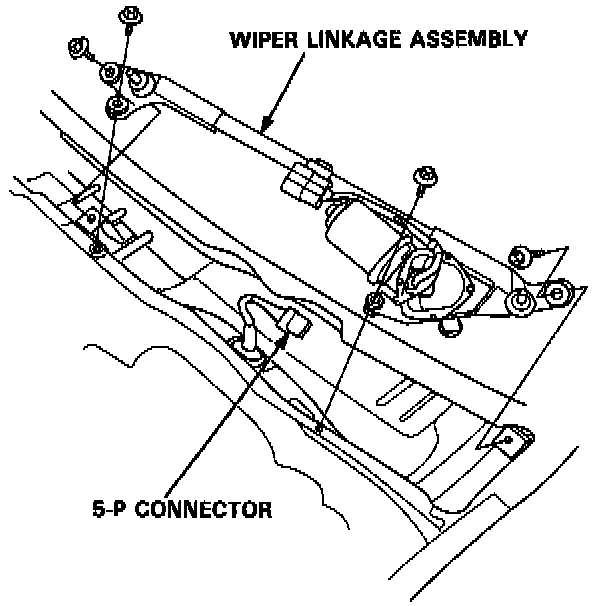

3. Disconnect the 5-P connector from the windshield wiper motor.
4. Remove the four mounting bolts and wiper linkage assembly.
5. Remove the wiper harness from the wiper linkage.
6. Separate the wiper linkage and crank arm at the joint.

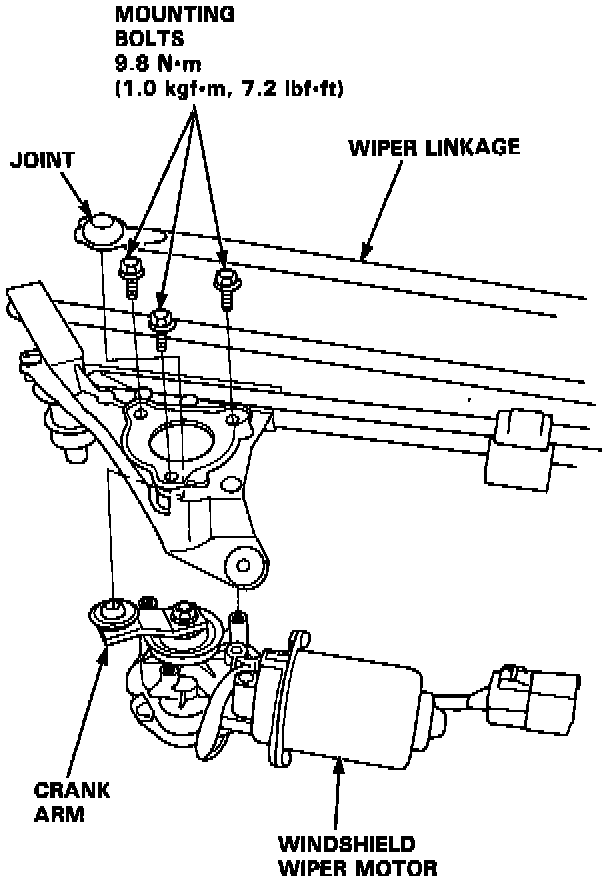

7. Remove the three mounting bolts and wiper motor.
8. Install in the reverse order of removal.
