Hatchback

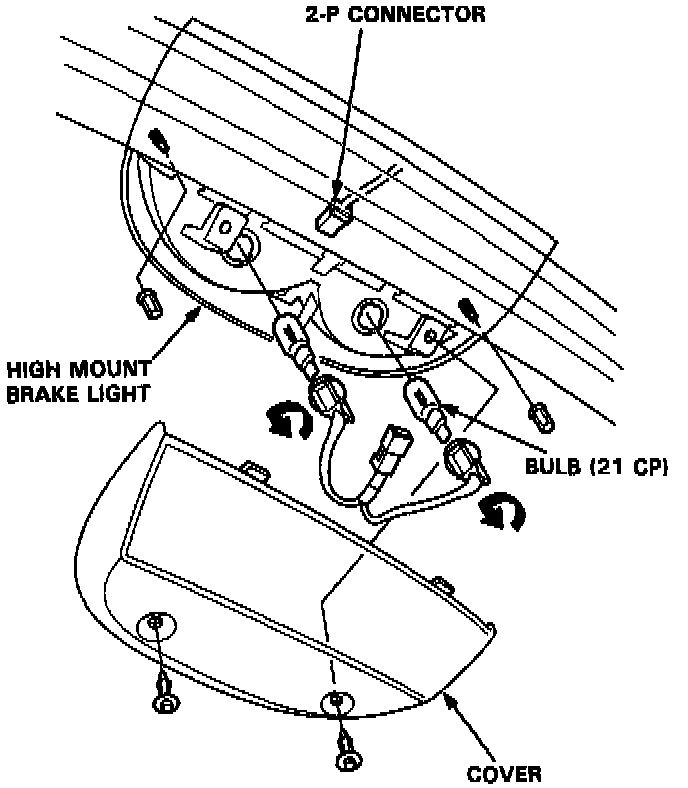

HIGH MOUNT BRAKE LIGHT / REPLACEMENT ( BULB TYPE)
Hatchback:

1. Open the hatch.
2. Remove the two clips and the cover.







3. Remove the two nuts and the high mount brake light, then disconnect the 2-P connector.
4. Turn the socket 45° counterclockwise to remove the bulb.
5. Install the high mount brake light in the reverse order of removal, and clean the rear window glass before installing.

CAUTION: When installing the high mount brake light, make sure the rubber seal fits against the rear window evenly.
