Clock: Service and Repair

CLOCK / REPLACEMENT

CAUTION:
* Pry the clock out at the left side.
* Be careful not to damage the clock and the dashboard when prying the clock out.

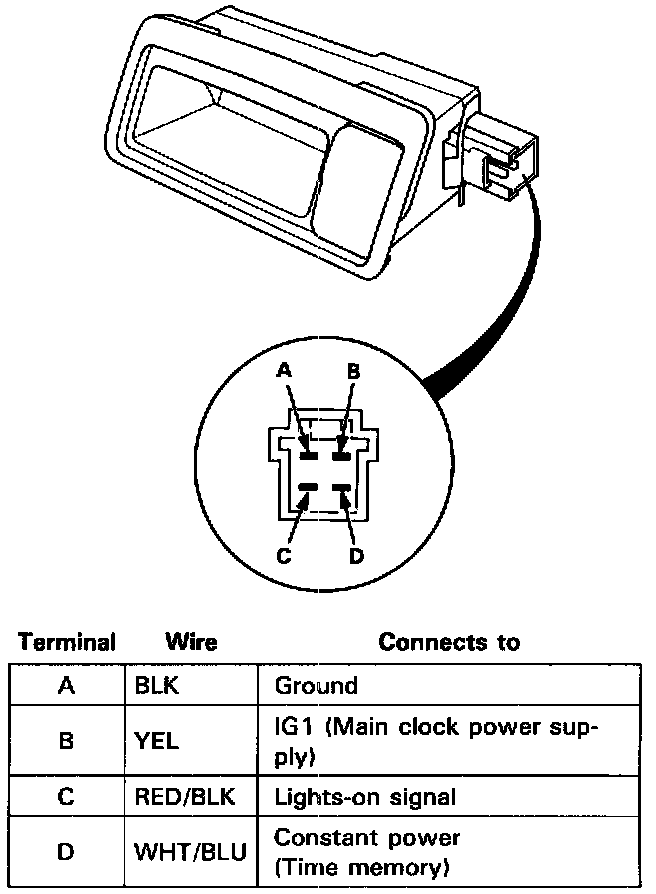

Clock Terminals:

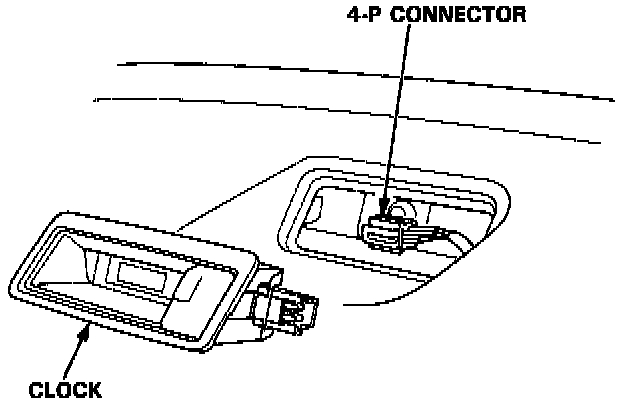

Pry the clock out from the dashboard, then disconnect the 4-P connector.
