Heater Core Case: Testing and Inspection

Heater Relay / Test

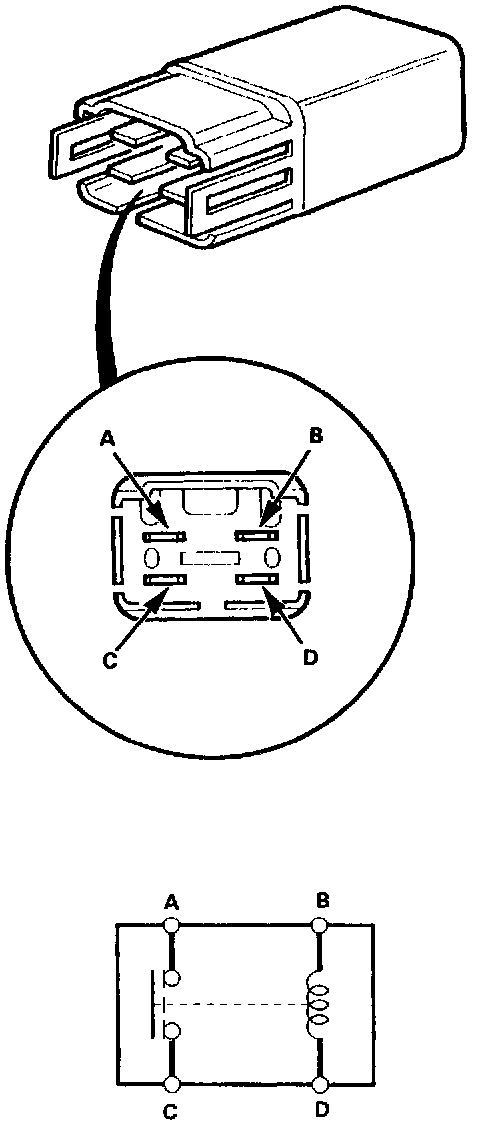

There should be continuity between the A and C terminals when power and ground are connected to the B and D terminals, and there should be no continuity when power is disconnected.
