Integra L4-1834cc 1.8L DOHC PFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

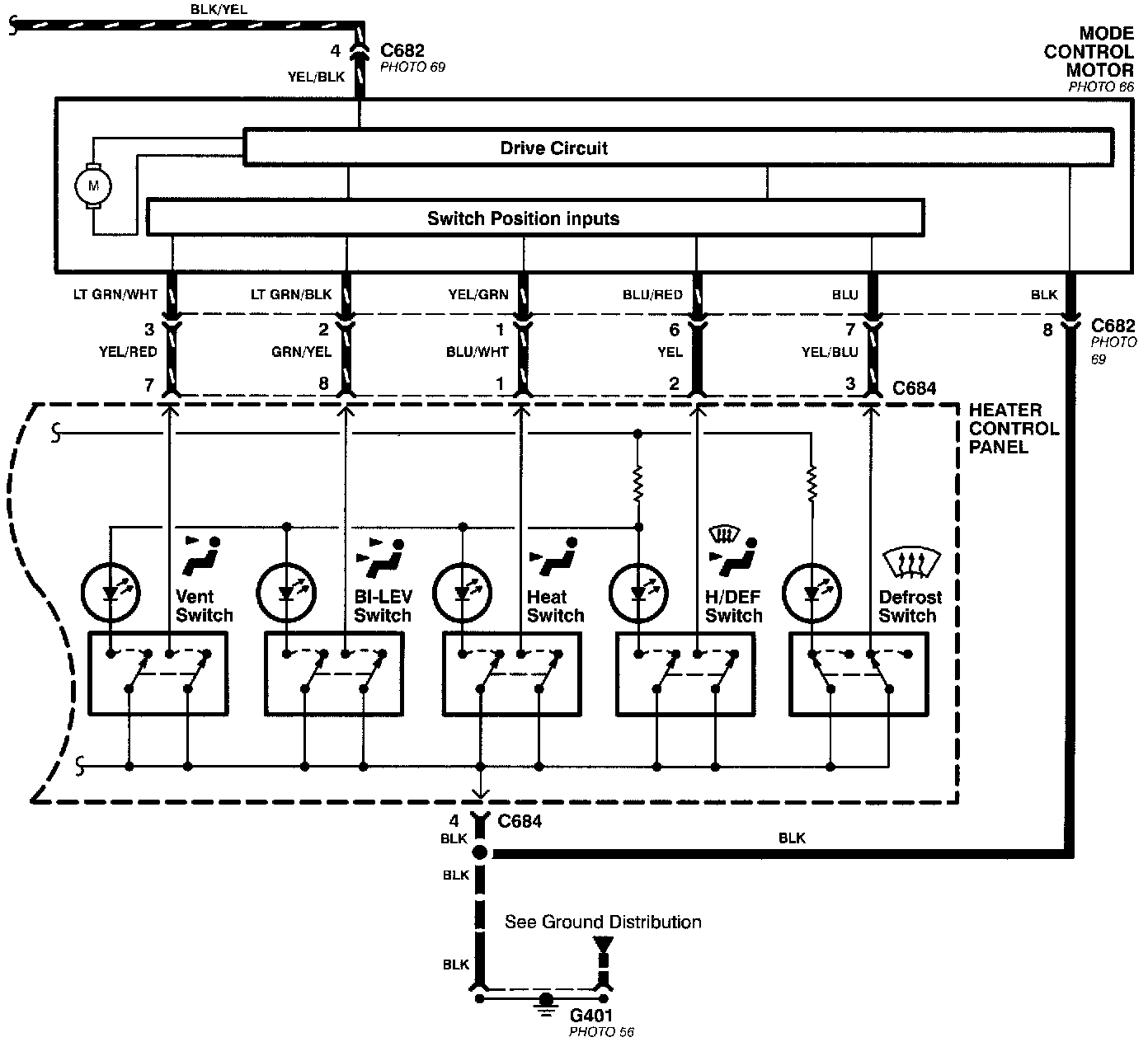

Air Delivery (Part 1 Of 2):

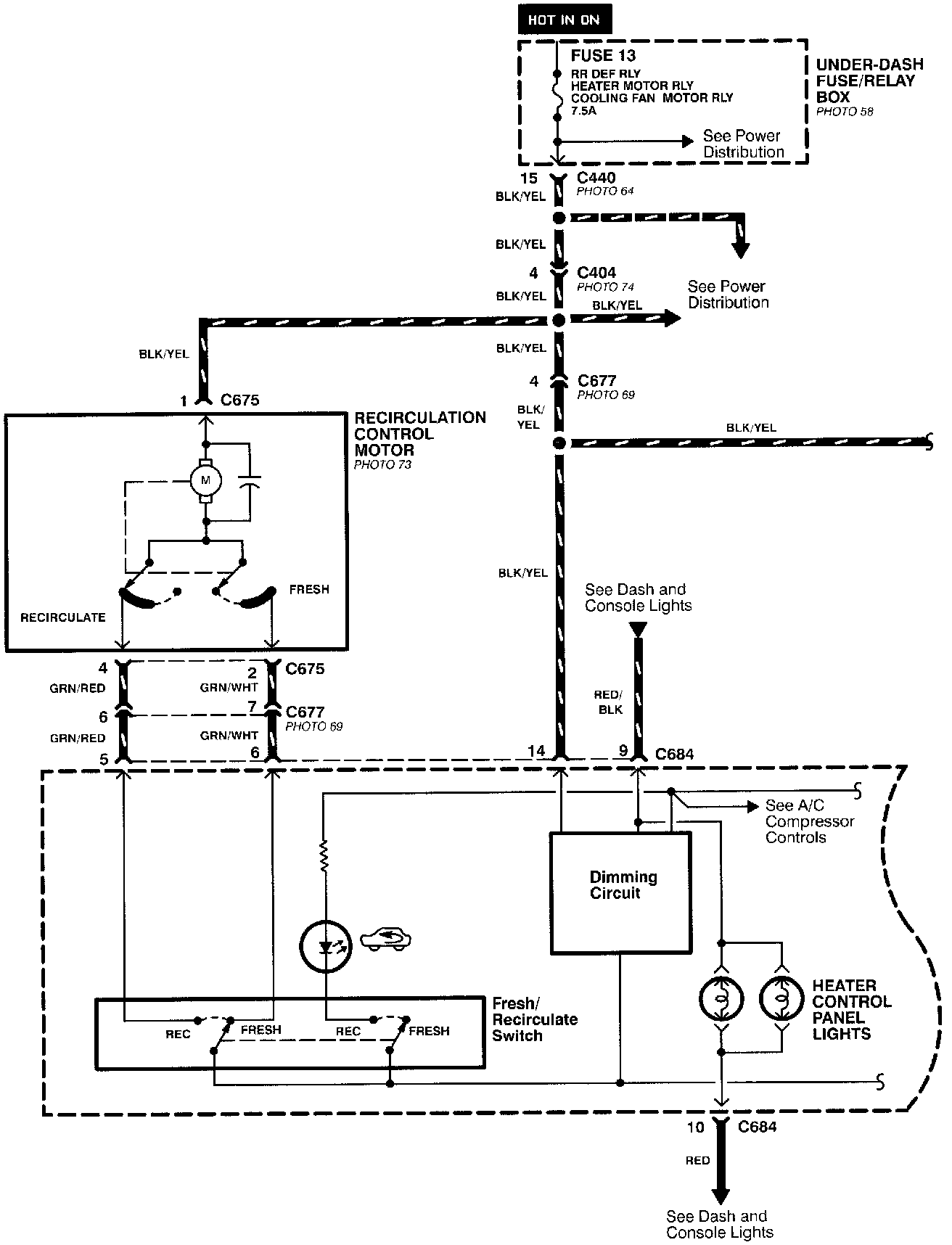

Air Delivery (Part 2 Of 2):
