Acura
>>
1995
>>
TL L5-2451cc 2.5L SOHC G25A4 FI
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Fuse Block
>>
Locations
>>
Under-Hood Fuse/Relay Box
>>
Alternate View
Alternate View

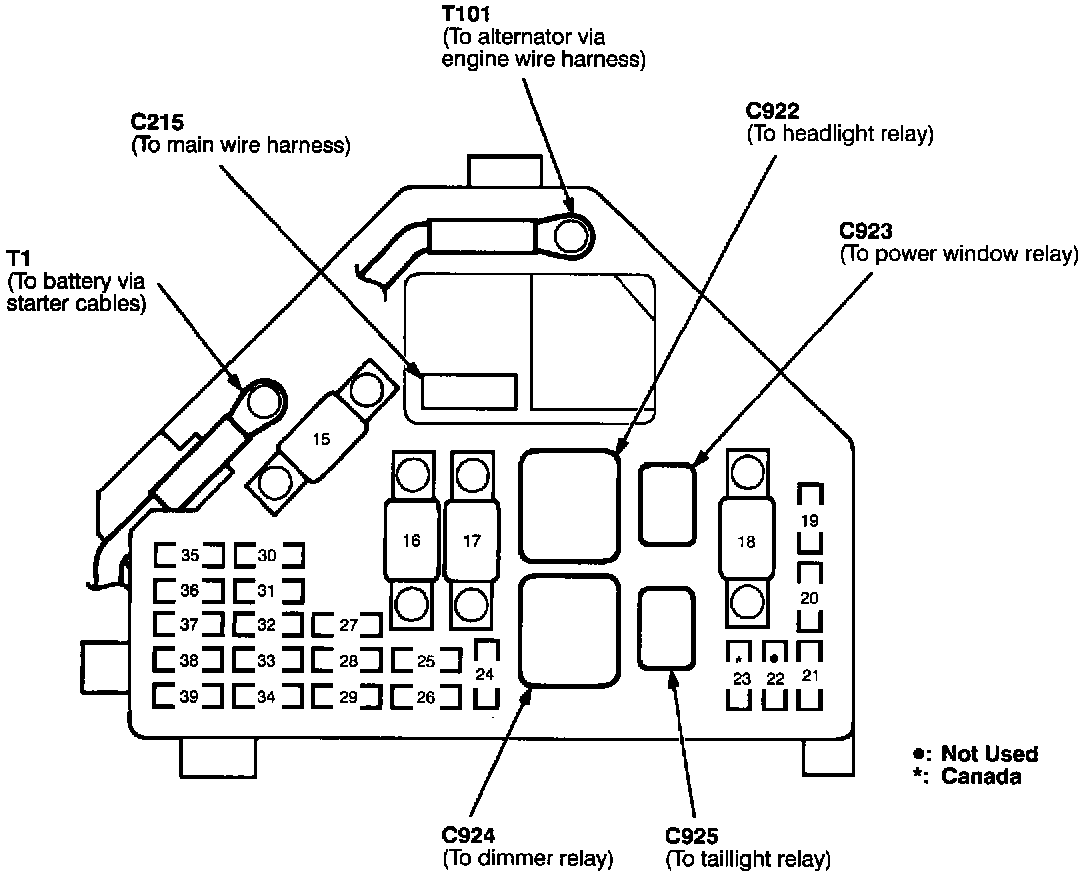

Under-hood Fuse/Relay Box (Part 1a Of 2):

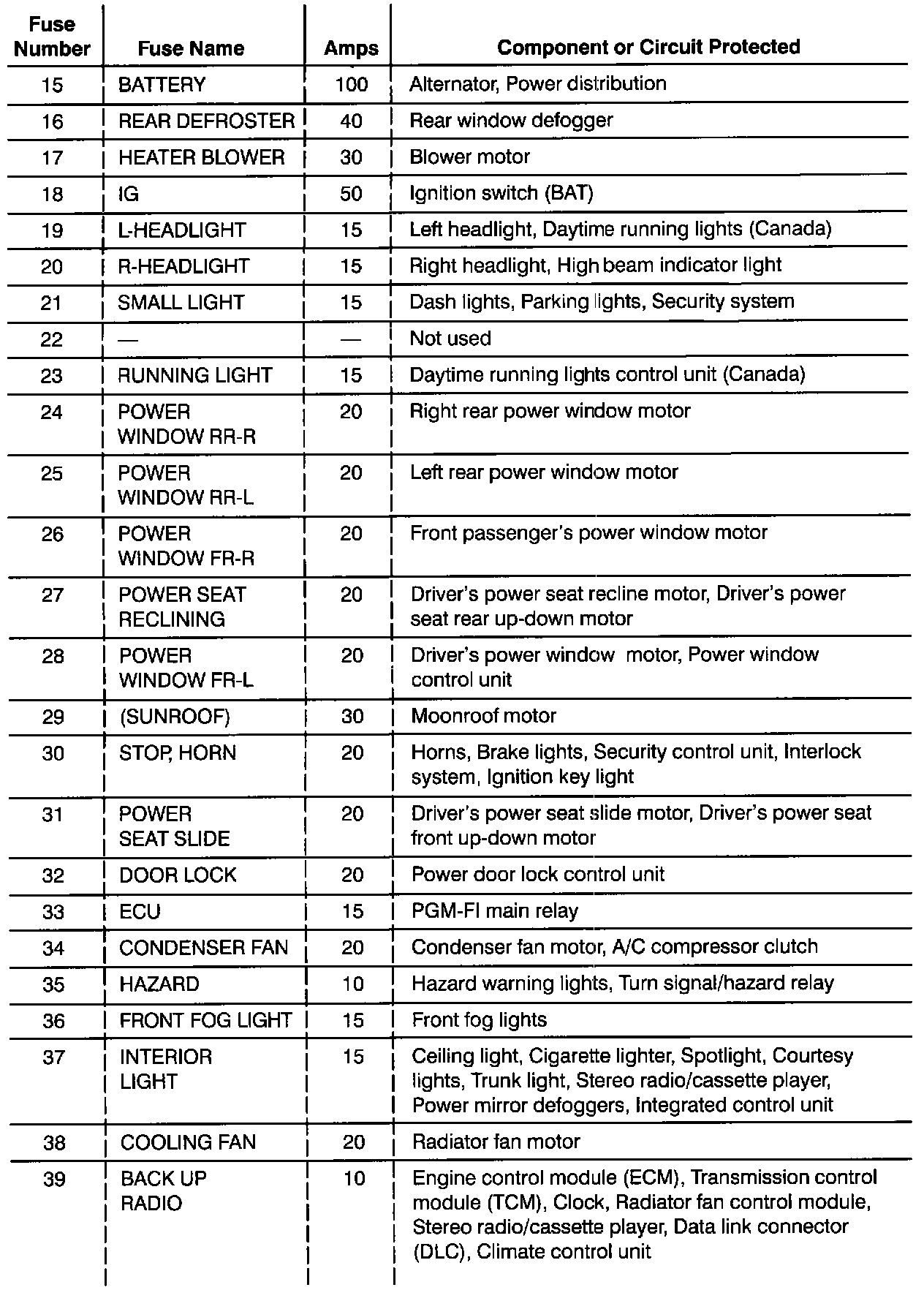

Under-hood Fuse/Relay Box (Part 1b Of 2):

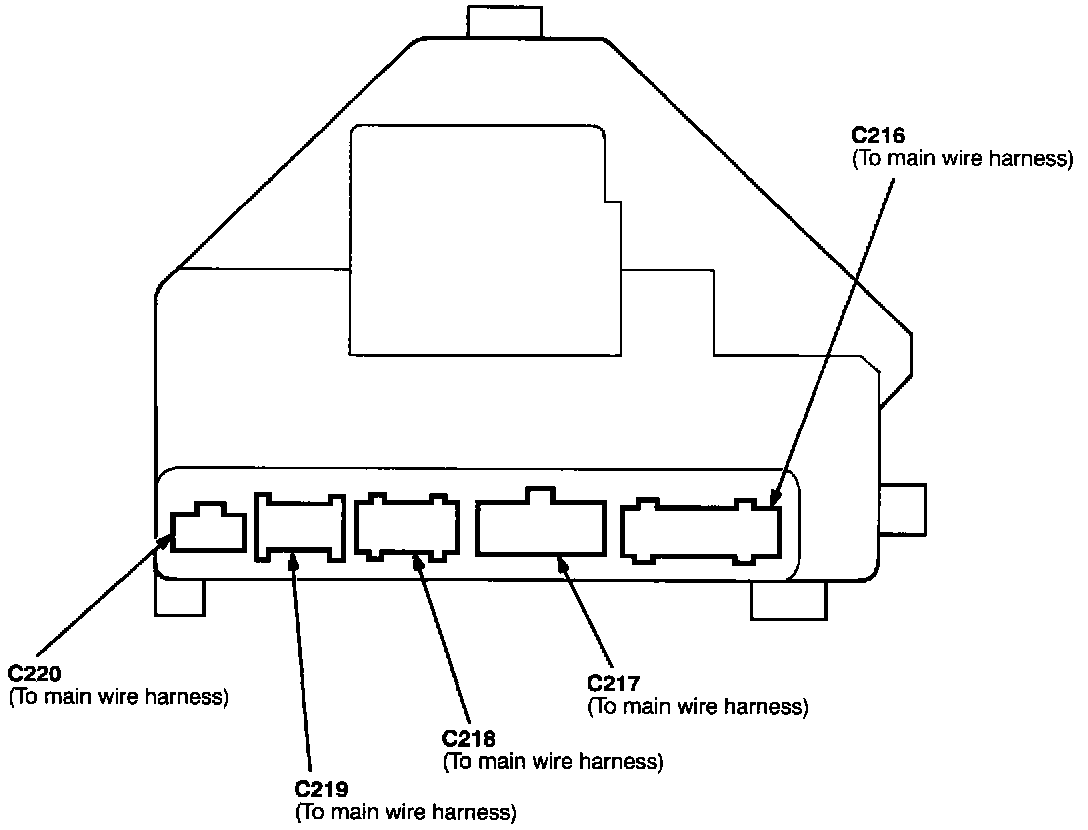

Under-hood Fuse/Relay Box (Part 2 Of 2):
