Electrical Diagrams

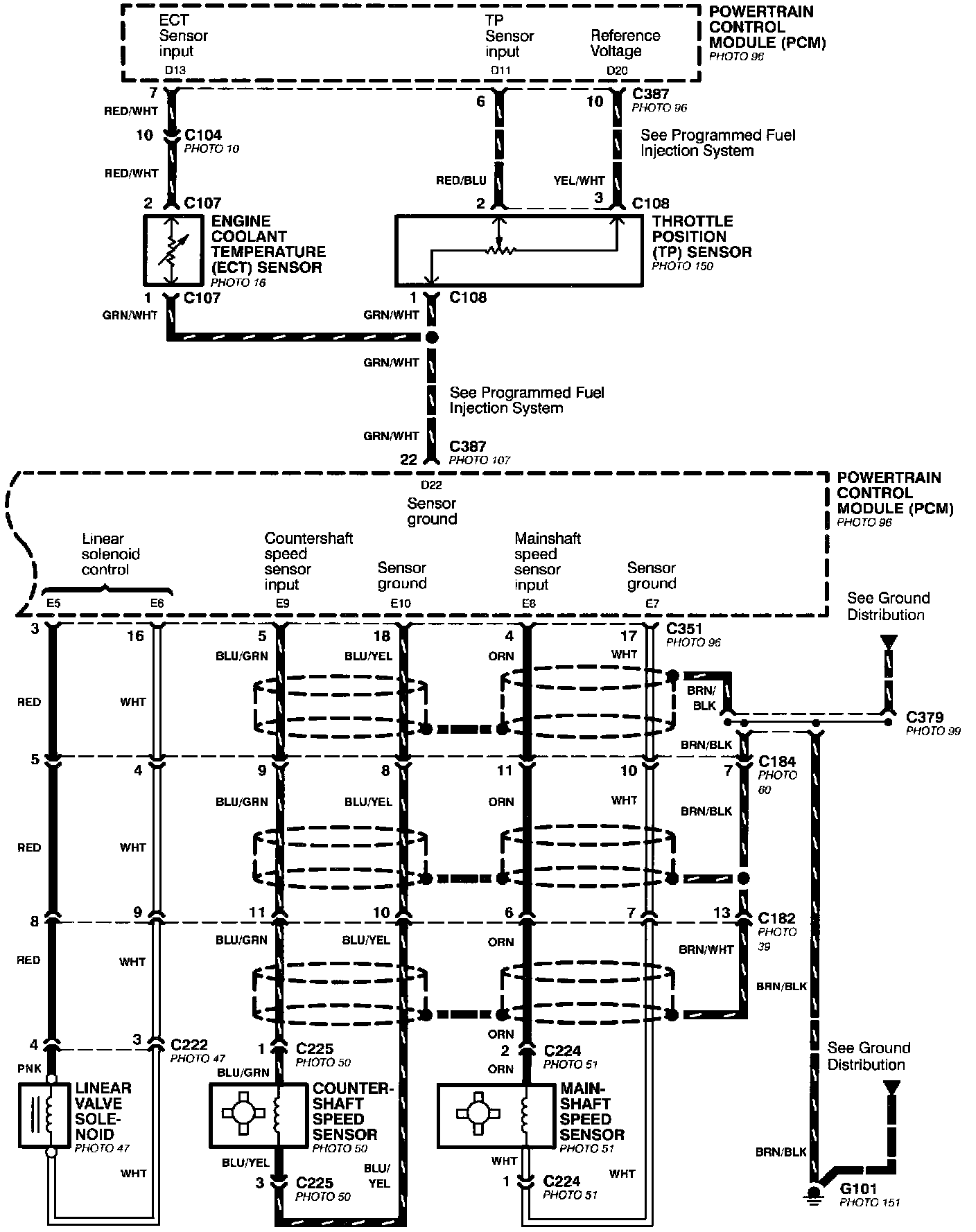

Automatic Transmission Controls (part 1 0f 4):

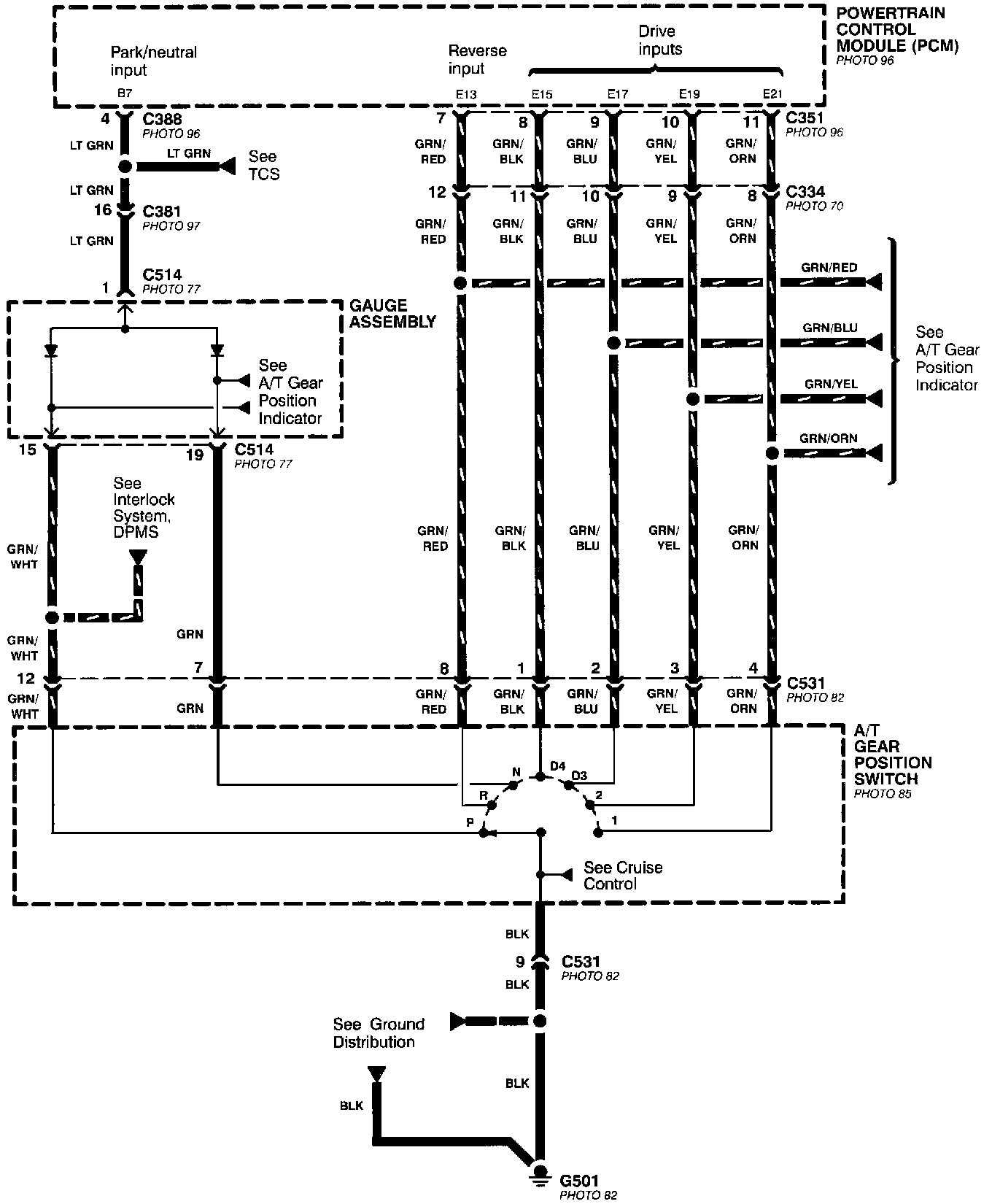

Automatic Transmission Controls (part 2 0f 4):

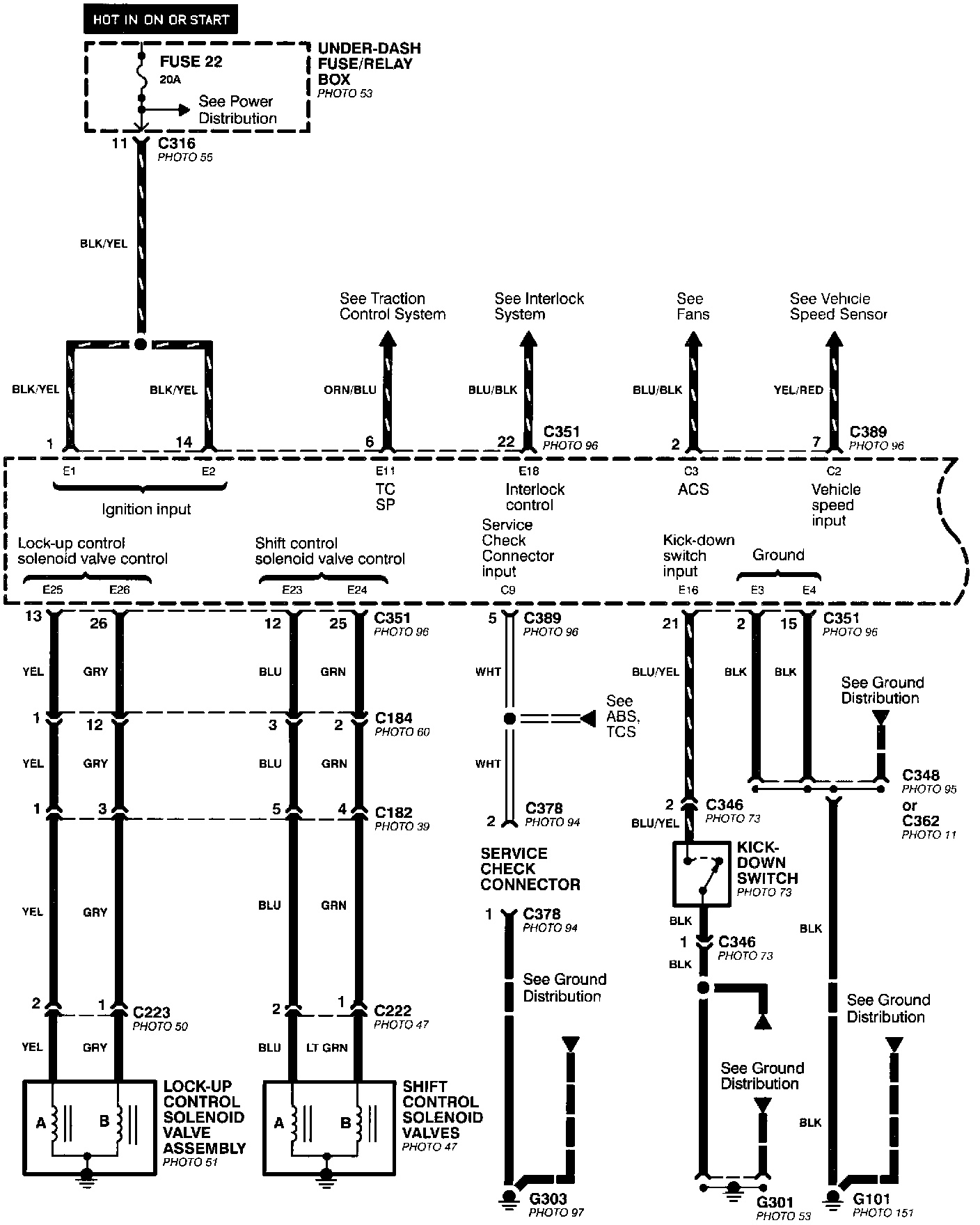

Automatic Transmission Controls (part 3 0f 4):

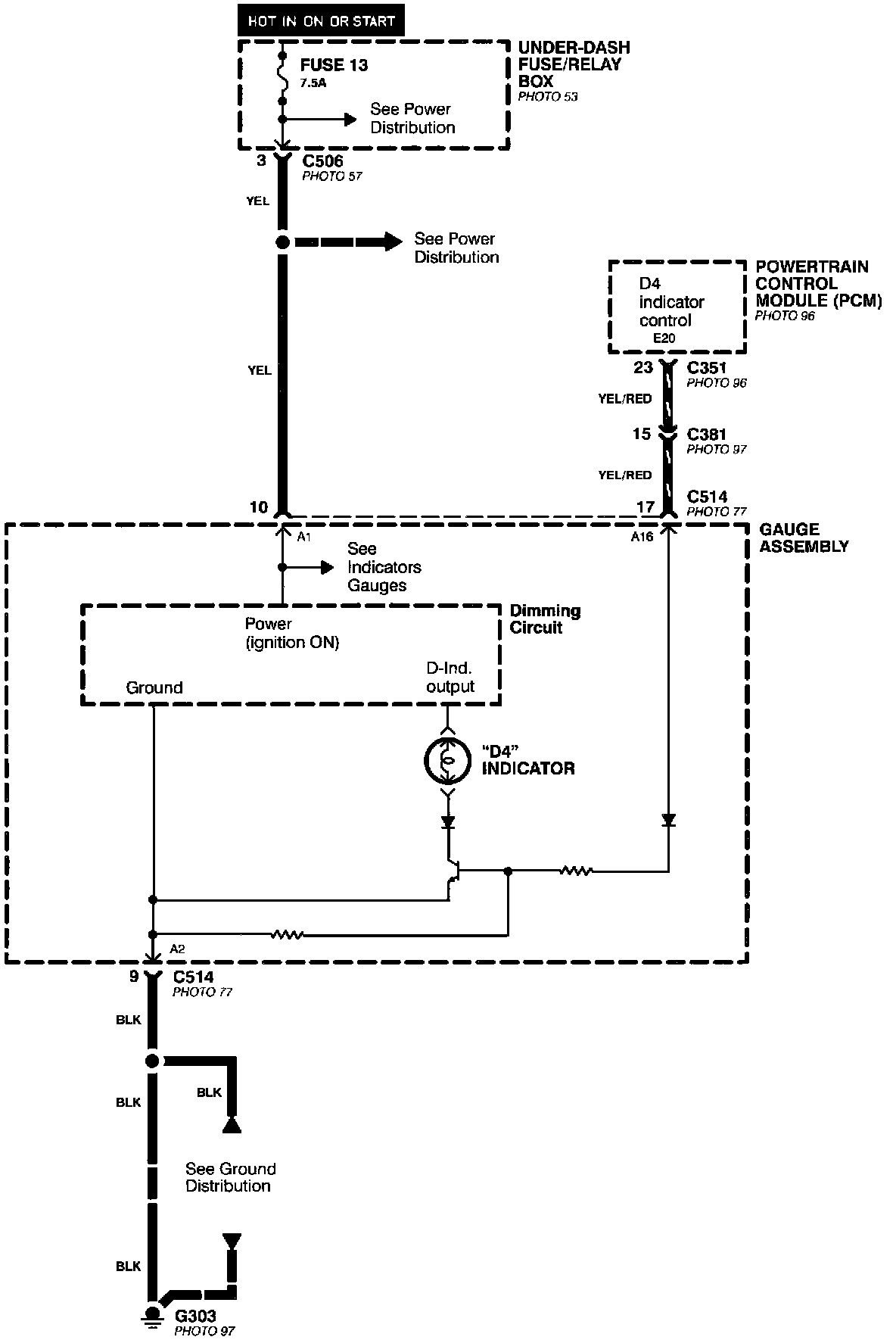

Automatic Transmission Controls (part 4 0f 4):
