Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Acura
>>
1995
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
>>
Manual A/C
>>
Compressor Controls
Compressor Controls

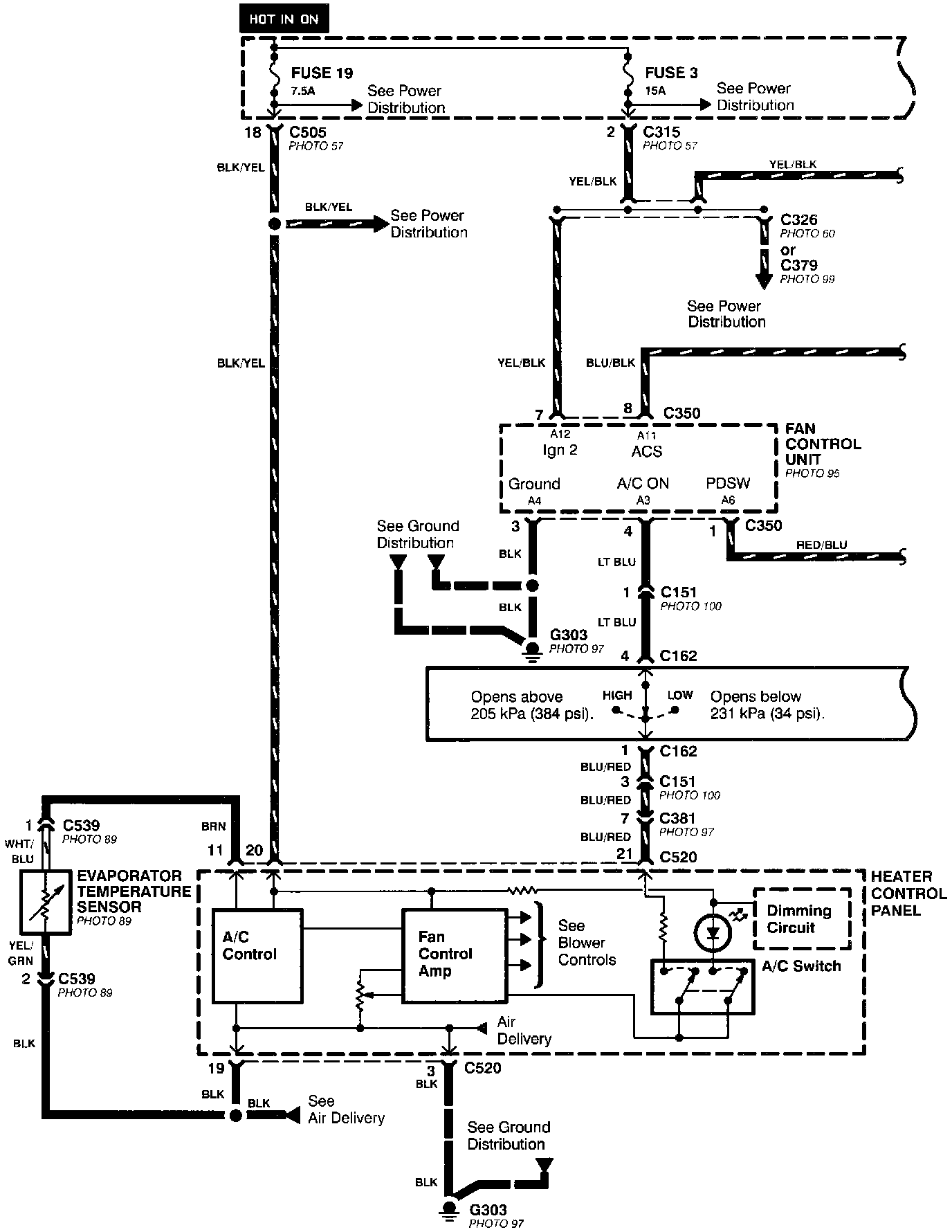

A/C Compressor Controls- Manual A/C (part 1 Of 2):

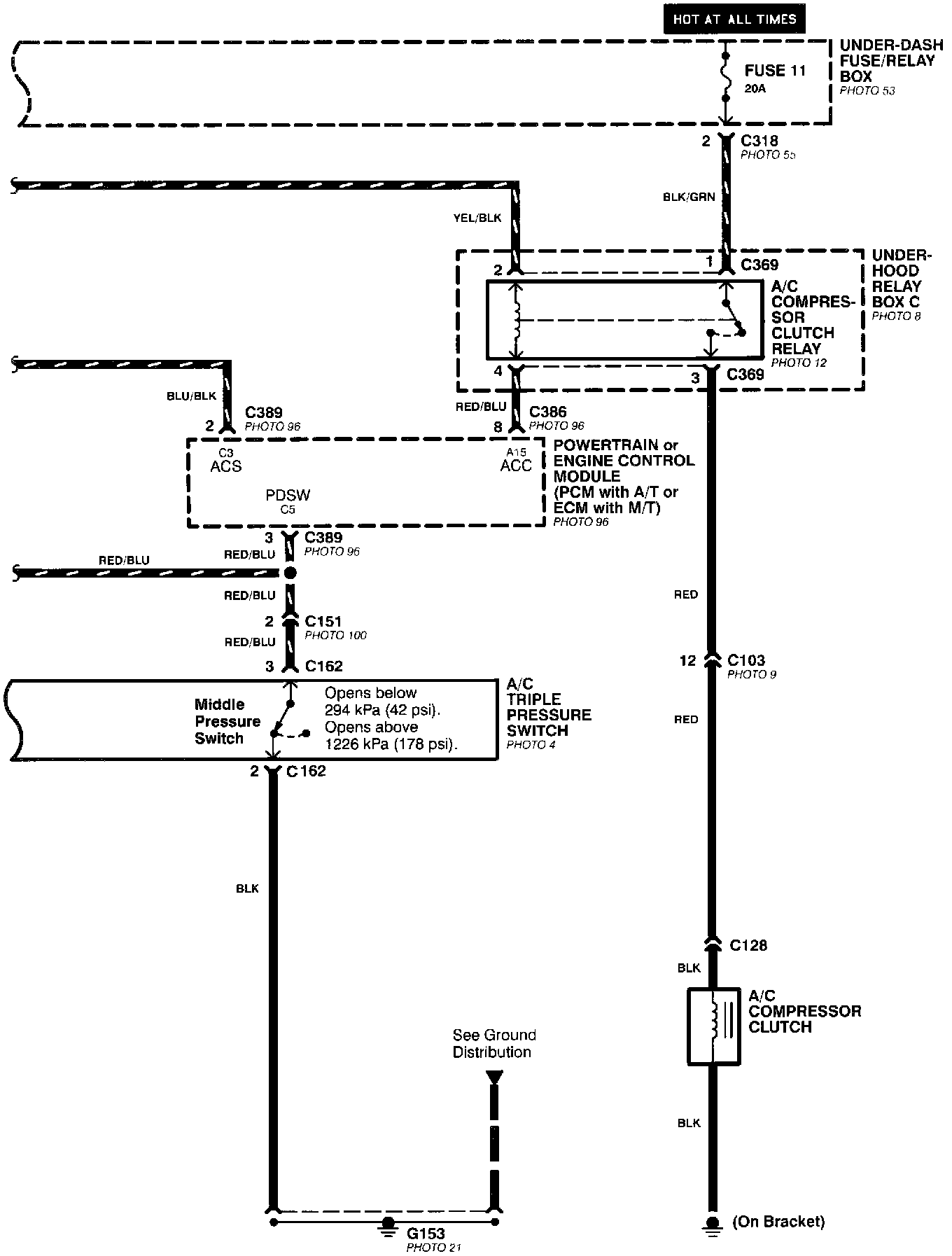

A/C Compressor Controls- Manual A/C (part 2 Of 2):
