Acura
>>
1995
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Climate Control Panel
>>
Compressor Controls
Compressor Controls

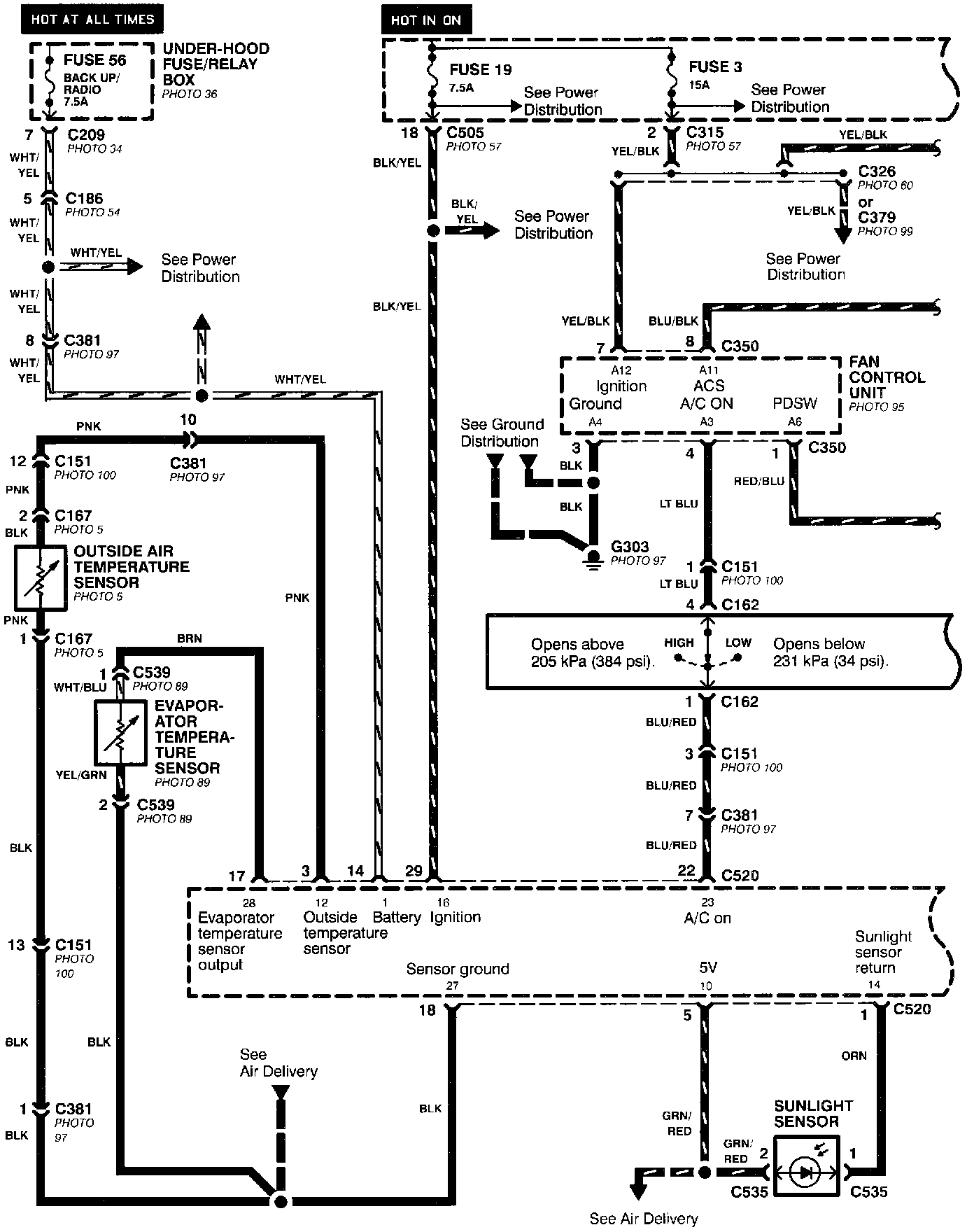

A/C Compressor Controls- Climate Control (part 1 Of 2):
A/C Compressor Controls- Climate Control (part 2 Of 2):
