Home
>>
Acura
>>
1995
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

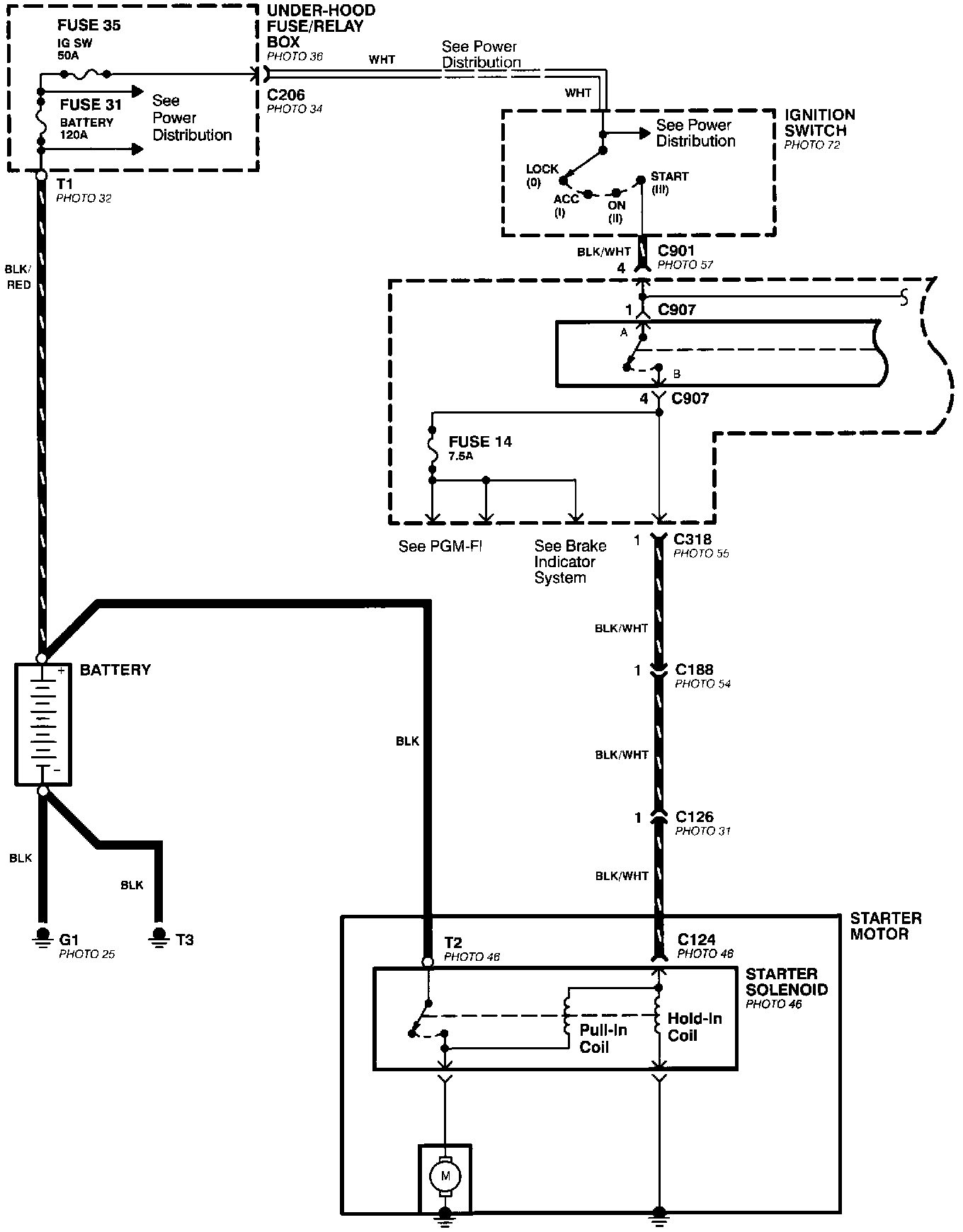

Starting System (part 1 0f 2):

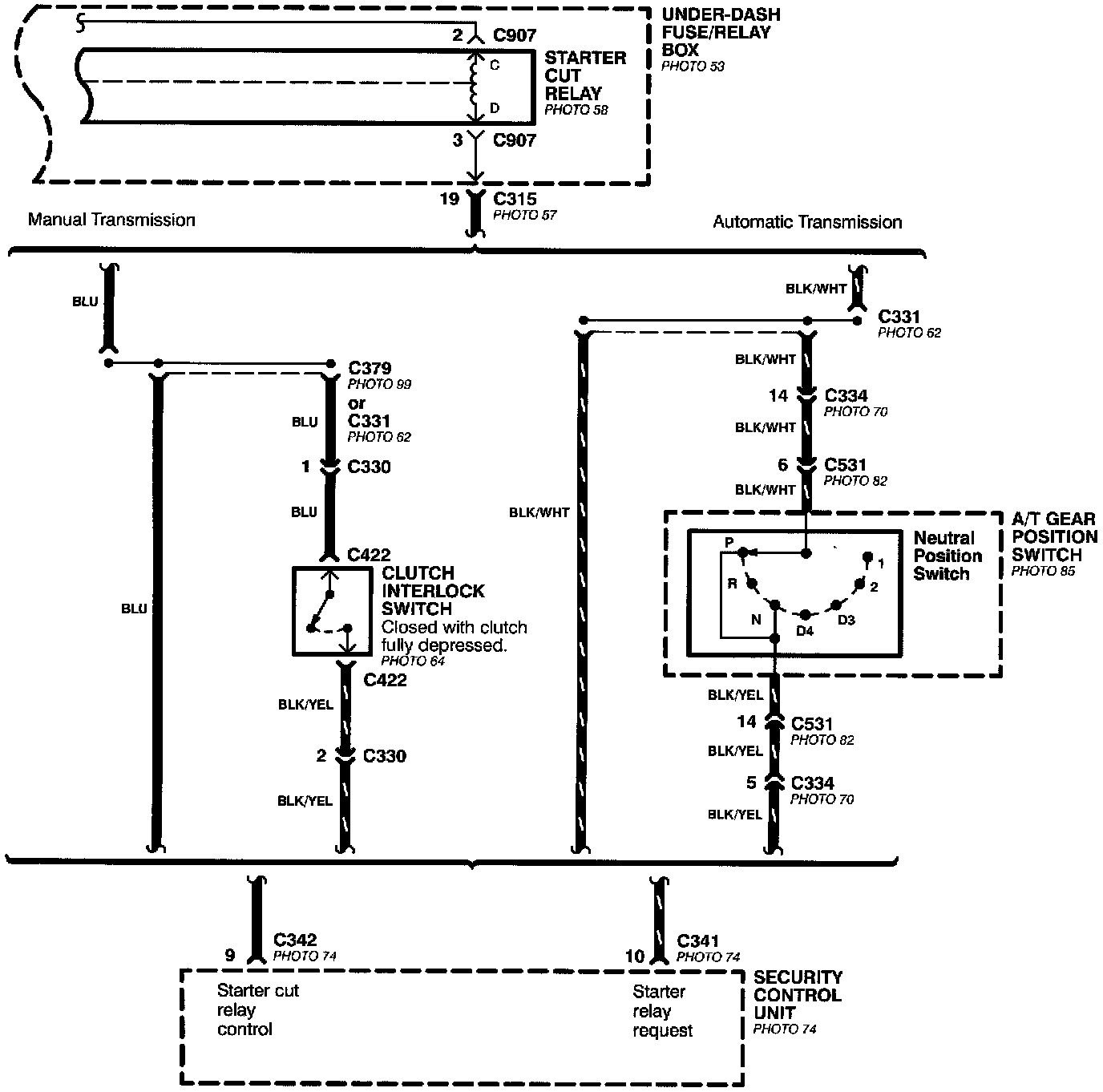

Starting System (part 2 0f 2):
