Programmed Fuel Injection System (PGM-FI)
>>
Malfunction Indicator Light, Tachometer and Vehicle Data Sensor
Malfunction Indicator Light, Tachometer and Vehicle Data Sensor

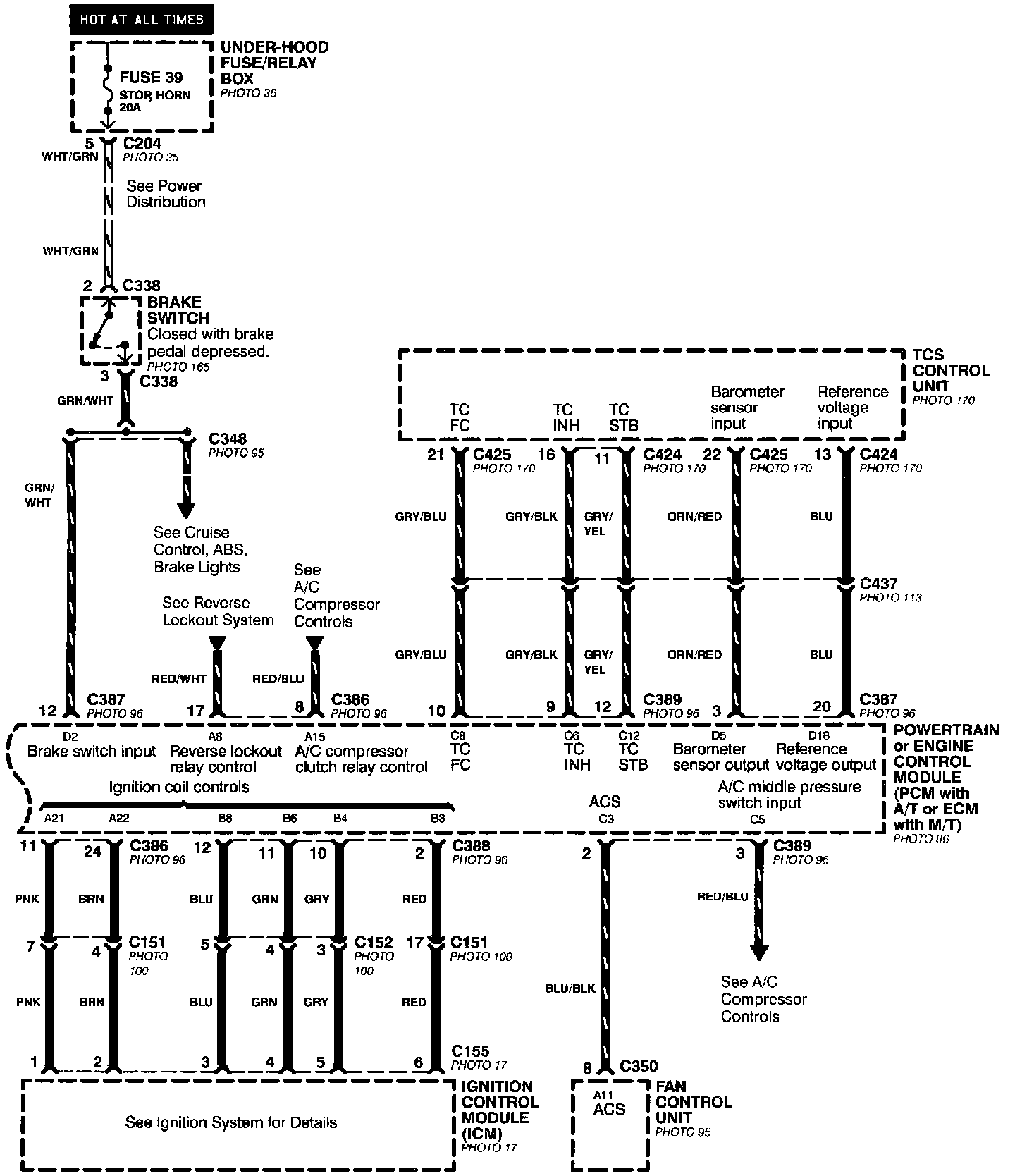

Programmed Fuel Injection System (PGM-FI)- Malfunction Indicator Light (MIL), Tachometer, and Vehicle Data Sensors:
