Home >> Acura >> 1995 >> Legend Coupe V6-3206cc 3.2L SOHC FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System

Ignition System

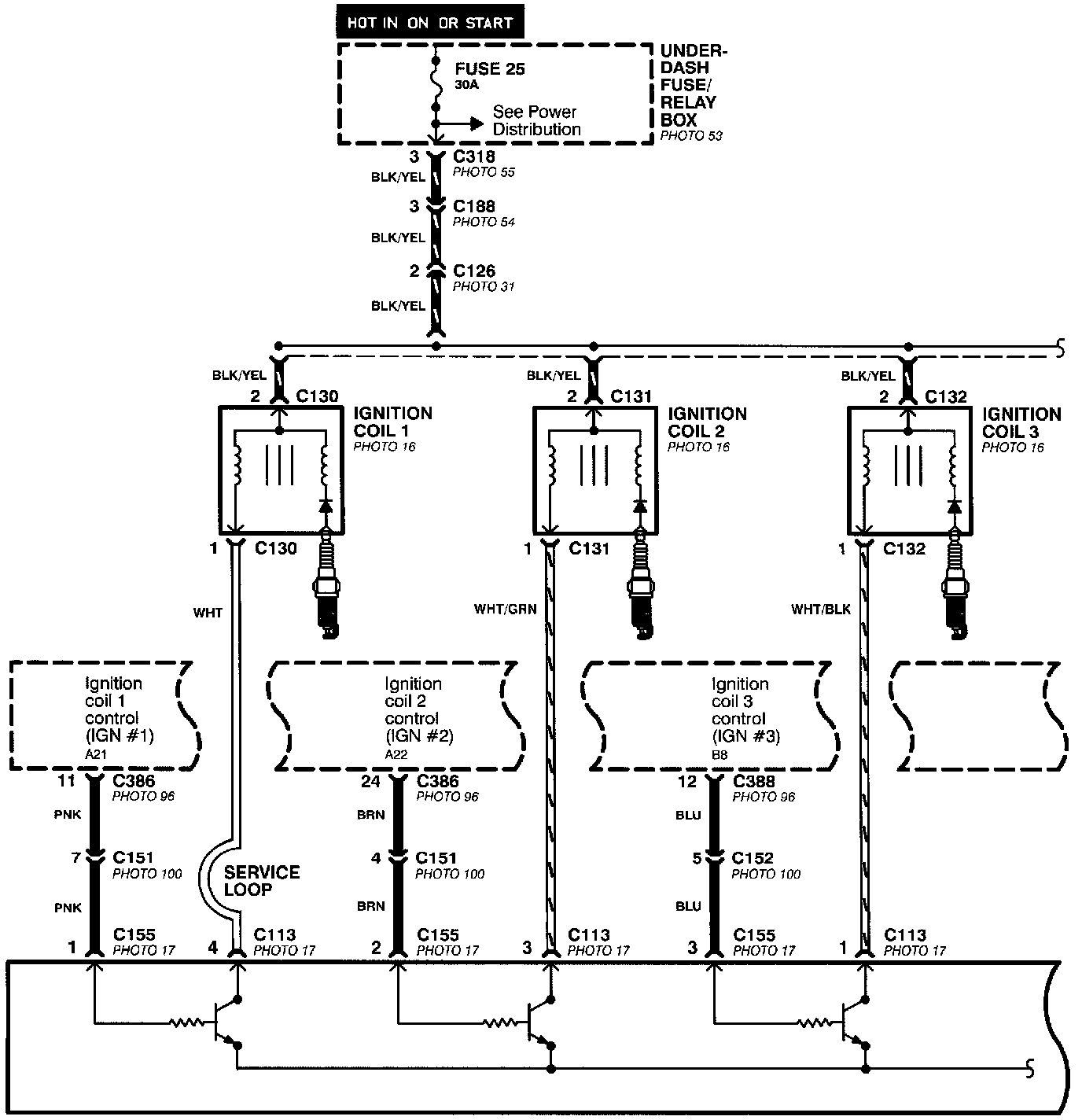

Ignition System (part 1of 2):

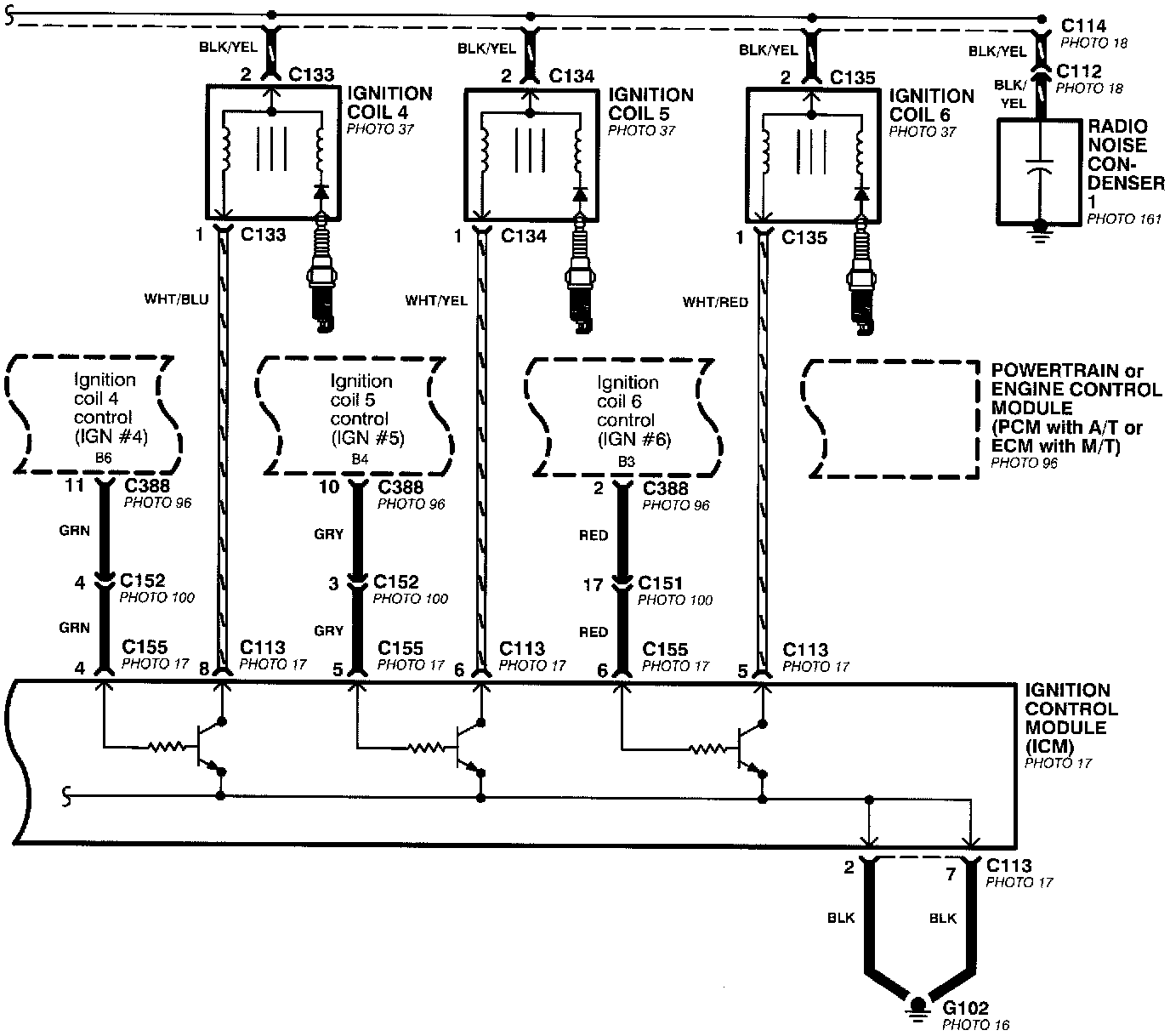

Ignition System (part 2 of 2):
