Traction Control System (TCS)

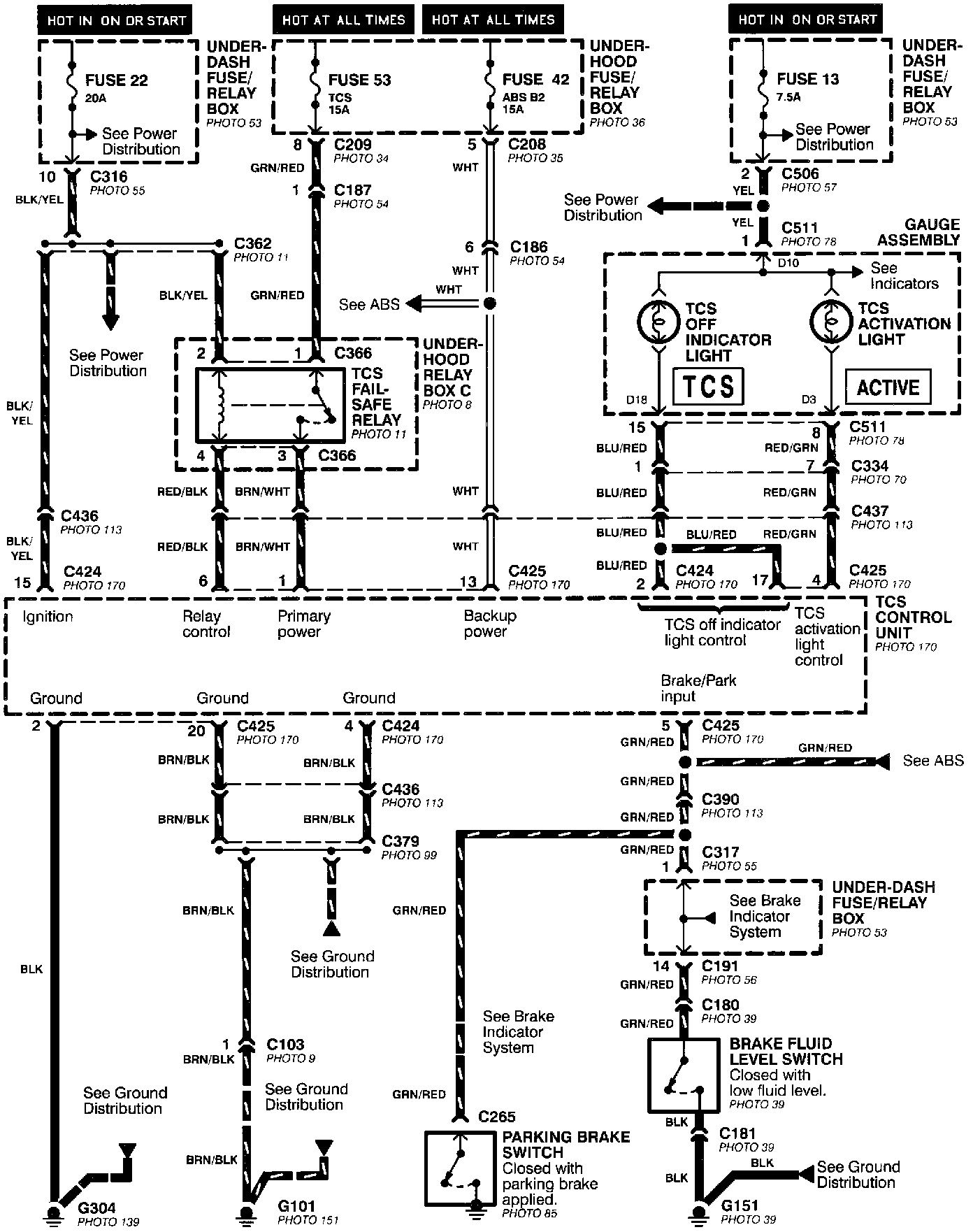

Traction Control System (TCS) (part 1 Of 4):

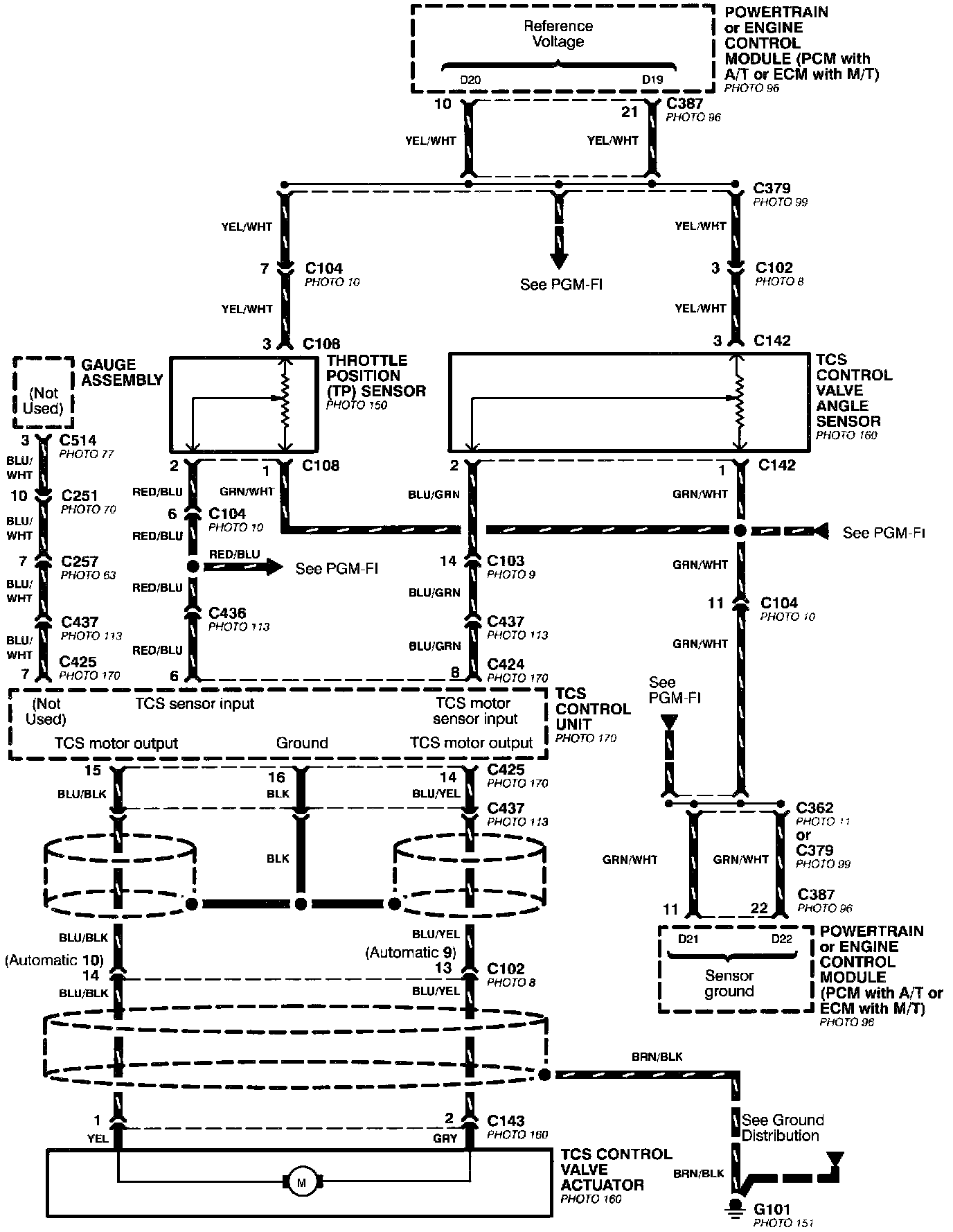

Traction Control System (TCS) (part 2 Of 4):

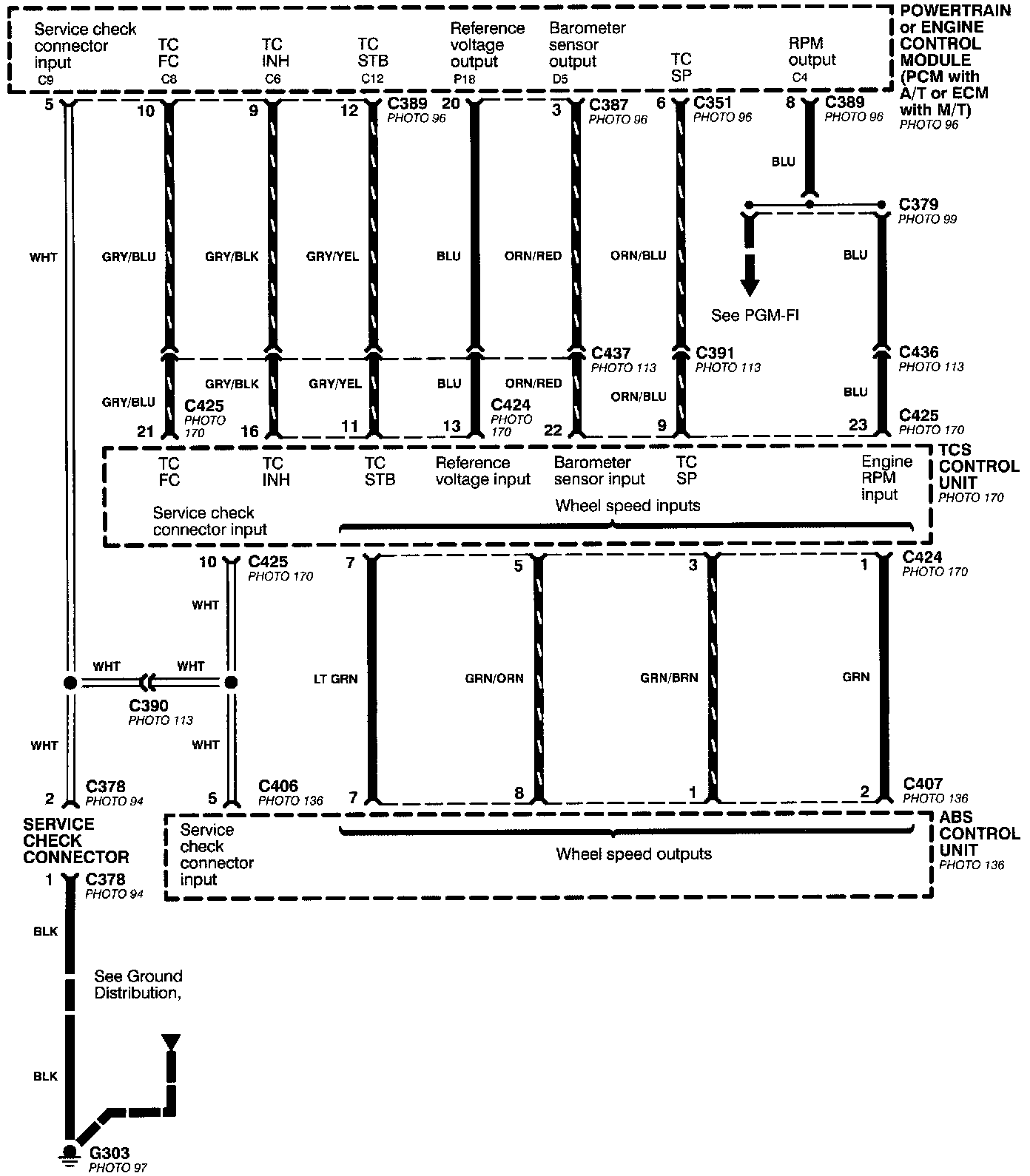

Traction Control System (TCS) (part 3 Of 4):




Traction Control System (TCS) (part 4 Of 4):
