Headlight Switch

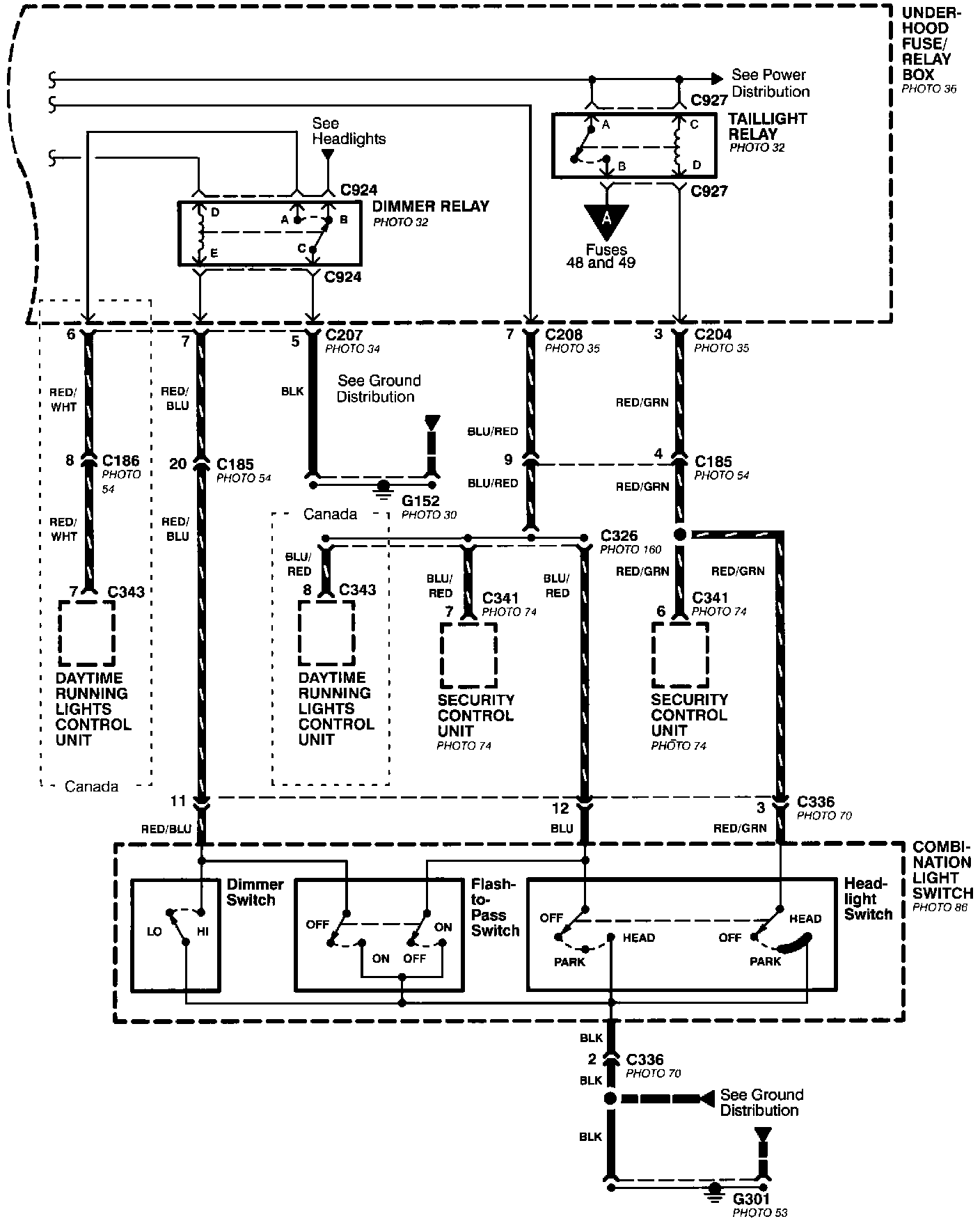

Headlight Switch (part 1 Of 5):
Headlight Switch (part 2 Of 5):

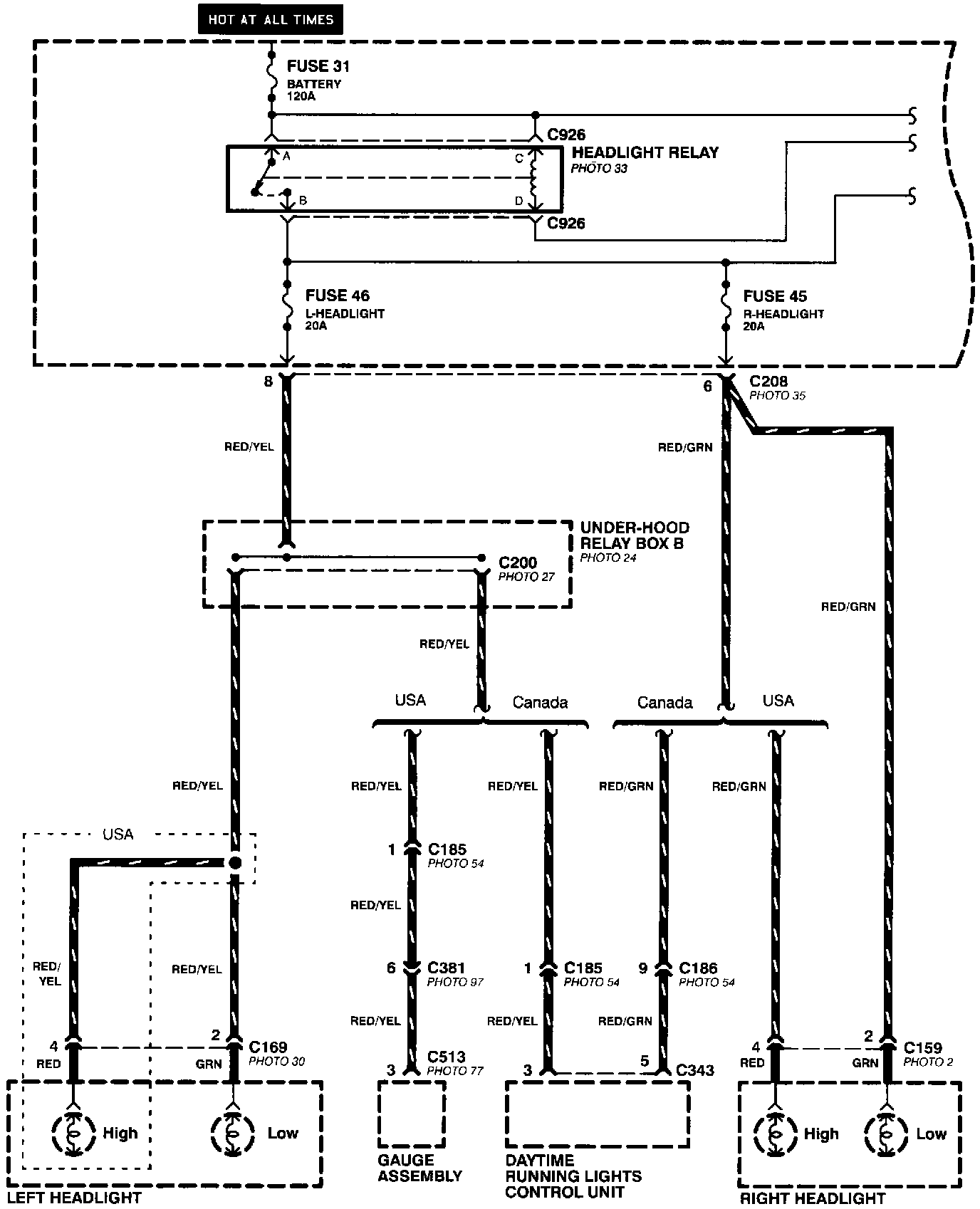

Headlight Switch (part 3 Of 5):

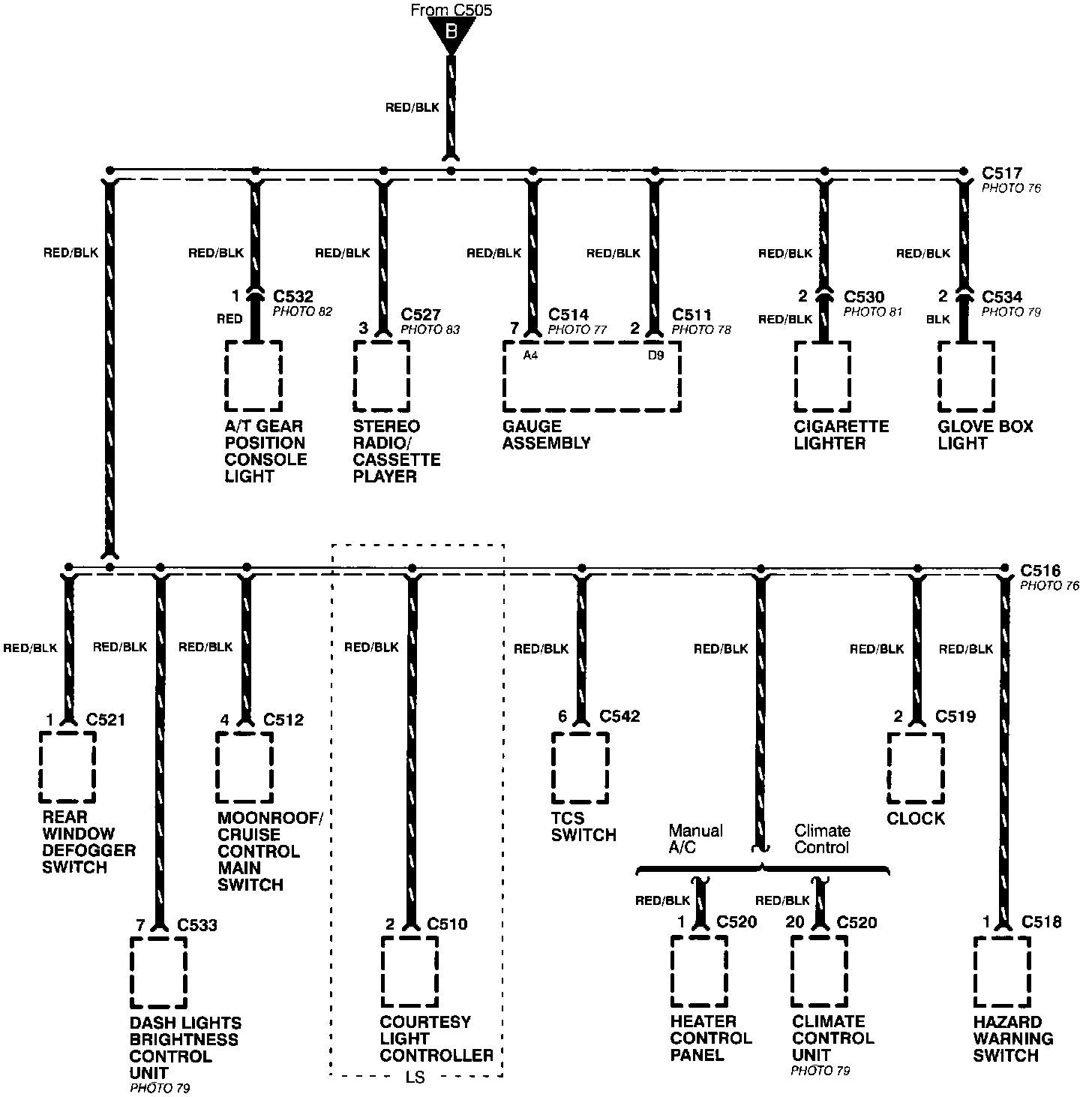

Headlight Switch (part 4 Of 5):

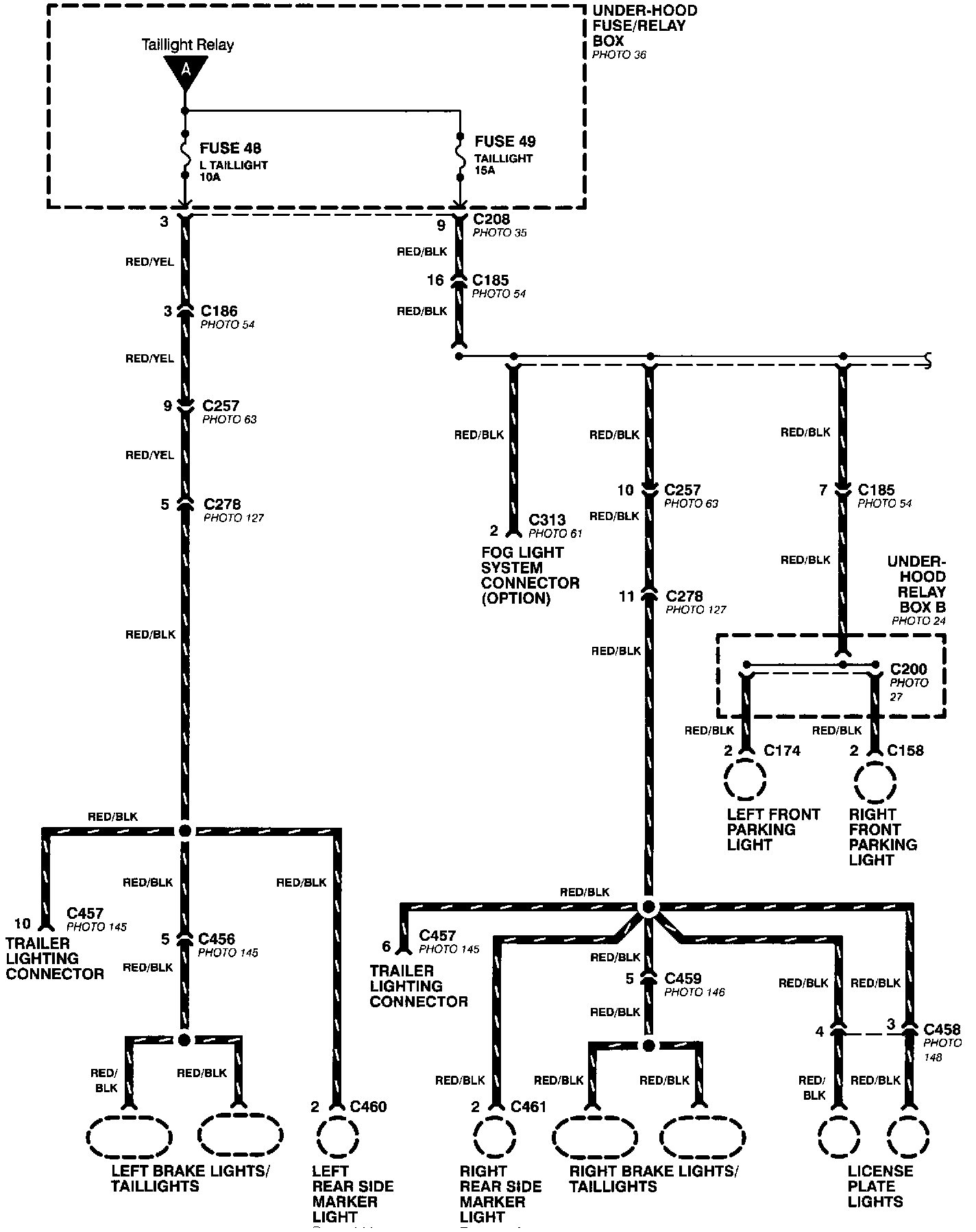

Headlight Switch (part 5 Of 5):
