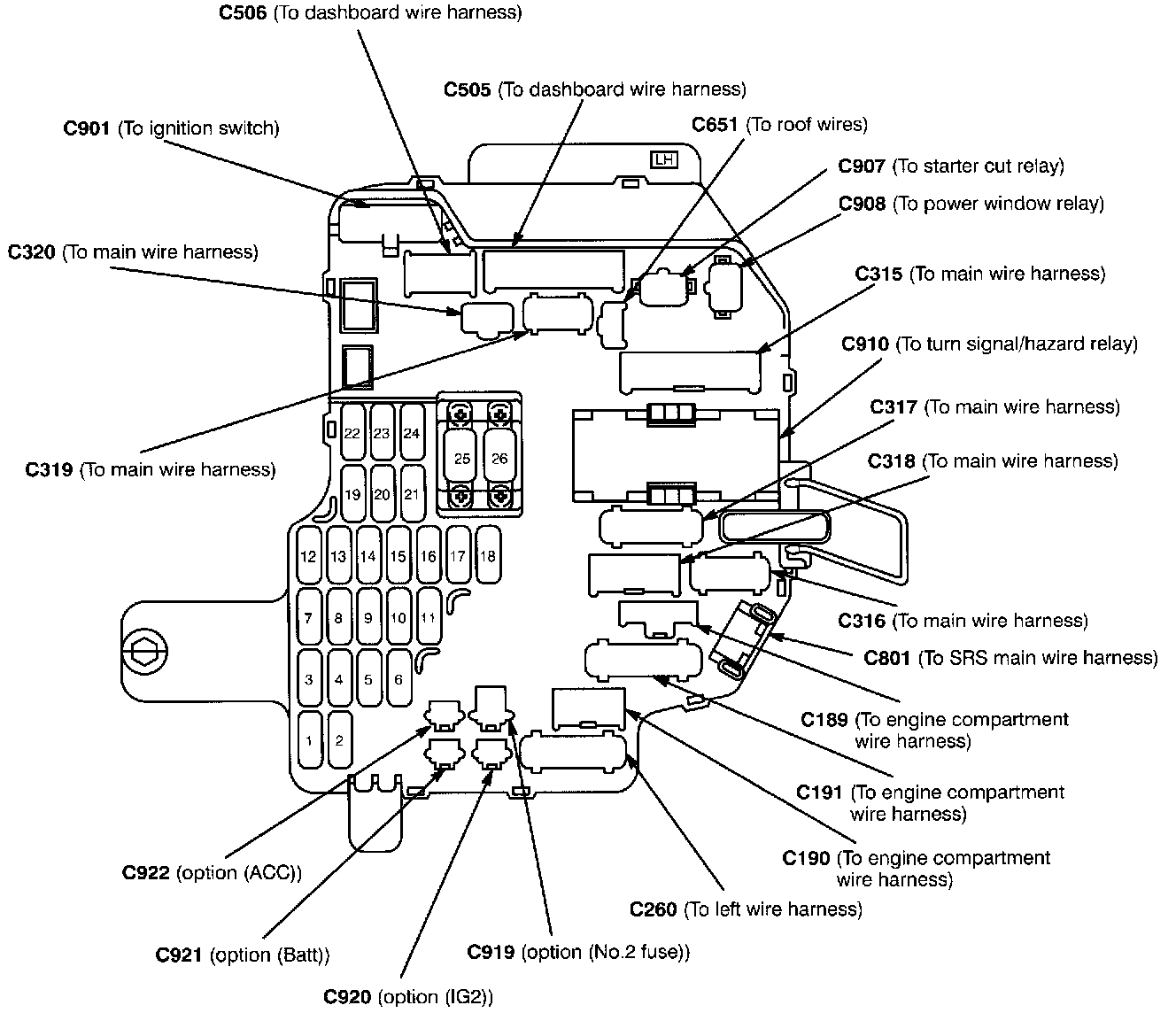

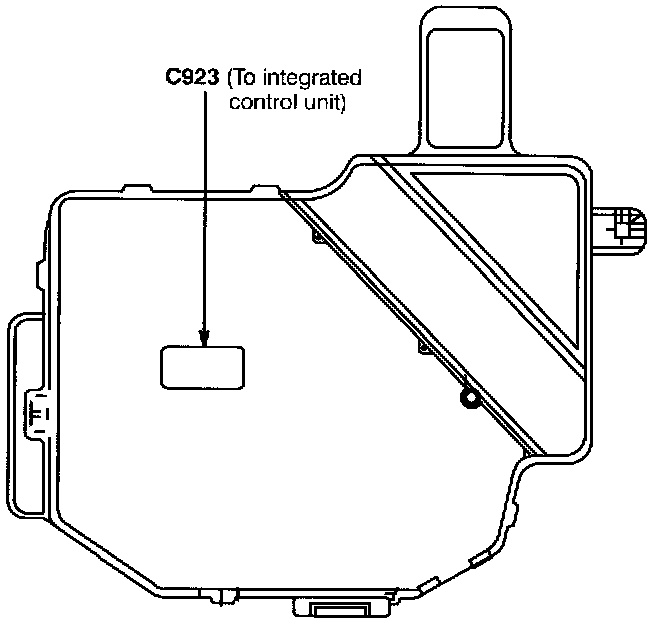

Under-Dash Fuse Box

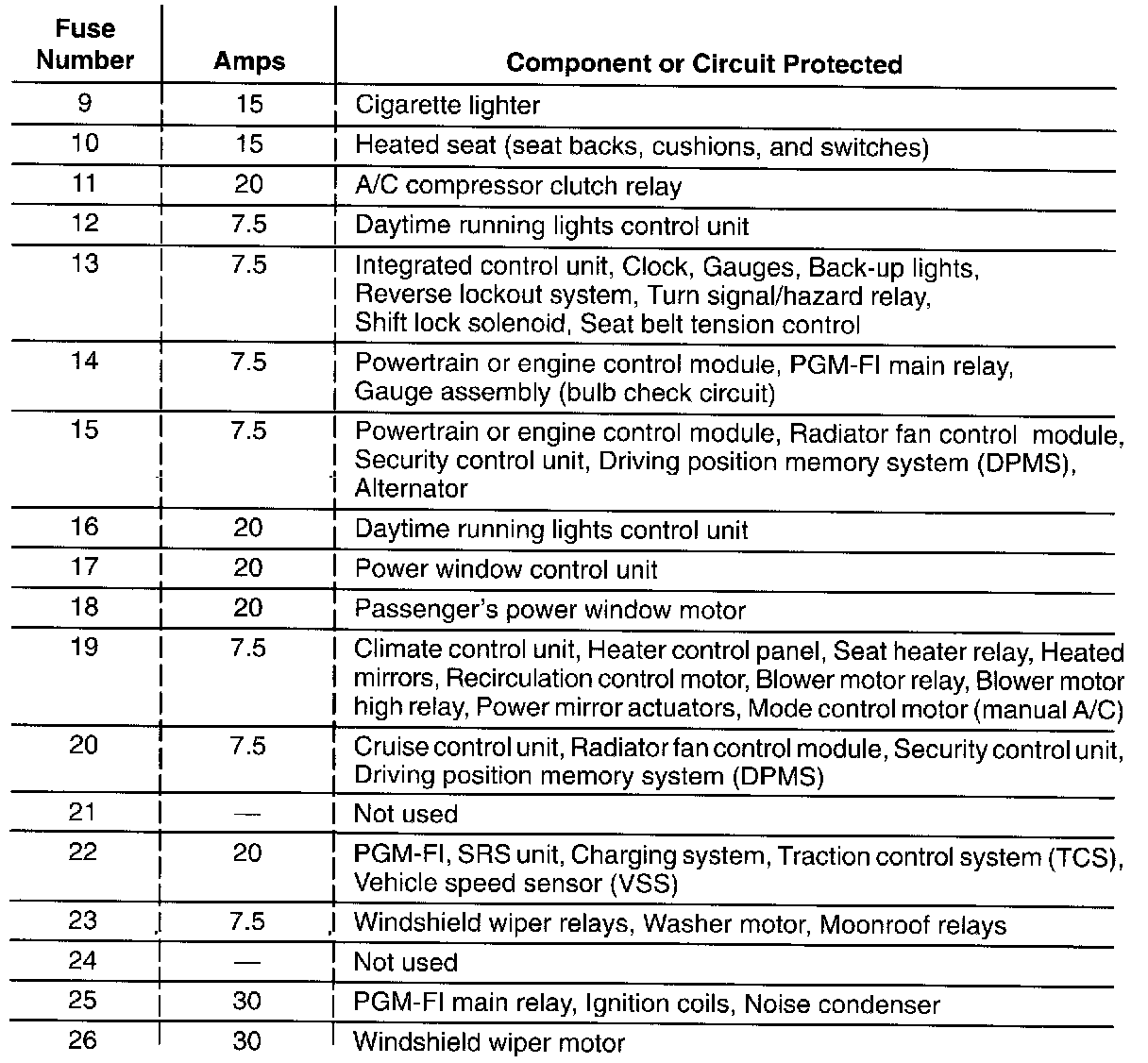

Fuse/Relay Information- Under-dash Fuse Box (part 1a Of 2):

Fuse/Relay Information- Under-dash Fuse Box (part 1a Of 2):

Fuse/Relay Information- Under-dash Fuse Box (part 2a Of 2):

Fuse/Relay Information- Under-dash Fuse Box (part 2b Of 2):
