DTC 3-1

NOTE: The ECM or PCM outputs the TC/HN signal to the TCS control unit when the correct TC STB and TC FC signals have been inputted to the ECM or PCM from the TCS control unit.

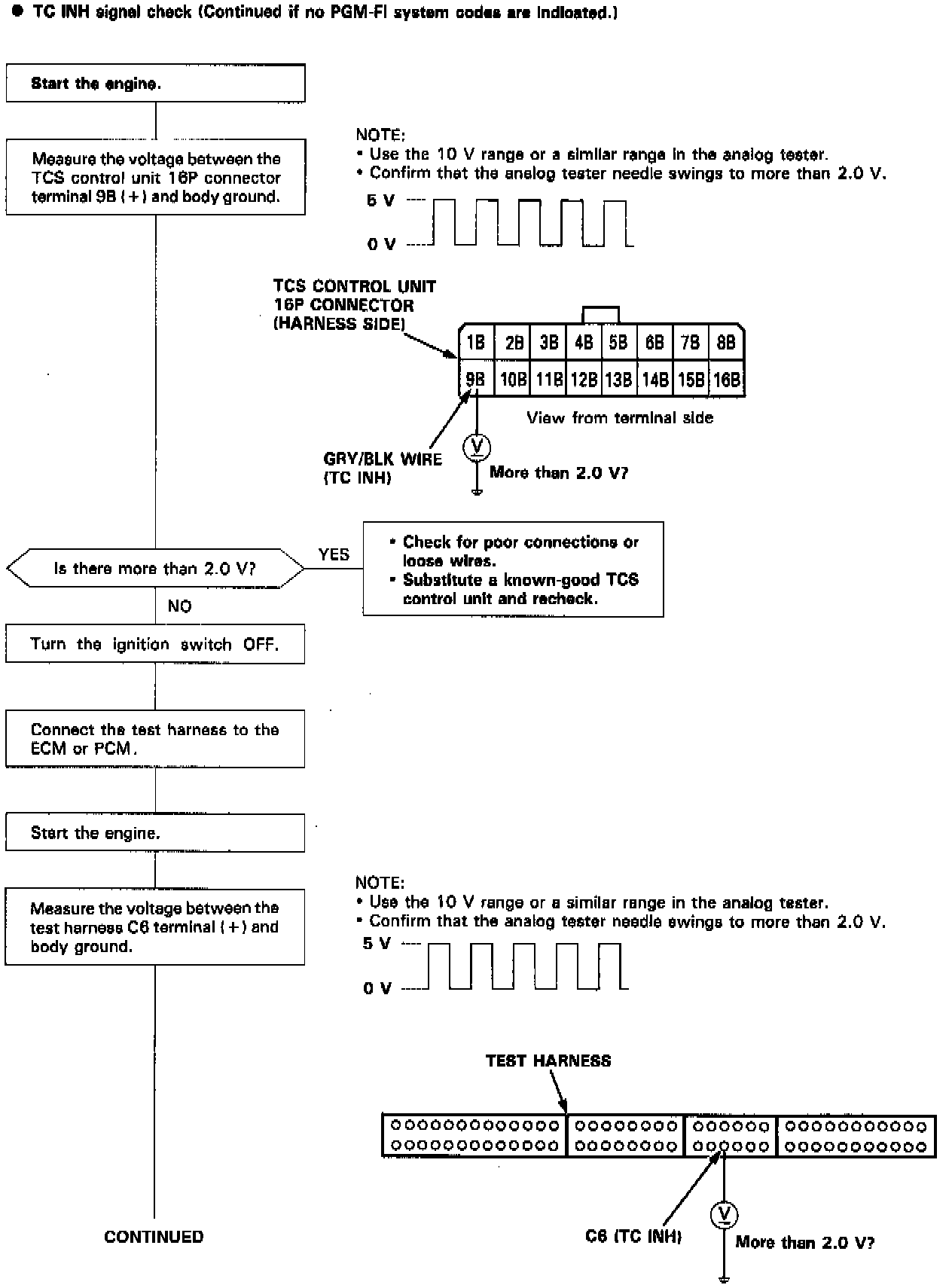

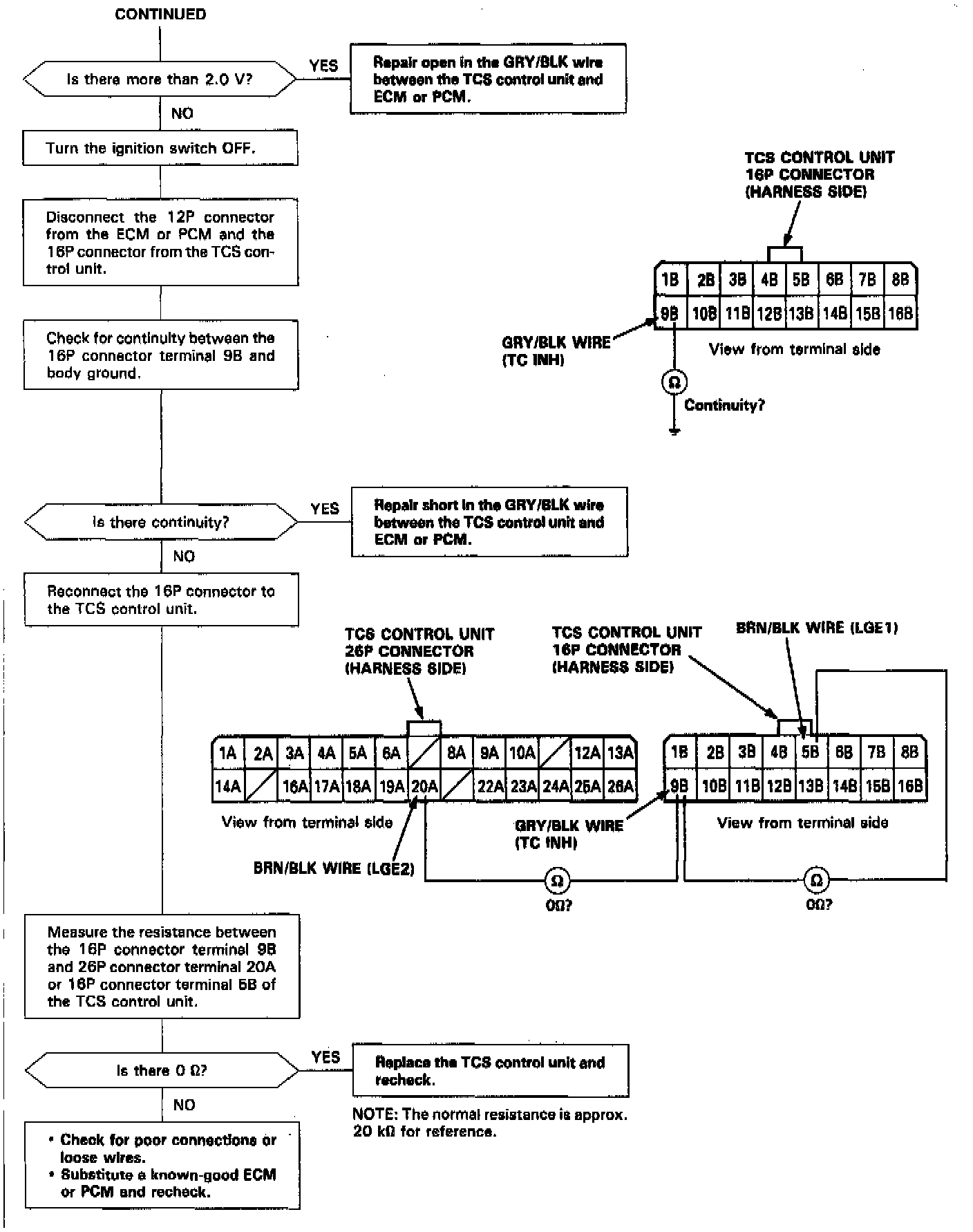

TC /HN signal check (Continued if no PGM-FI system codes are indicated.)
