Blower Motor: Service and Repair
BLOWER MOTOR REPLACEMENT1. Remove the heater-evaporator assembly. Refer to Evaporator Case.
Evaporator Case

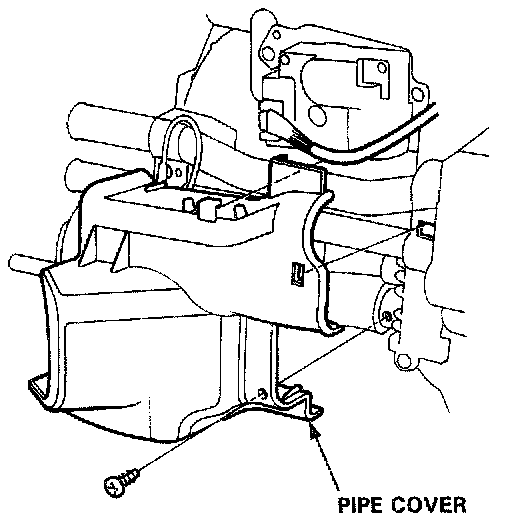

2. Remove the mounting screw, then remove the pipe cover.
3. Remove the mounting screws. then remove the pipe clamp and pipe cover.

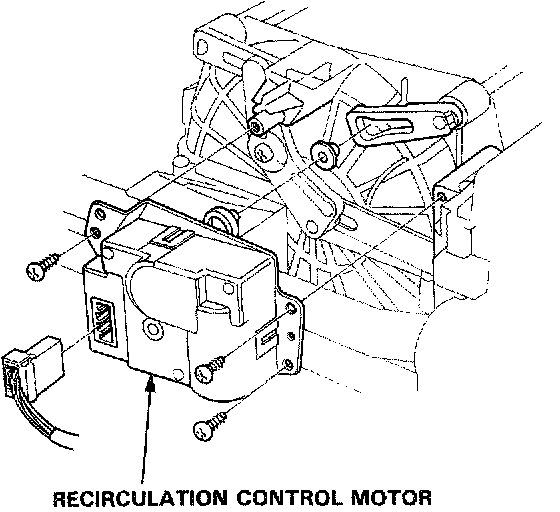

4. Disconnect the recirculation control motor connector.
Remove the mounting screws, then remove the recirculation control motor.

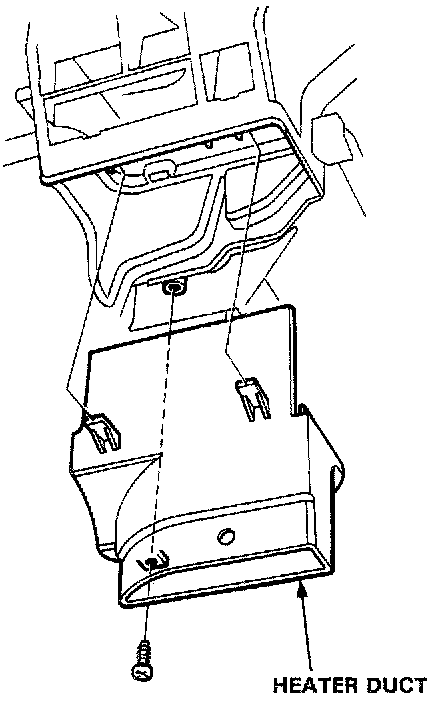

5. Remove the mounting screw, then remove the left side heater duct.
6. Disconnect the blower motor connector

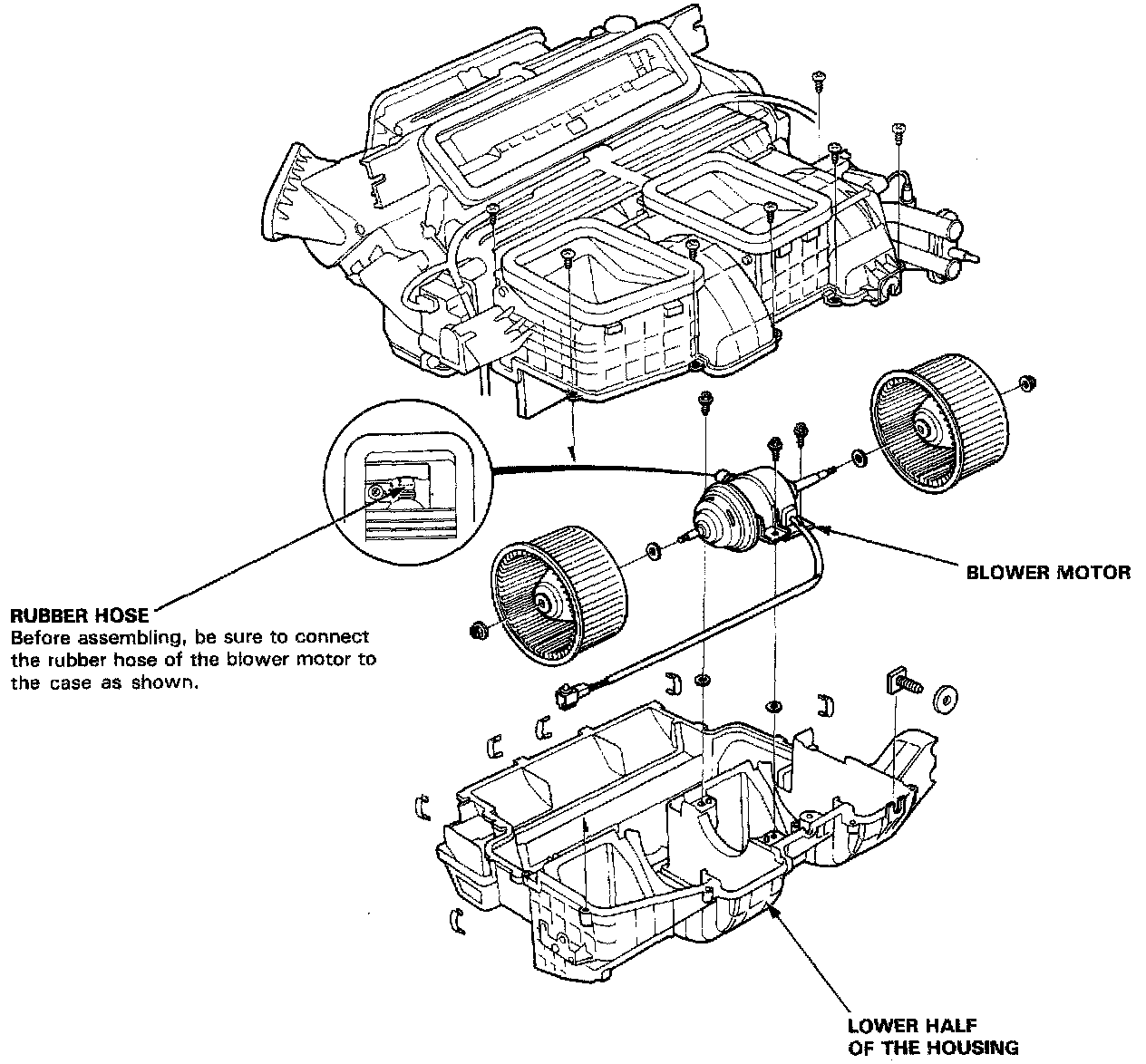

7. Remove the lower half of the housing, then remove the blower motor.
8. Install the blower motor in the reverse order of removal, then make sure it runs and doesn't leak any air.
