Acura
>>
1994
>>
Vigor L5-2451cc 2.5L SOHC G25A4 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Exterior Switch Inputs
Exterior Switch Inputs

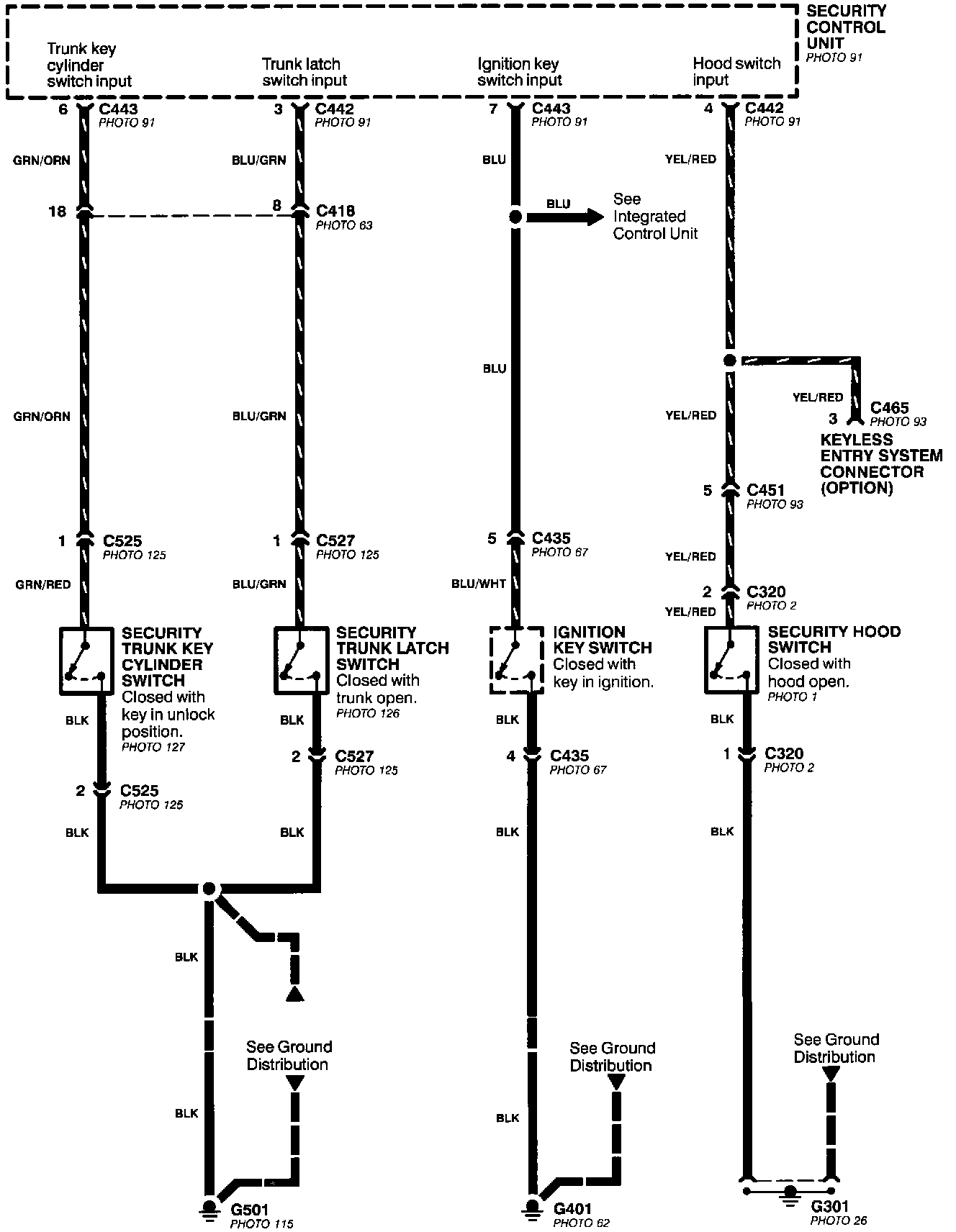

Security System- Exterior Switch Input:
