Electronic Brake Control Module: Service and Repair

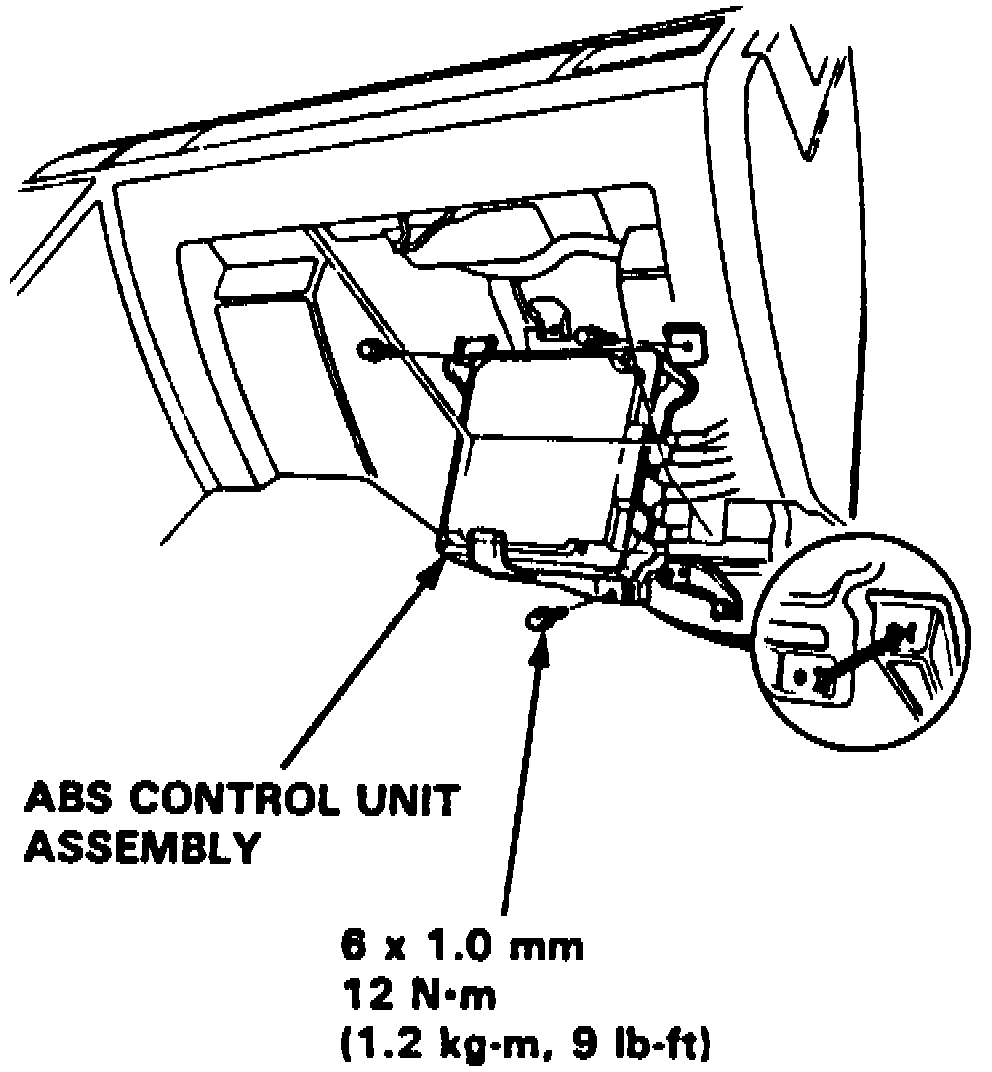

Fig. 102 Control Unit Replacement:

1. Remove glove compartment.
2. Remove control unit attaching bolts, Fig. 102.
3. Reverse procedure to install.
