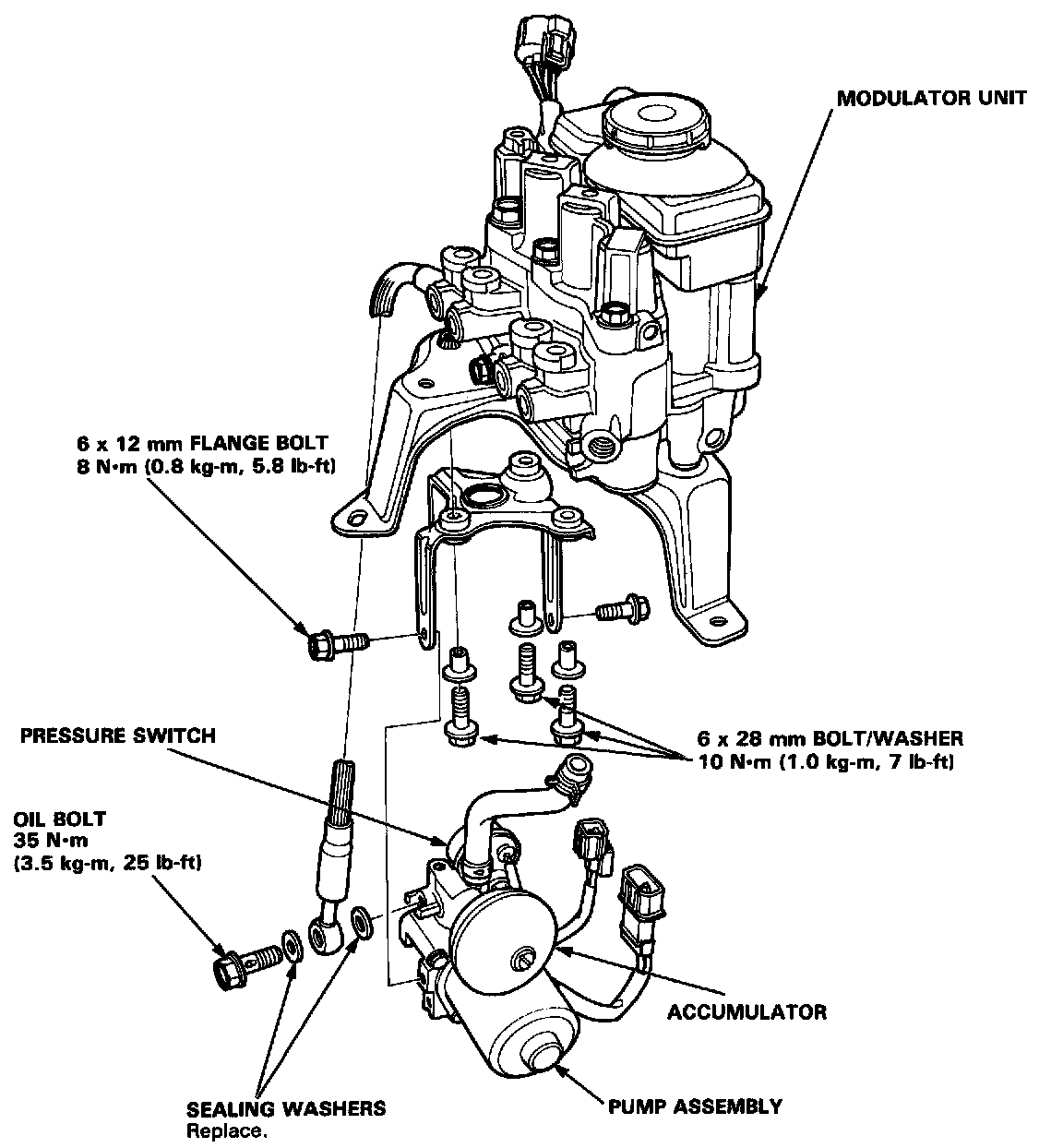

Brake Fluid Pump: Service and Repair

Index/Torque
Before removing the modulator-to-pump high-pressure line, be sure to relieve the fluid pressure from the maintenance bleeder. Relieving Pressure

CAUTION:
- Be careful not to bend or damage the brake pipe when removing the pump assembly.

- Do not spill brake fluid on the car; it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.

- To prevent spills, cover the hose joints with rags or shop towels.

- Before reassembling, check that all parts are free of dust and other foreign particles.

- Do not try to disassemble the pump assembly. Replace the assembly with a new part if necessary.

- Do not mix different brands of brake fluid as they may not be compatible.

- Do not reuse the drained fluid. Use only clean DOT 3 or 4 brake fluid.

- When connecting the brake pipes, make sure that there is no interference between the brake pipes and other parts.
