Tilt/Extend-Retract Motor Test

Tilt/Extend-retract Motor Test

1. Pry the courtesy light controller and TCS switch (LS) out from the dashboard lower cover, then remove the three screws, and remove the dashboard lower cover.
2. Remove the steering column tilt cover.

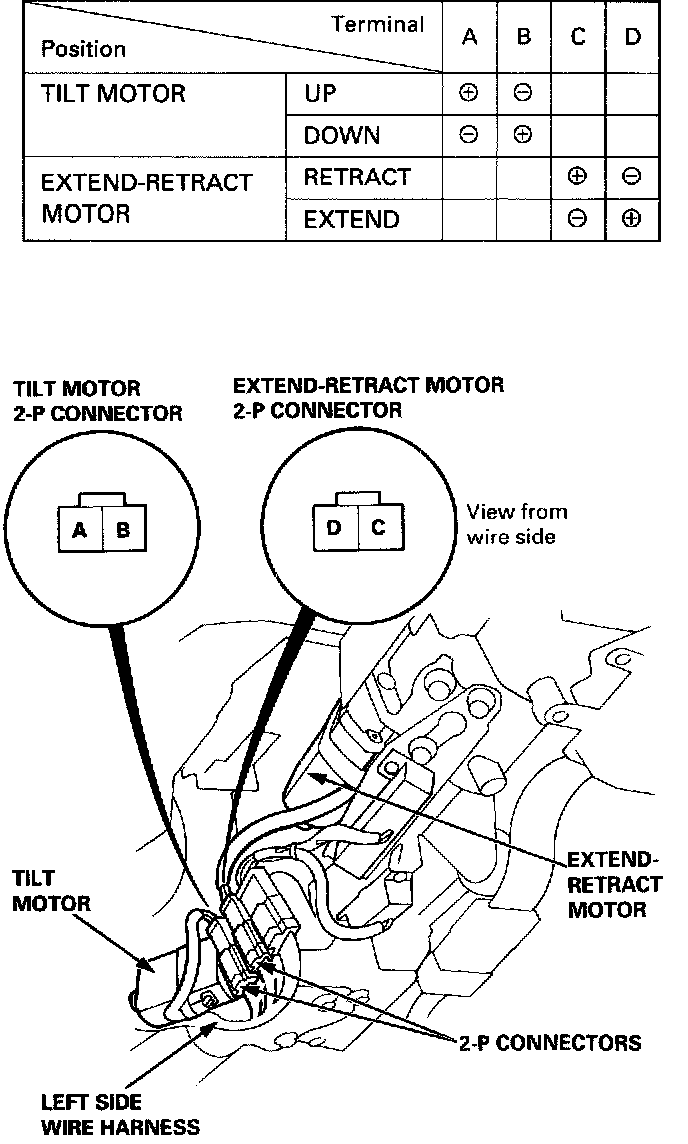

3. Disconnect the left side wire harness 2-P connector from the tilt or extend-retract motor 2-P connector.
4. Test the motor in each direction by connecting power and ground according to the table.

CAUTION: When a motor stops running, disconnect the power terminal immediately.
