Steering Column Switch Test

Steering Column Switch Test

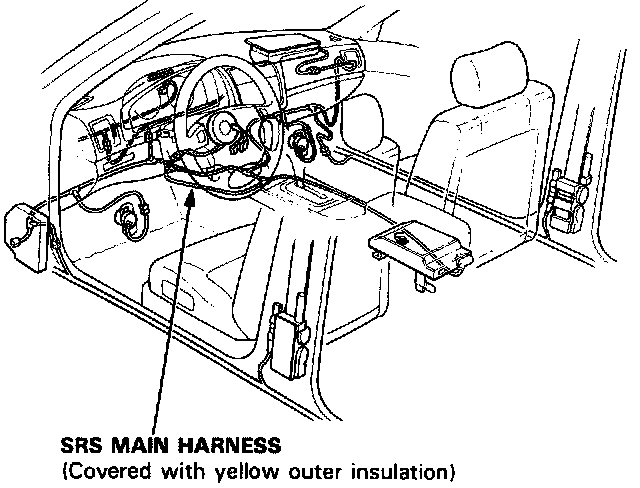

CAUTION:
^ Do not install used SRS parts from another car. When repairing an SRS, use only new parts.
^ Before disconnecting any part of the SRS wire harness, install the short connectors.
^ Do not disassemble or tamper with the airbag assembly.






1. Pry the courtesy light controller and TCS switch (LS) out from the dashboard lower cover, then remove the three screws, and remove the dashboard lower cover.
2. Remove the steering column tilt cover.
3. Remove the steering column upper and lower cover and disconnect the steering column switch.

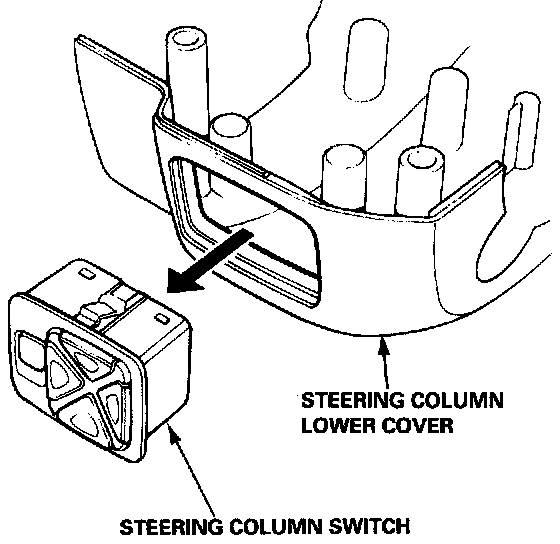

4. Remove the steering column switch from the steering column lower cover.

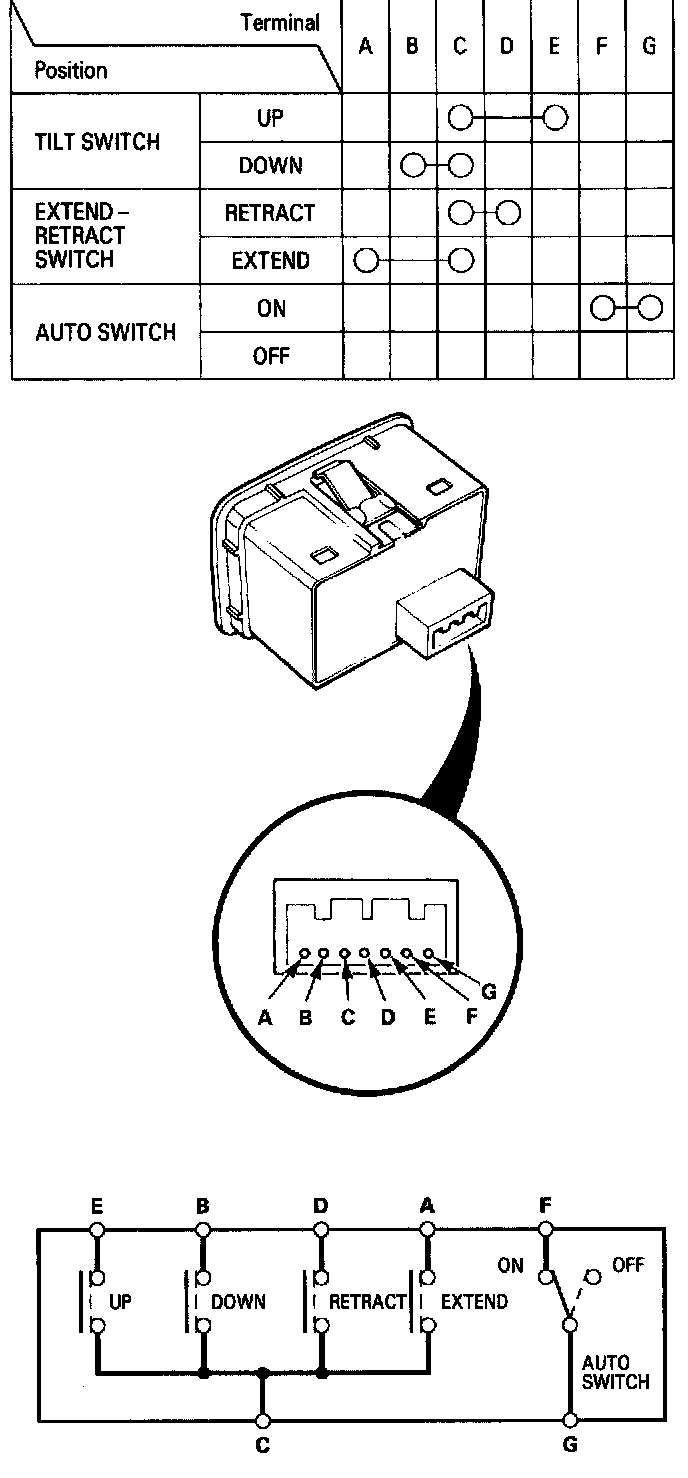

5, Check for continuity between the terminals in each switch position according to the table.
