Indicator Does Not Light

The SRS Indicator Does Not Light

CAUTION:
- Use only a digital multimeter use only a digital multimeter to check the system.

NOTE: Before troubleshooting, make sure that battery voltage is 12 V or more. Otherwise you'll obtain wrong test readings.

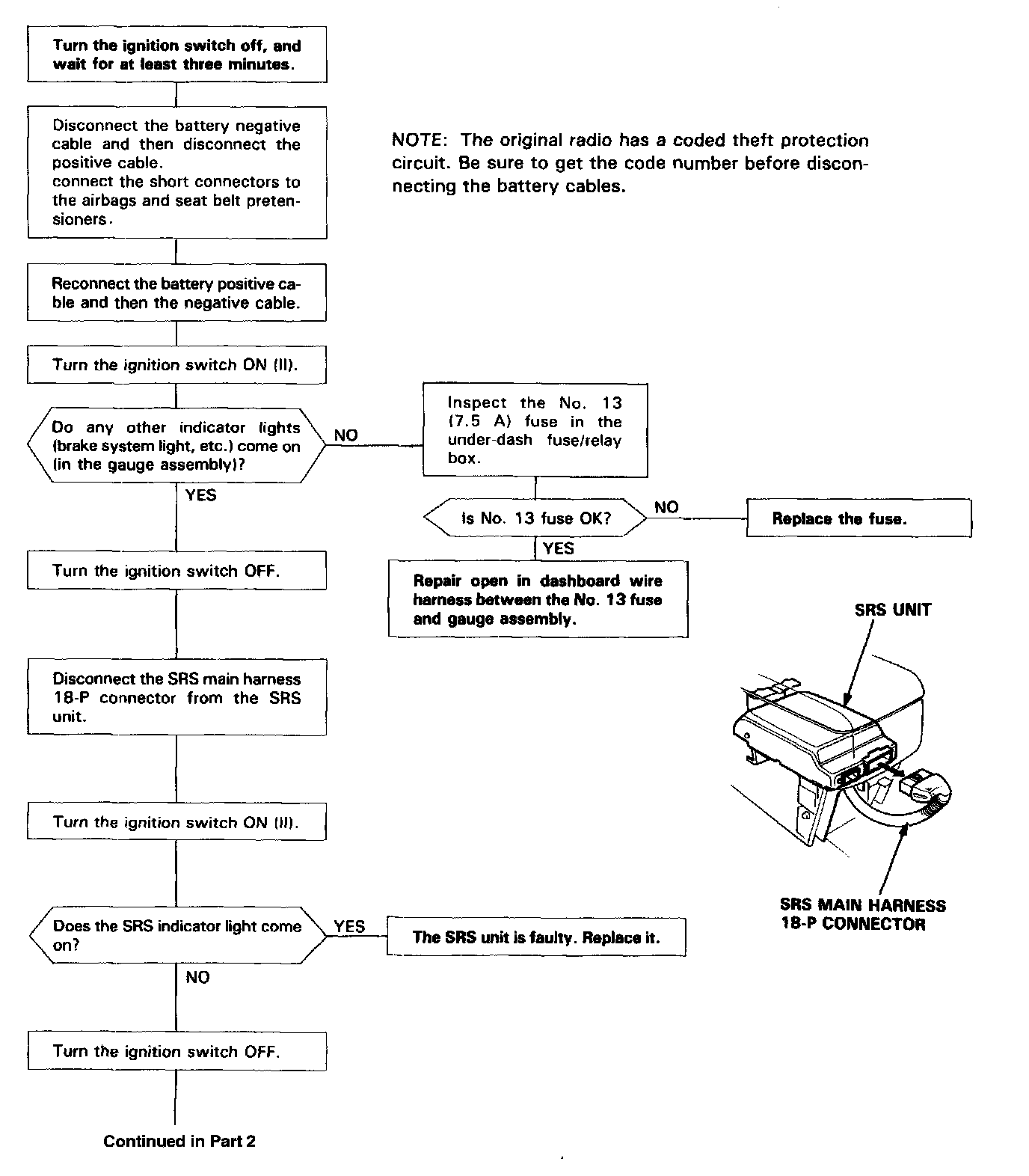

SRS Indicator Does Not Light - Part 1:

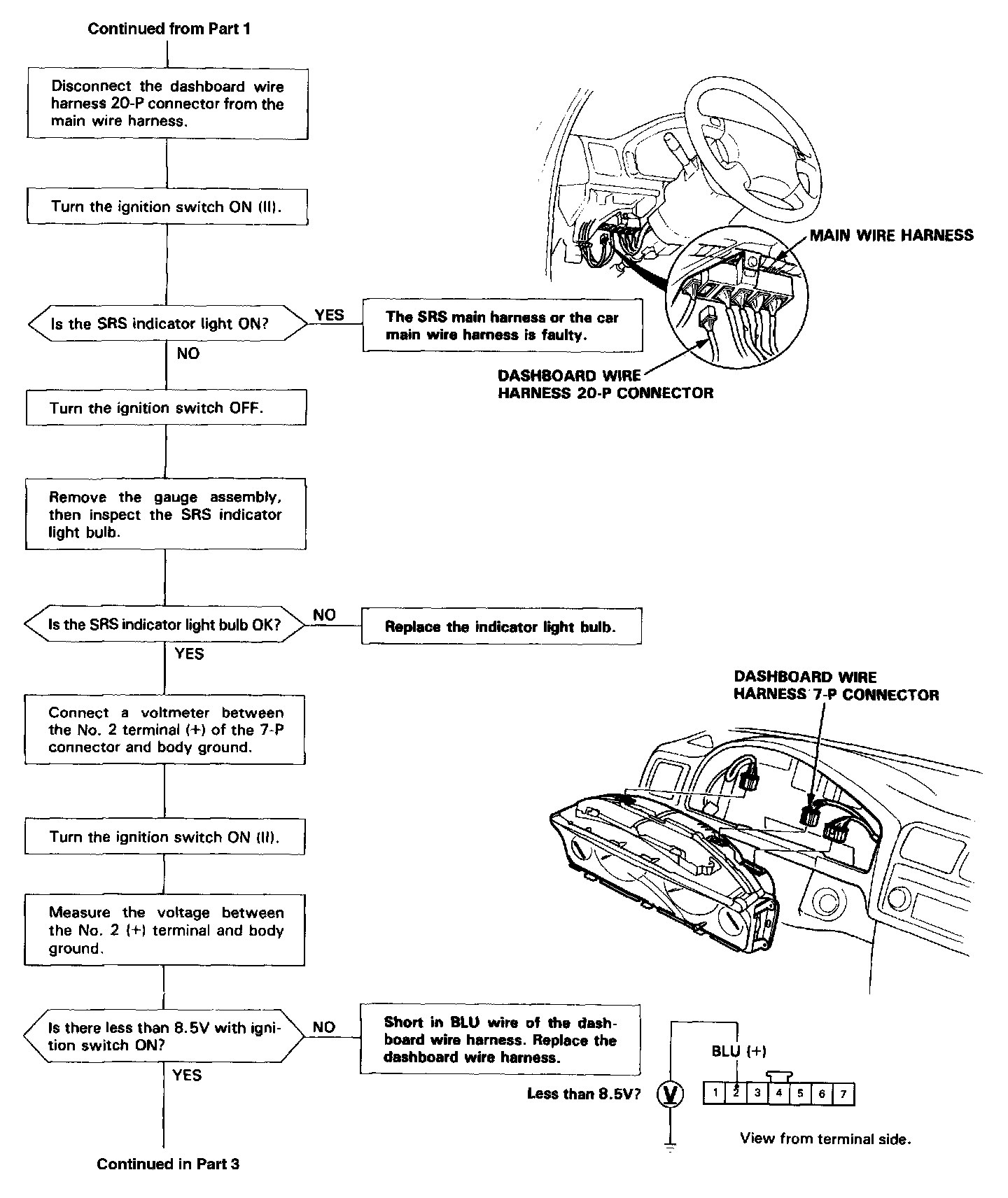

SRS Indicator Does Not Light - Part 2:

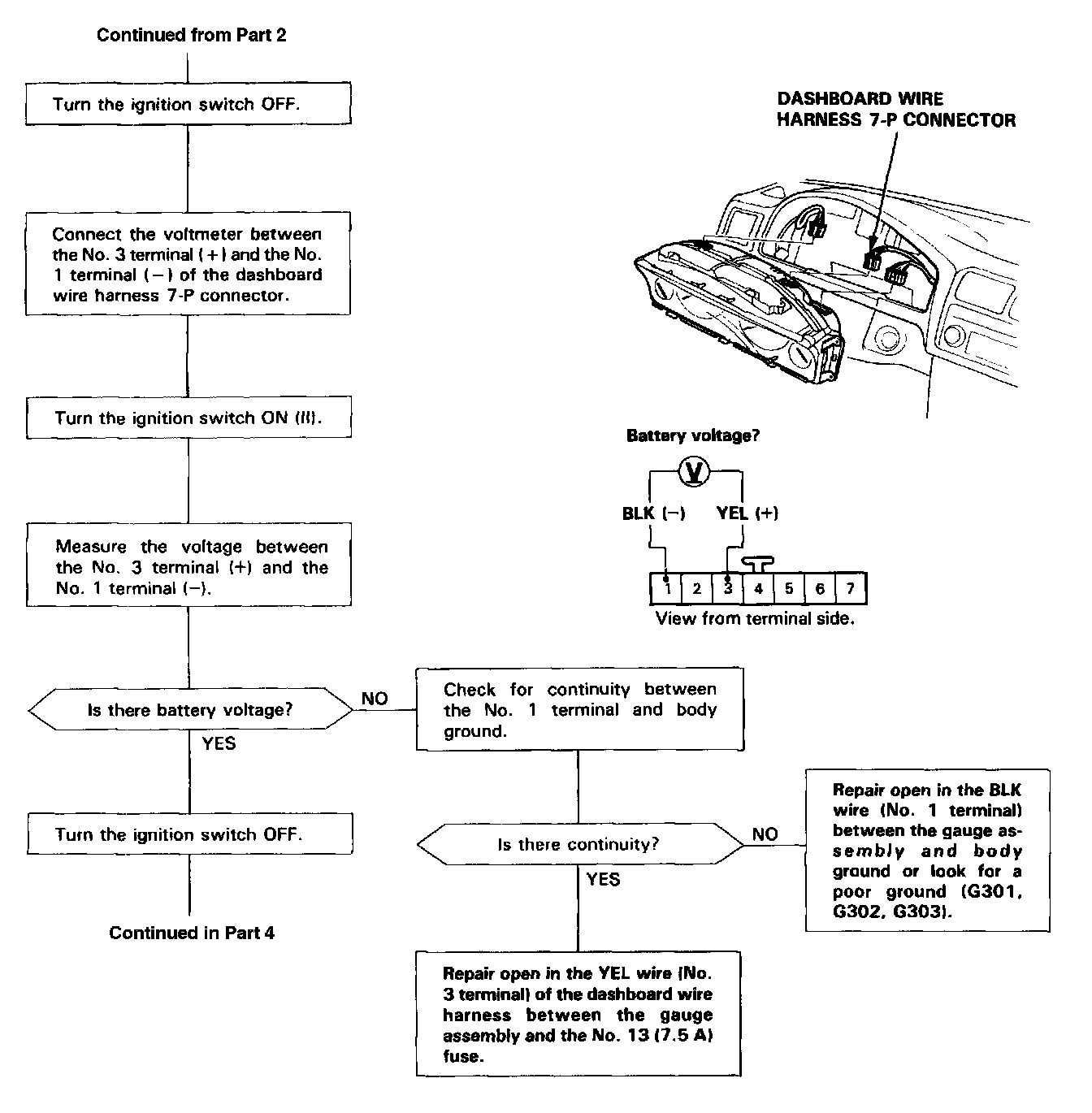

SRS Indicator Does Not Light - Part 3:

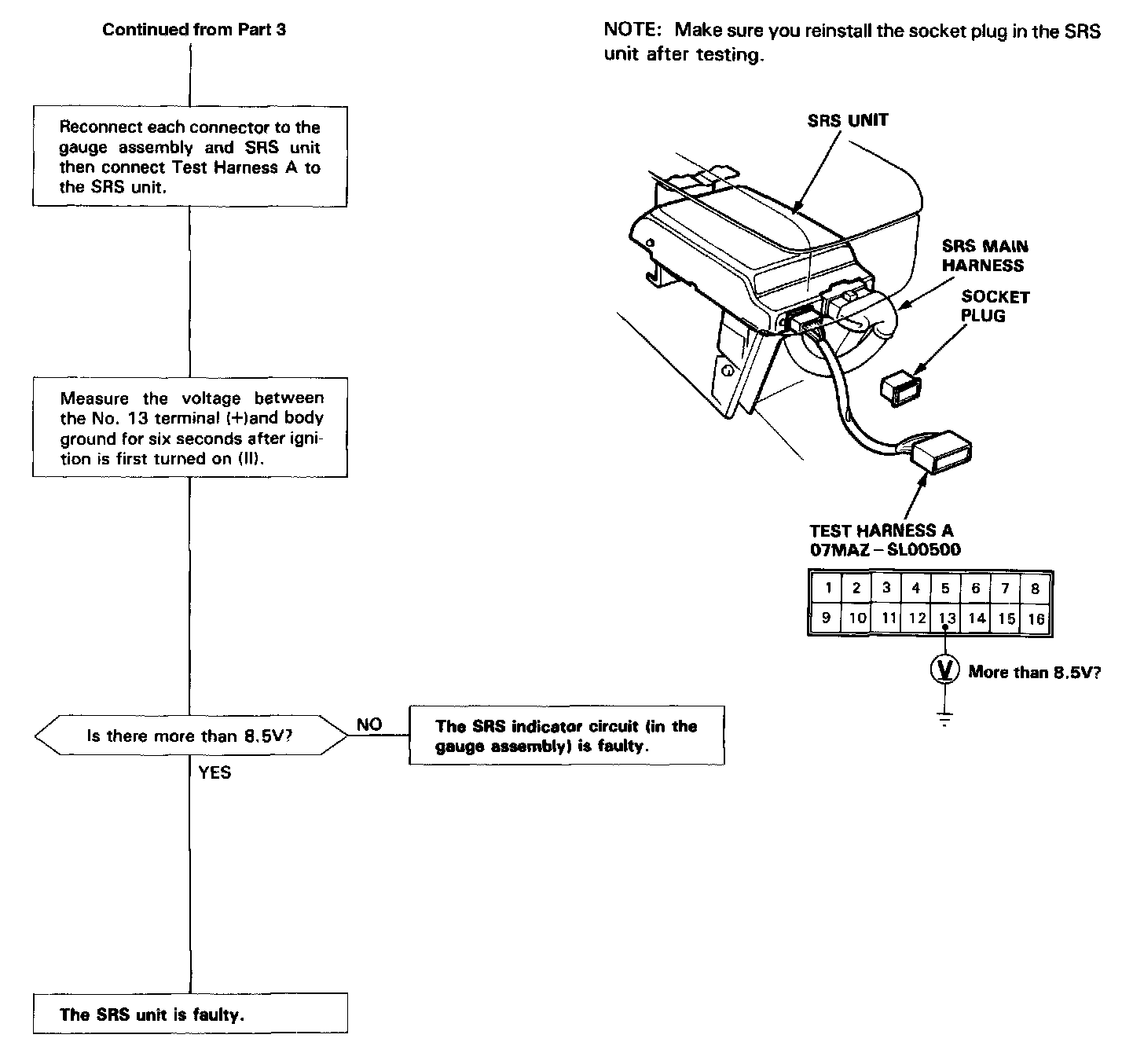

SRS Indicator Does Not Light - Part 4:

NOTE: Make sure you reinstall the socket plug in the SRS unit after testing.
