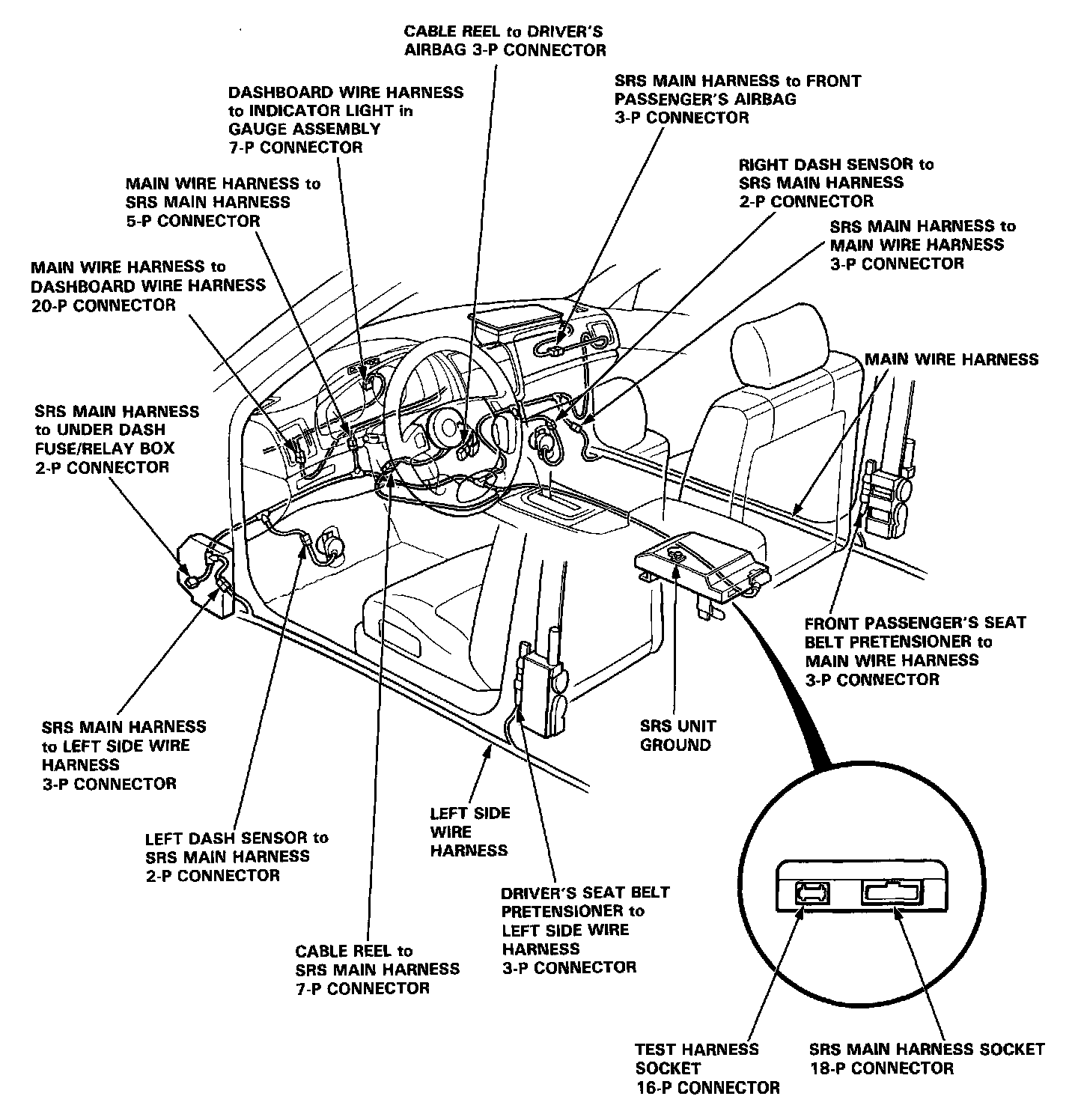

Connector Locations

Wiring Locations

CAUTION:
- Make sure all SRS ground locations are clean and grounds are securely attached.

NOTES:
- All SRS electrical wiring harnesses are covered with yellow outer insulation.
- Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring
