Fuel Pressure Control Solenoid: Testing and Inspection
FUEL PRESSURE REGULATOR CONTROL SOLENOID VALVE

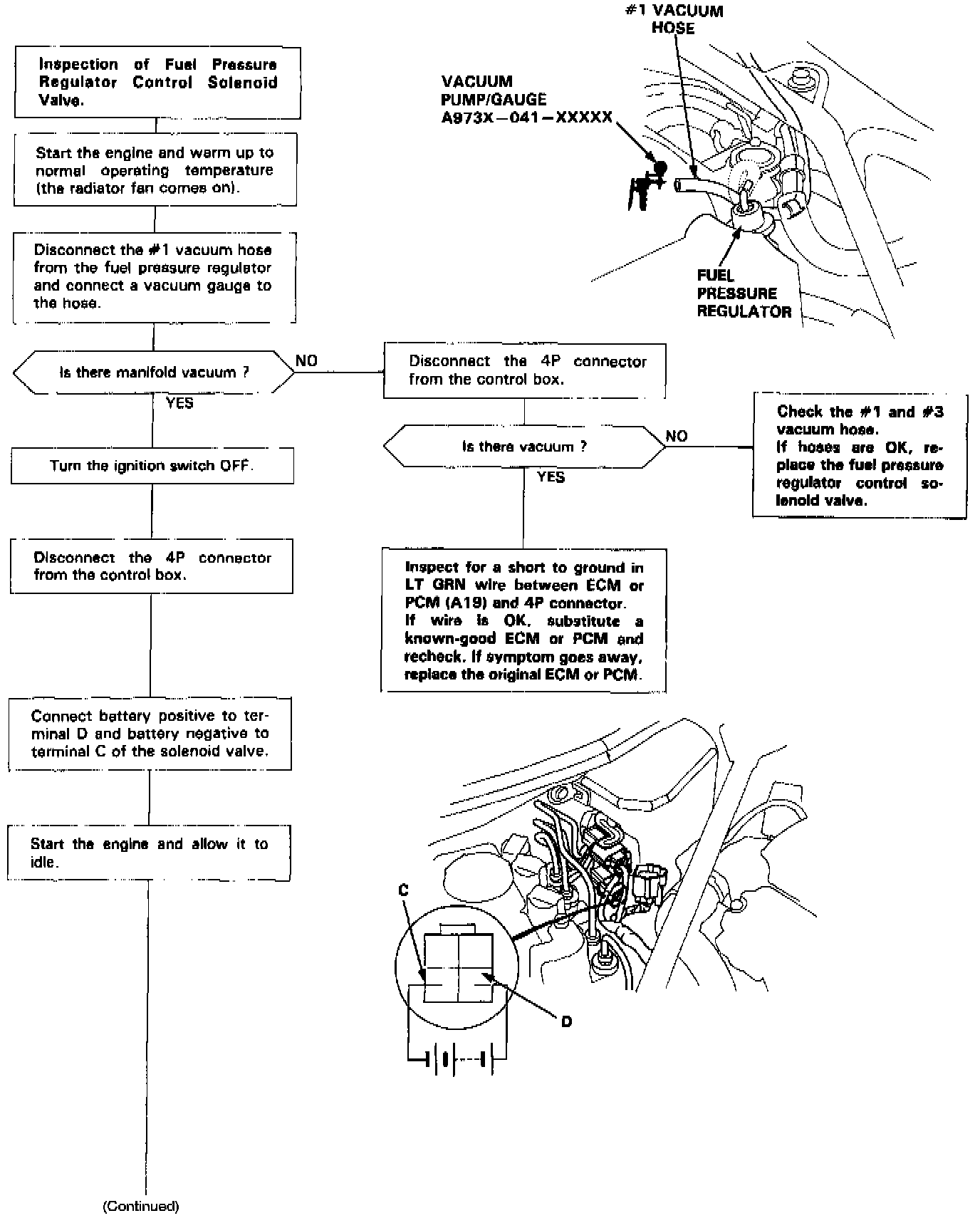

PART 1 OF 2

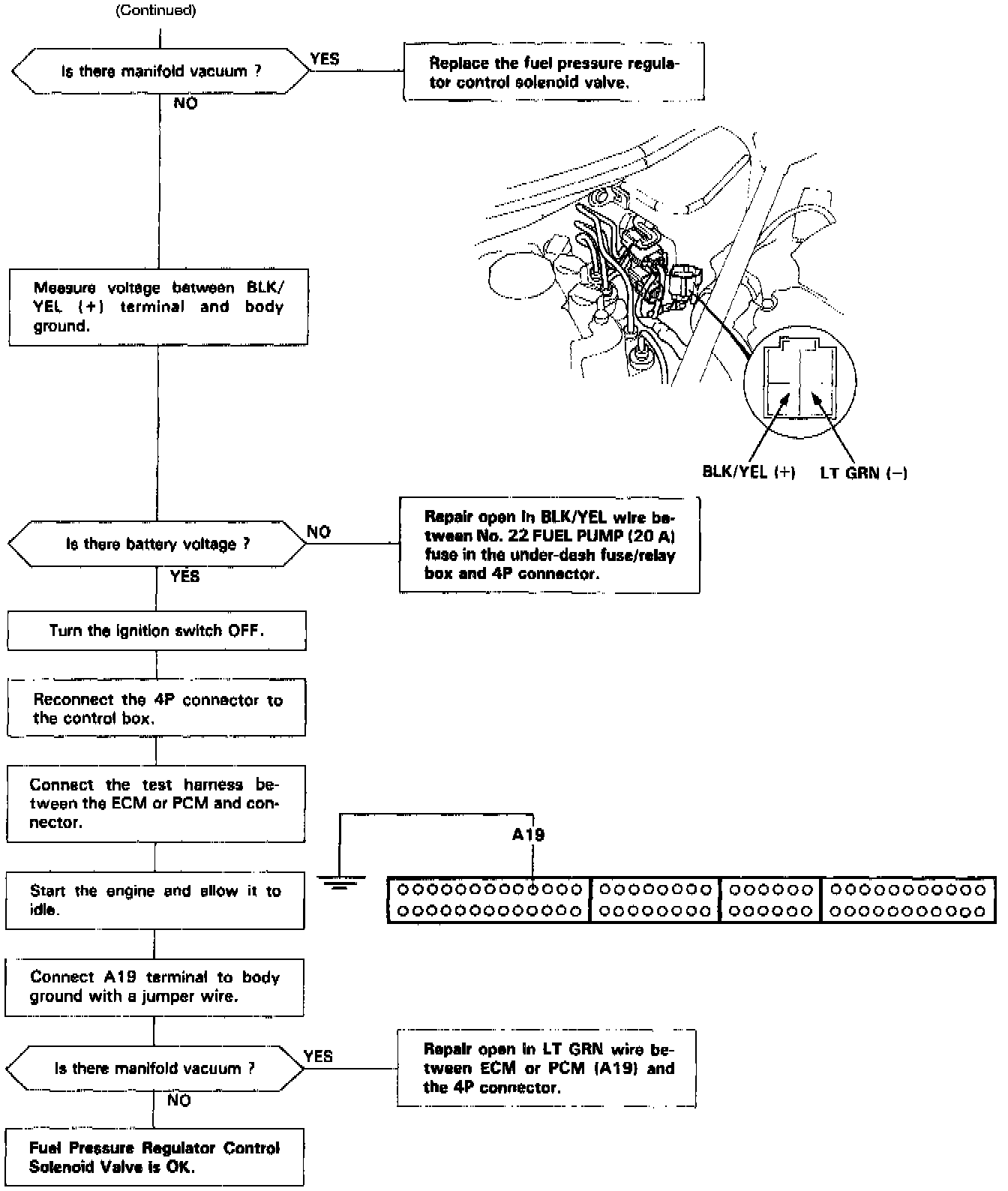

PART 2 OF 2
