Home >> Acura >> 1994 >> Legend Coupe V6-3206cc 3.2L SOHC FI >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Under-Dash Fuse/Relay Box >> Fuse 15, 16, 5, 9, 10, 11

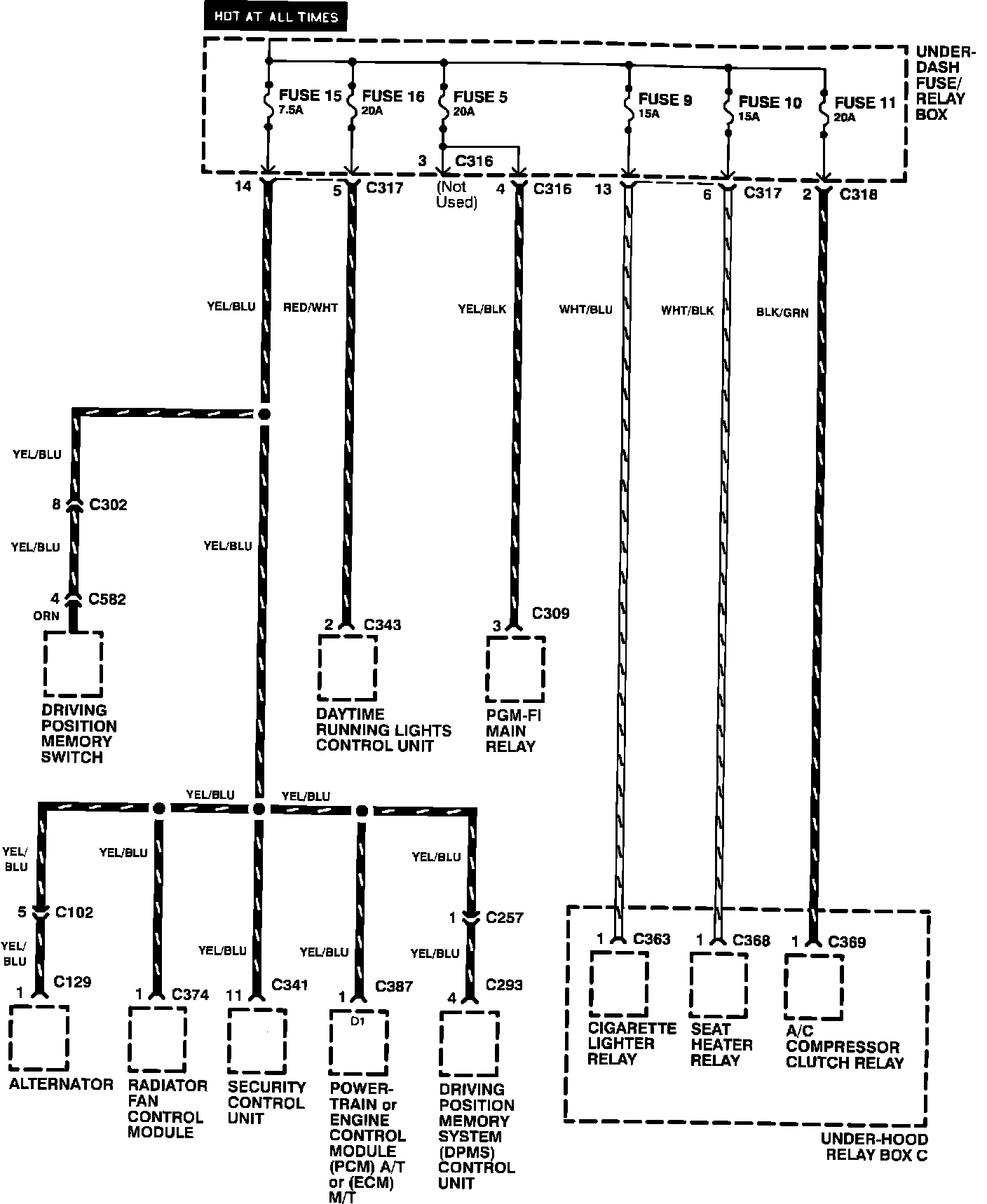

Fuse 15, 16, 5, 9, 10, 11

Power Distribution:
