Acura
>>
1994
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Under-Dash Fuse/Relay Box
>>

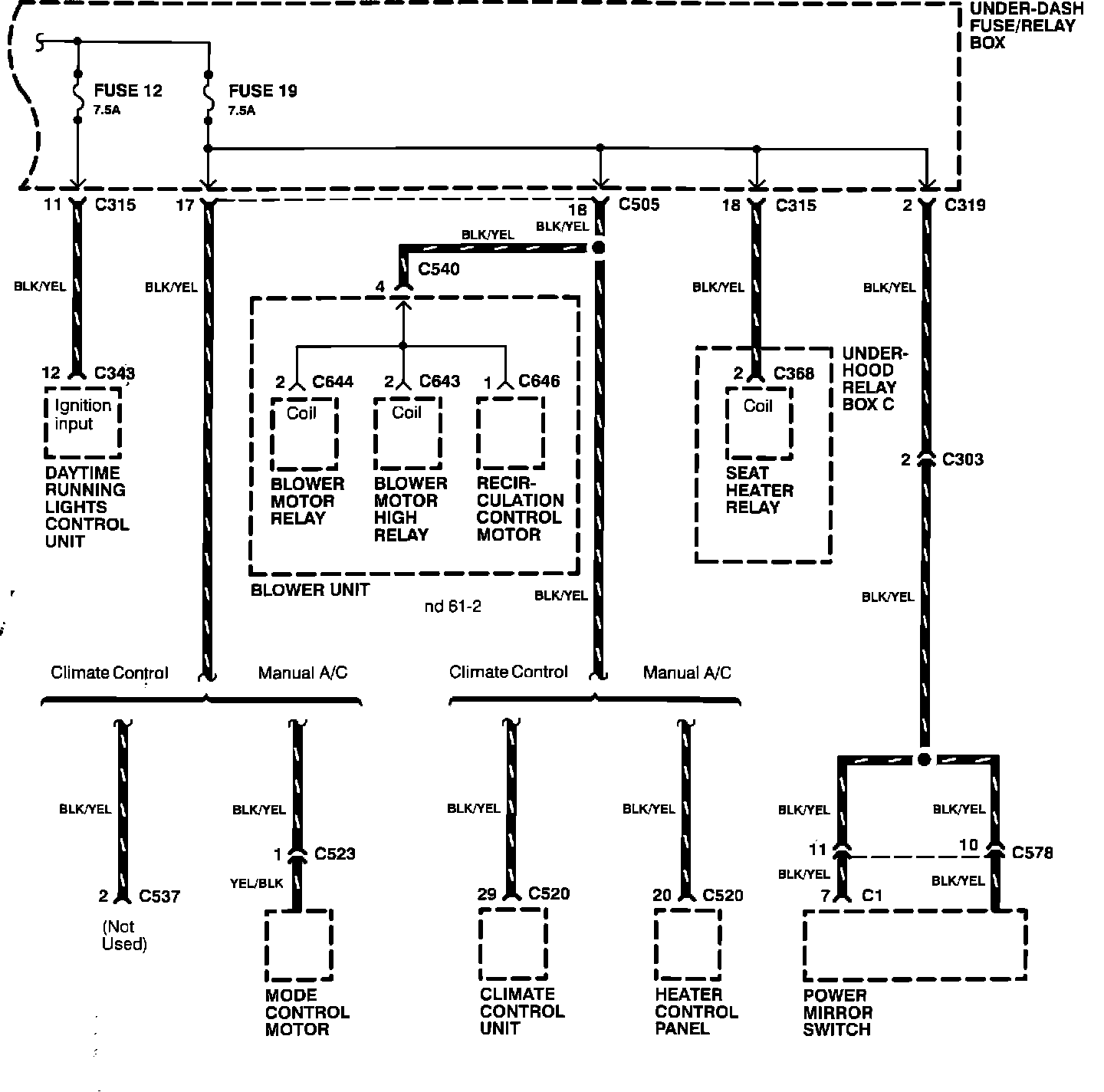

Fuse 12, 19
Fuse 12, 19
Power Distribution:
