Intake Manifold: Service and Repair

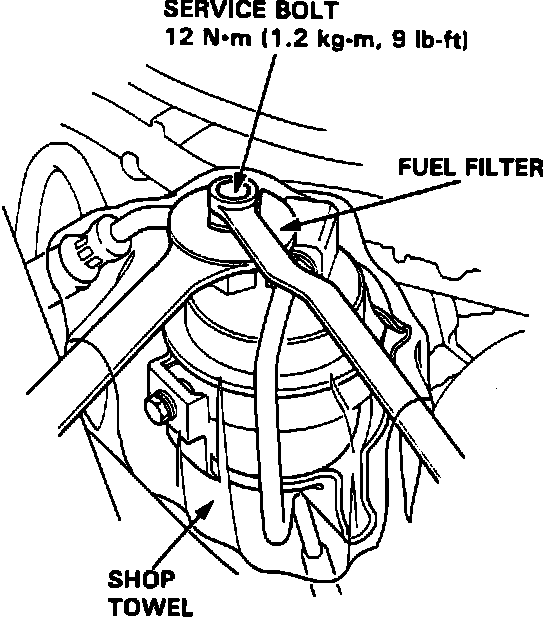

Fig. 8 Fuel Pressure Relief:

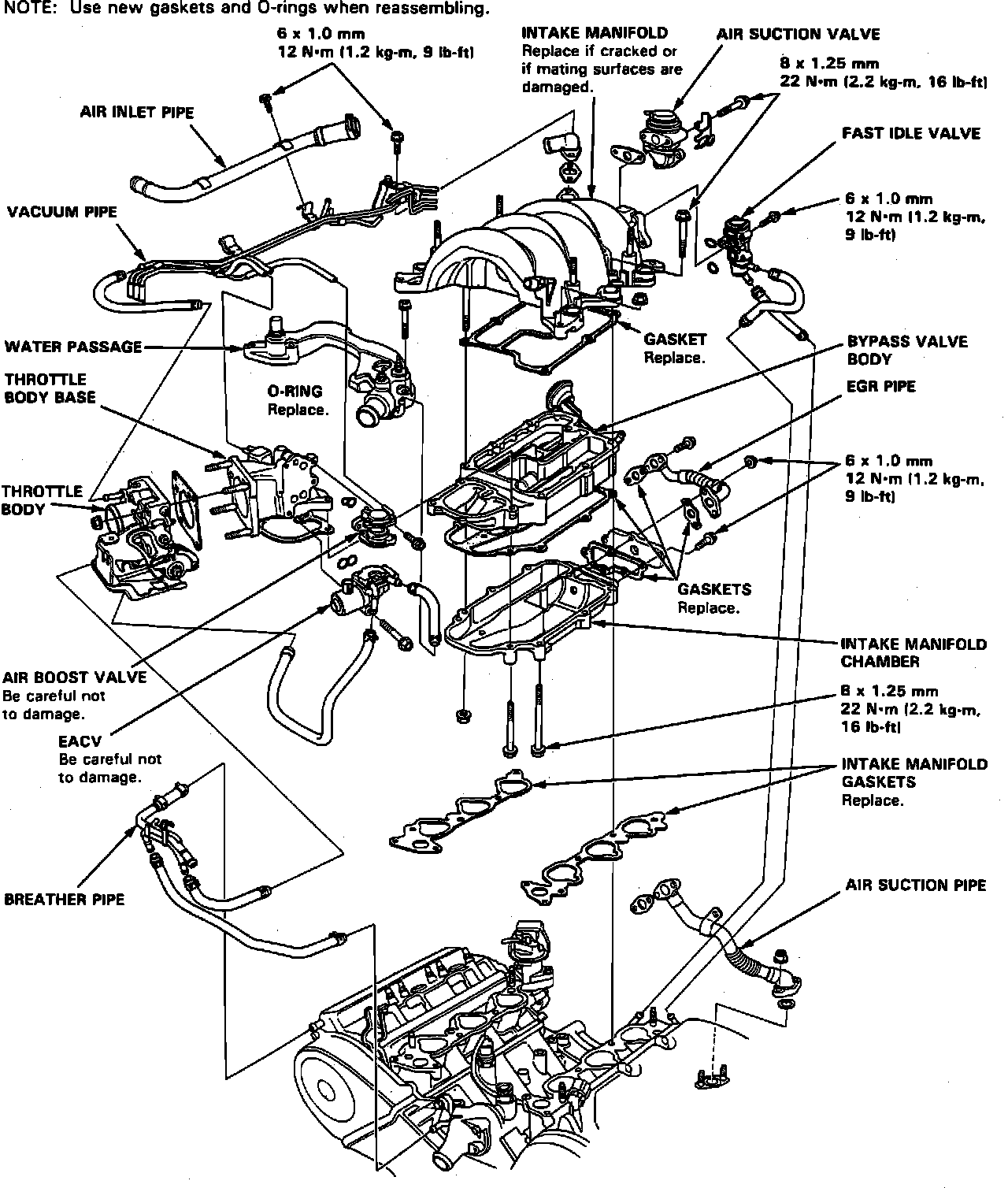

Fig. 18 Intake Manifold Replacement:

Relieve fuel system pressure by loosening the service bolt on top of fuel filter, Fig. 8, one complete revolution. Refer to Fig. 18, when replacing intake manifold.
