Piston: Service and Repair

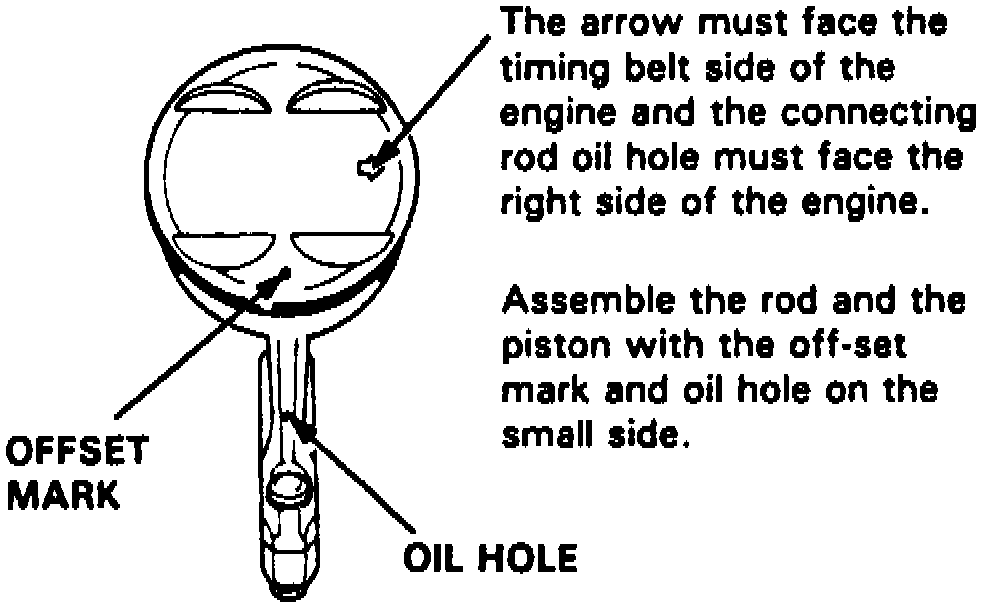

Fig. 78 Piston & Connecting Rod Assembly:

When installing connecting rod and piston assemblies into engine, arrow on piston head must face timing belt side of the engine and the connecting rod oil hole must face right side of the engine, Fig. 78.
