Home
>>
Acura
>>
1994
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Body Control Module
>>
Rear Window Defogger and Seat Belt Beeper Timer Circuit

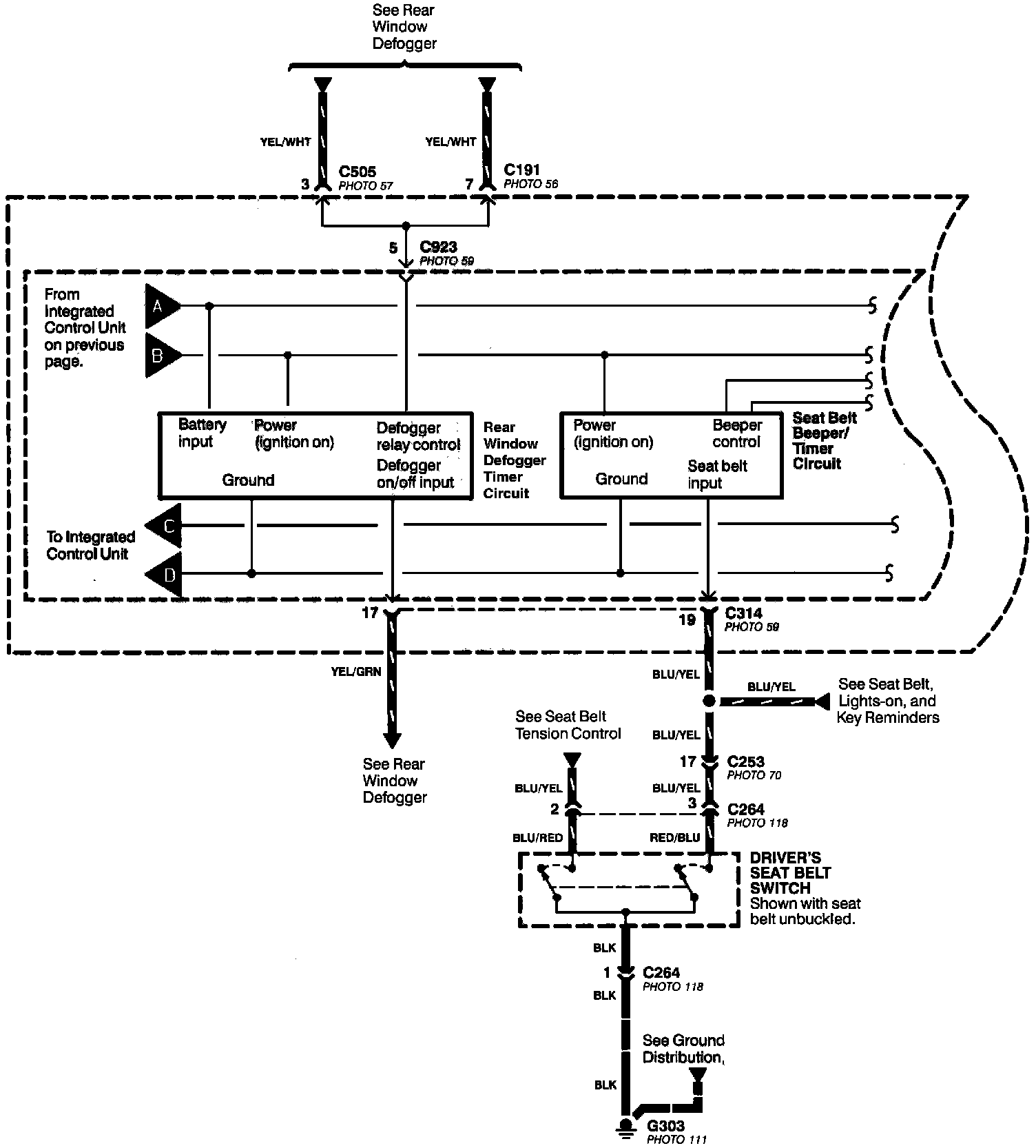

Rear Window Defogger and Seat Belt Beeper Timer Circuit
Integrated Control Unit- Rear Window Defogger And Seat Belt Beeper Timer Circuit:
