Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Under-Dash Fuse/Relay Box
>>
Fuse 23, 4
Fuse 23, 4

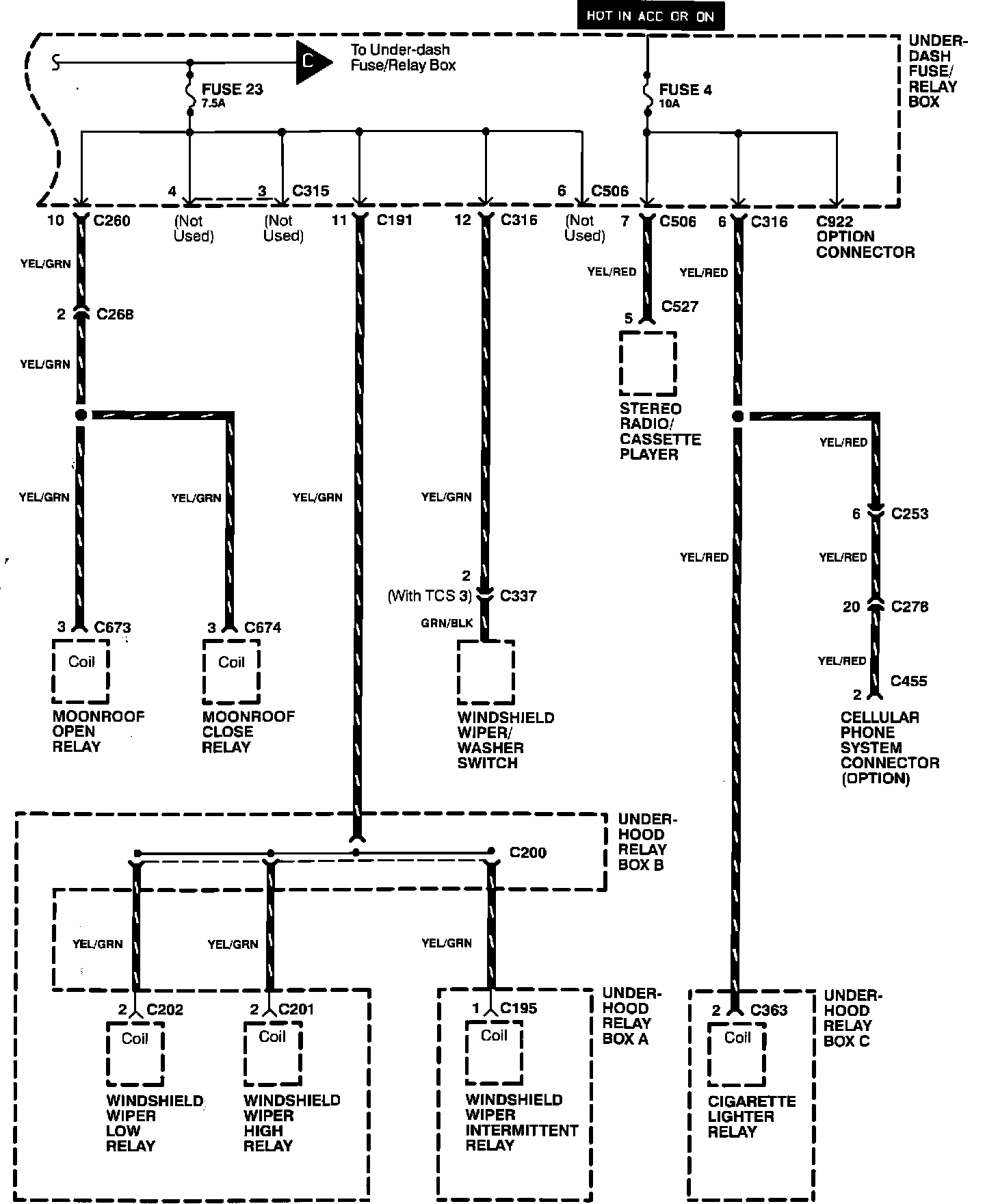

Power Distribution:
