Guide Plate Replacement

Guide Plate Replacement
1. Remove the glass bracket.

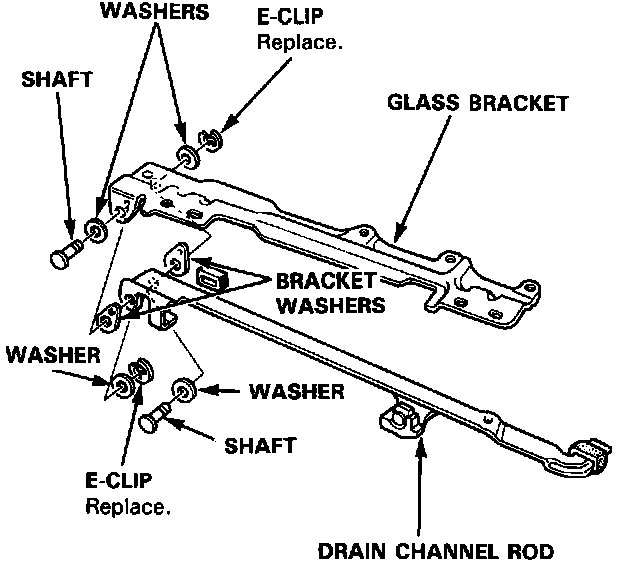

2. Pry the E-clips and remove the shafts, then separate the glass bracket and drain channel rod.

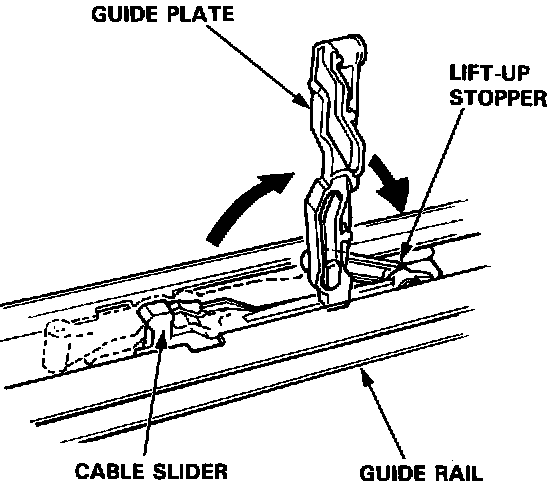

3. Remove the guide plate from the lift-up stopper.
