Throttle Position Sensor
Throttle Position Sensor

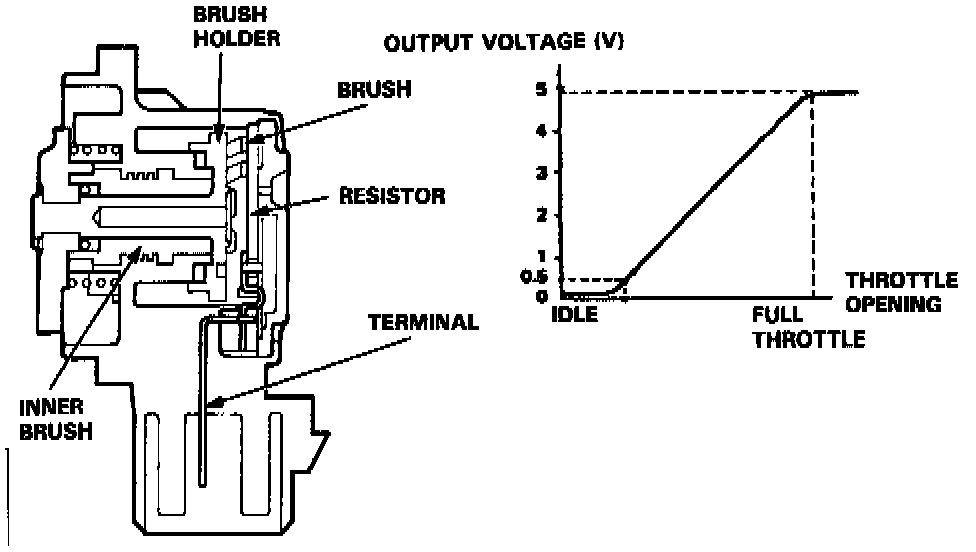

Throttle Position Sensor Sectional View And Output Voltage:
