Home >> Acura >> 1993 >> Legend Coupe V6-3206cc 3.2L SOHC FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Cigarette Lighter Relay >> Locations

Cigarette Lighter Relay: Locations

Under-hood Relay Boxes:

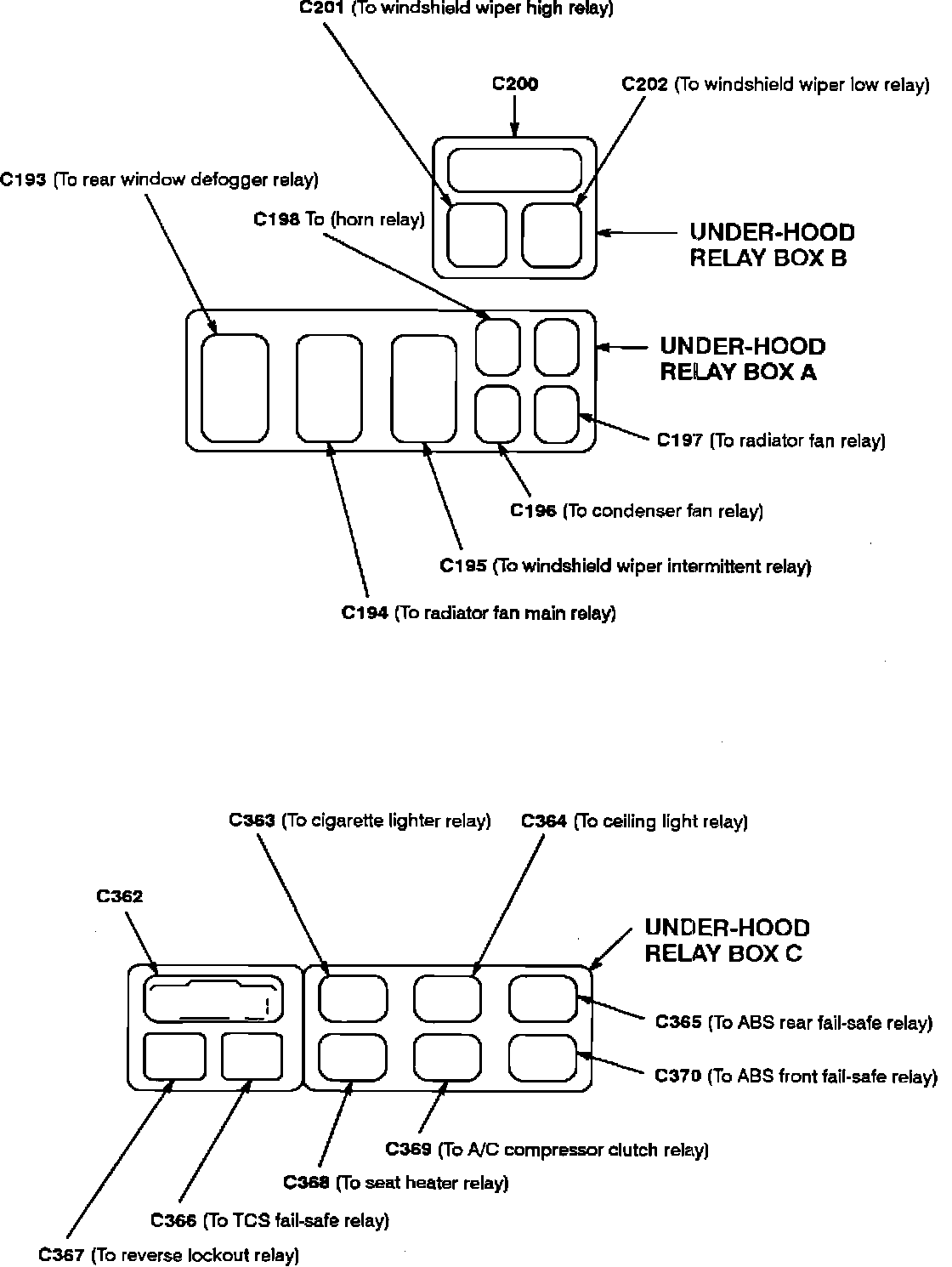

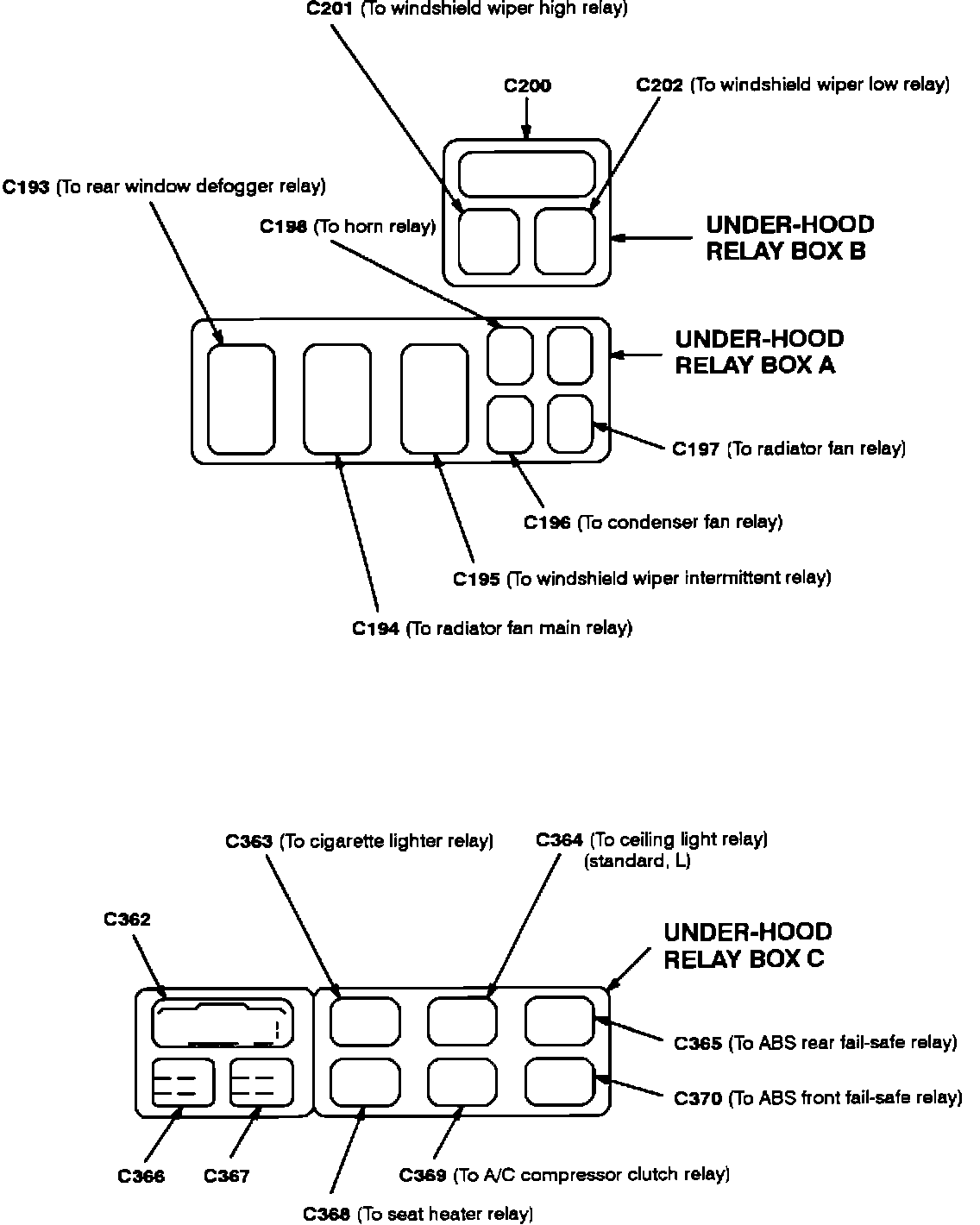

Under-Hood Relay Boxes A, B, And C:
