With Traction Control

Engine Compartment Vacuum Hose Connections:

VACUUM HOSE ROUTING

Control Box Vacuum Hose/Component Connections:

CONTROL BOX ROUTING

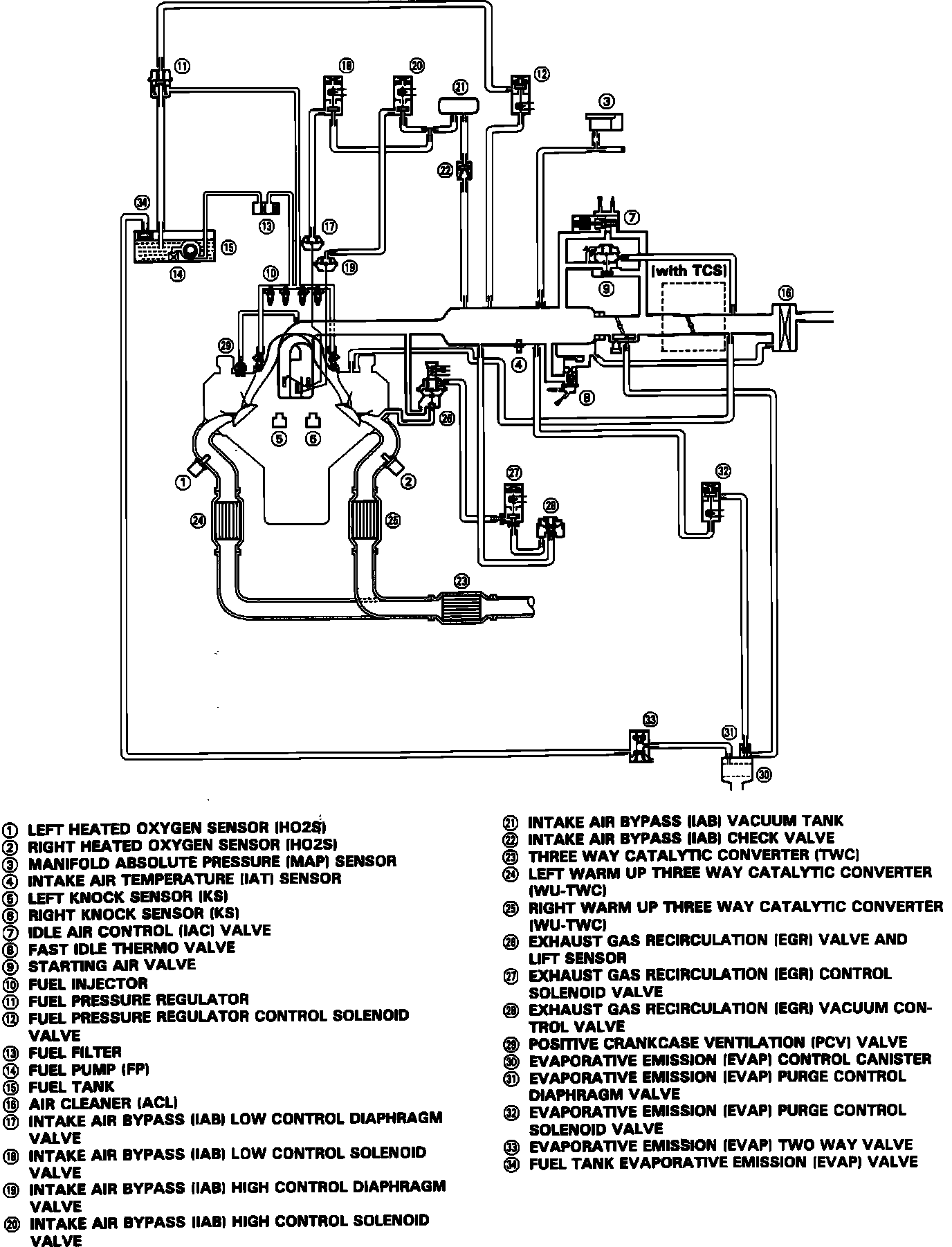

Vacuum Connections - System Schematic:

SYSTEM SCHEMATIC
