Acura
>>
1993
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Engine Compartment (Right Side)
>>
Harness
>>
Coupe
Coupe

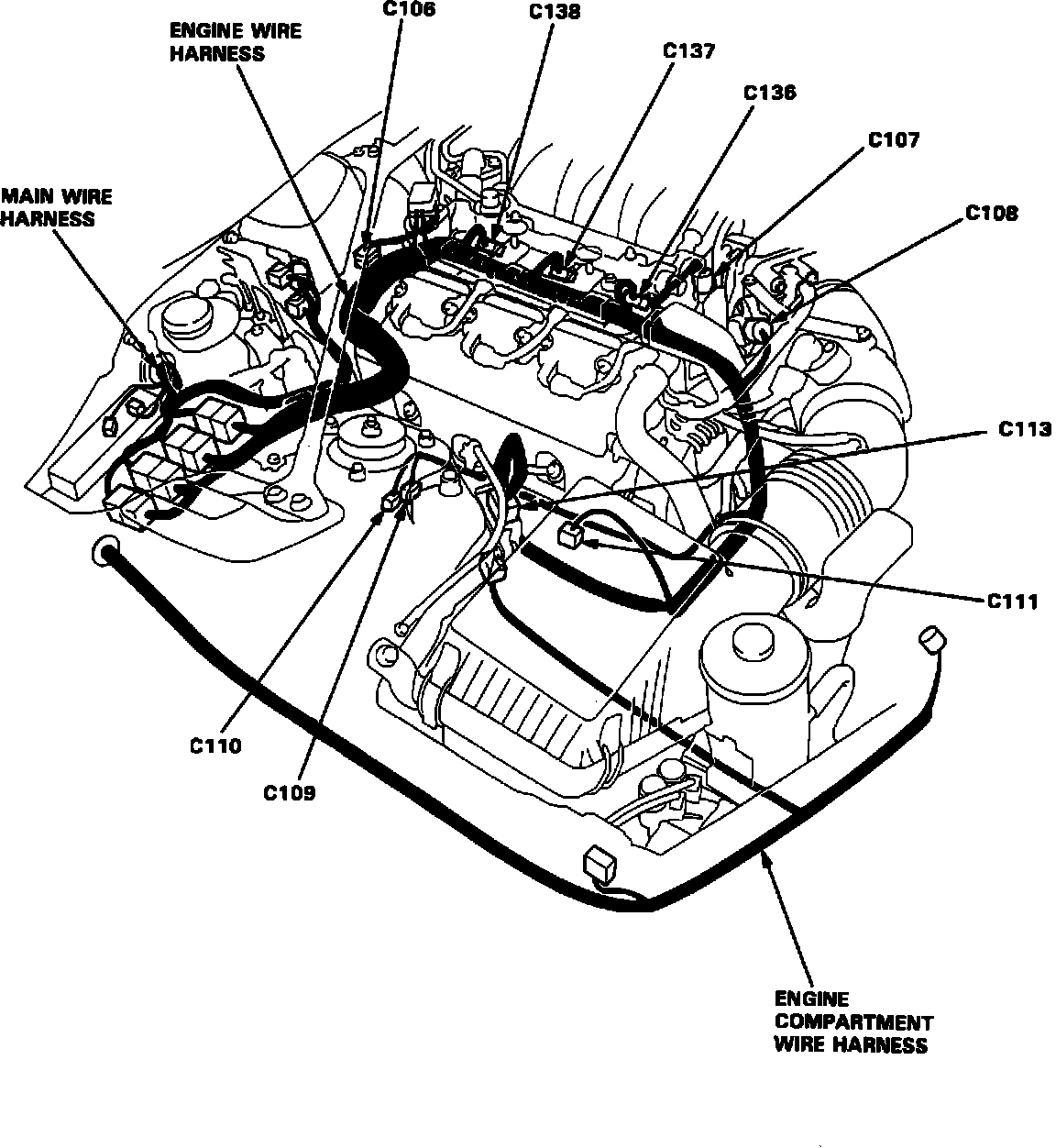

Wire Connector Location - Engine Compartment:

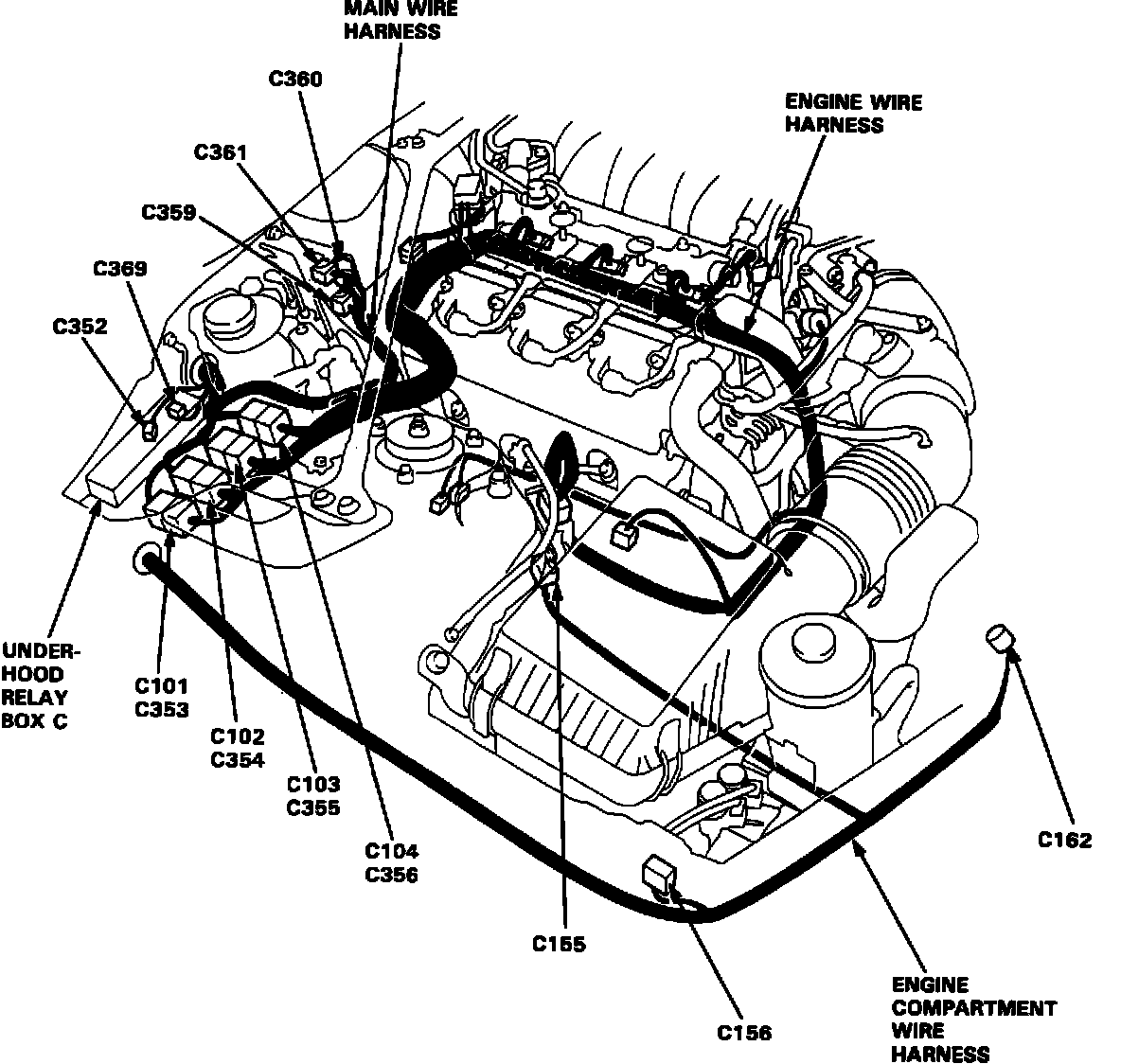

Wiring Connector Location - Engine Compartment:
