Diagnostic Flowcharts

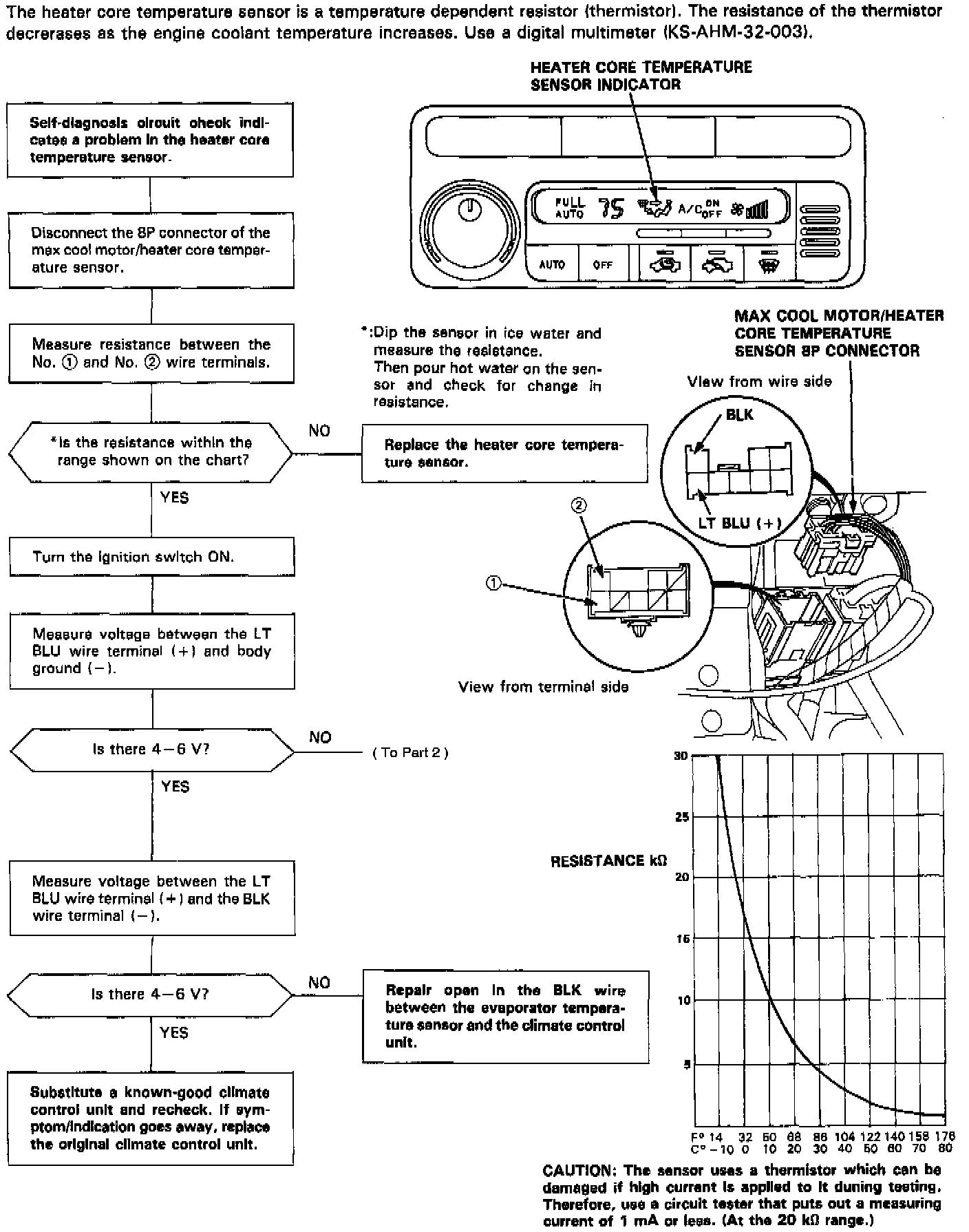

Heater Core Temperature Sensor, Part 1 Of 2:

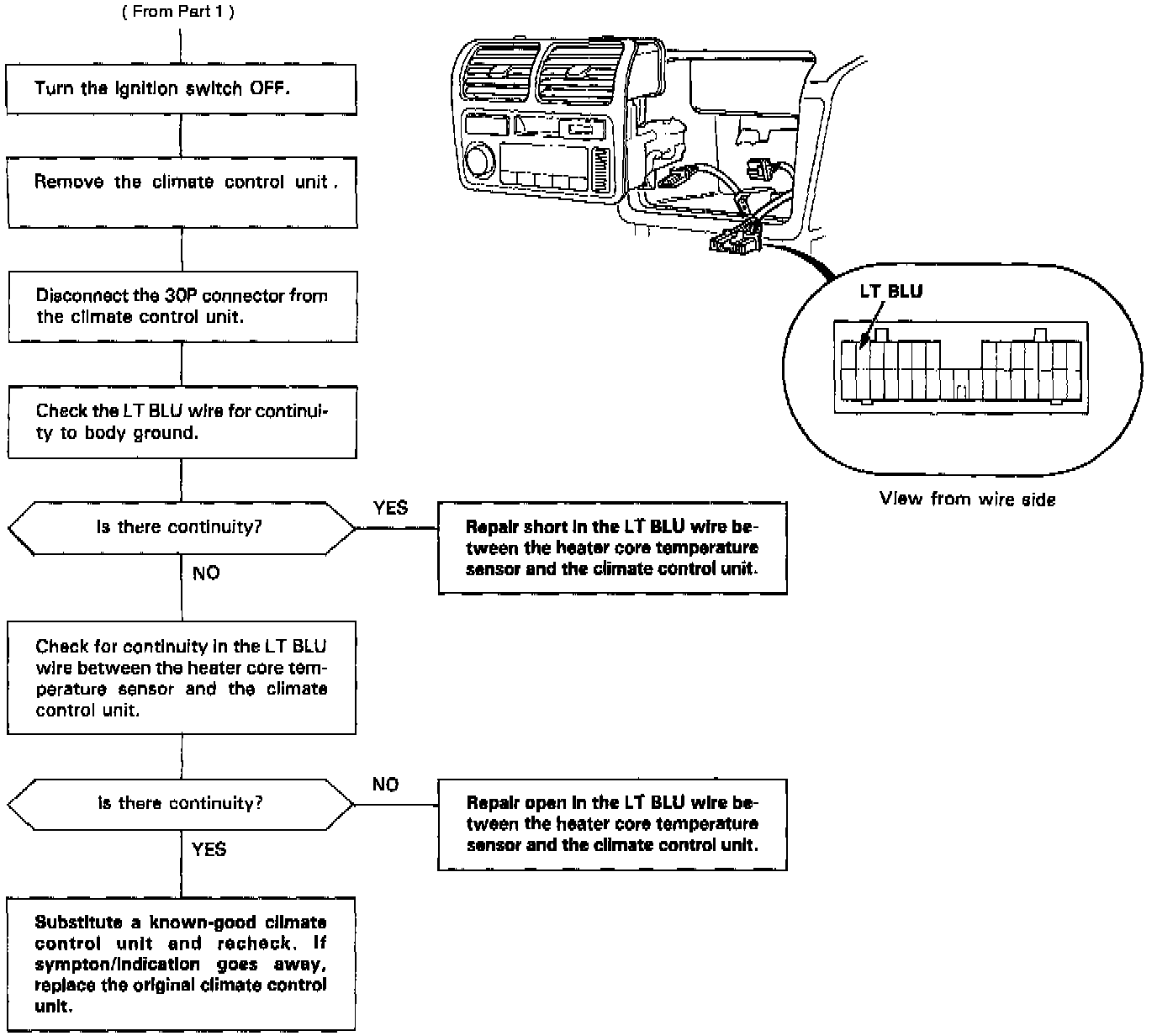

Heater Core Temperature Sensor, Part 2 Of 2:
