Home
>>
Acura
>>
1993
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Climate Control Panel
>>
Air Delivery
Air Delivery

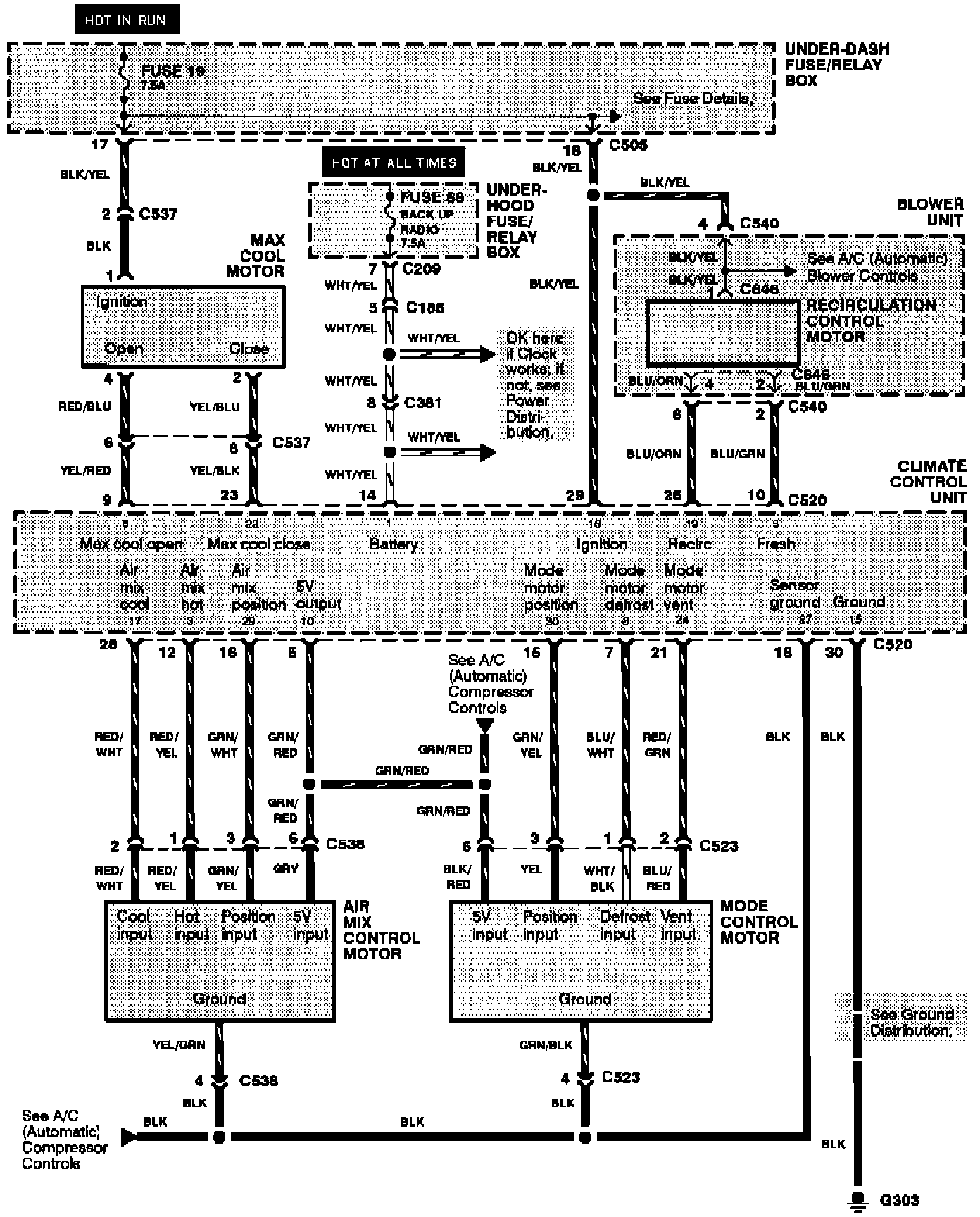

Air Conditioning (Automatic Controls): Air Delivery:
