Acura
>>
1993
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wire Harness Routing
>>
Blower
Blower

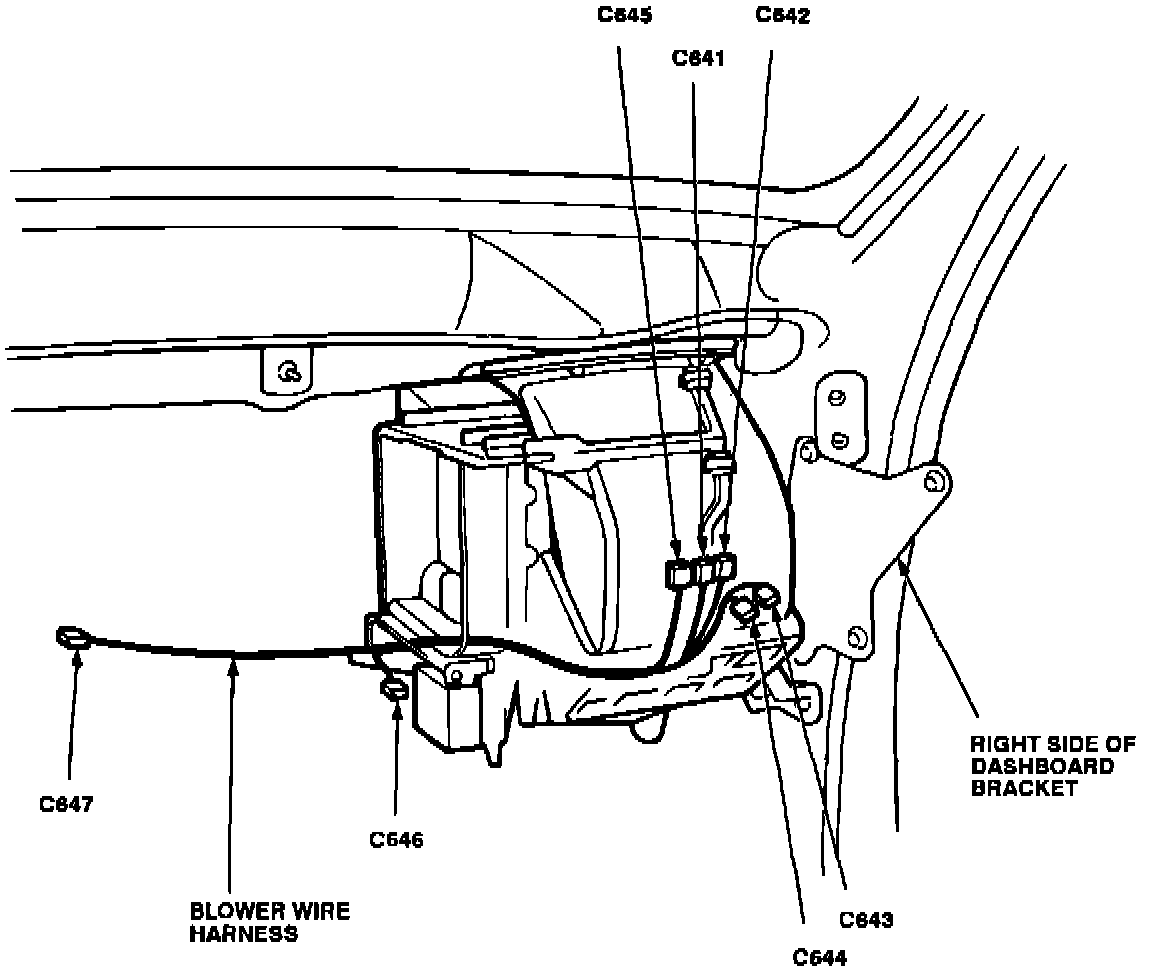

Connector Locations And Connector Wire Harness Routing: Blower Wire Harness:
