A/T, Knock Sensor, and Reverse Lockout Solenoid
A/T, Knock Sensor, and Reverse Lockout Solenoid

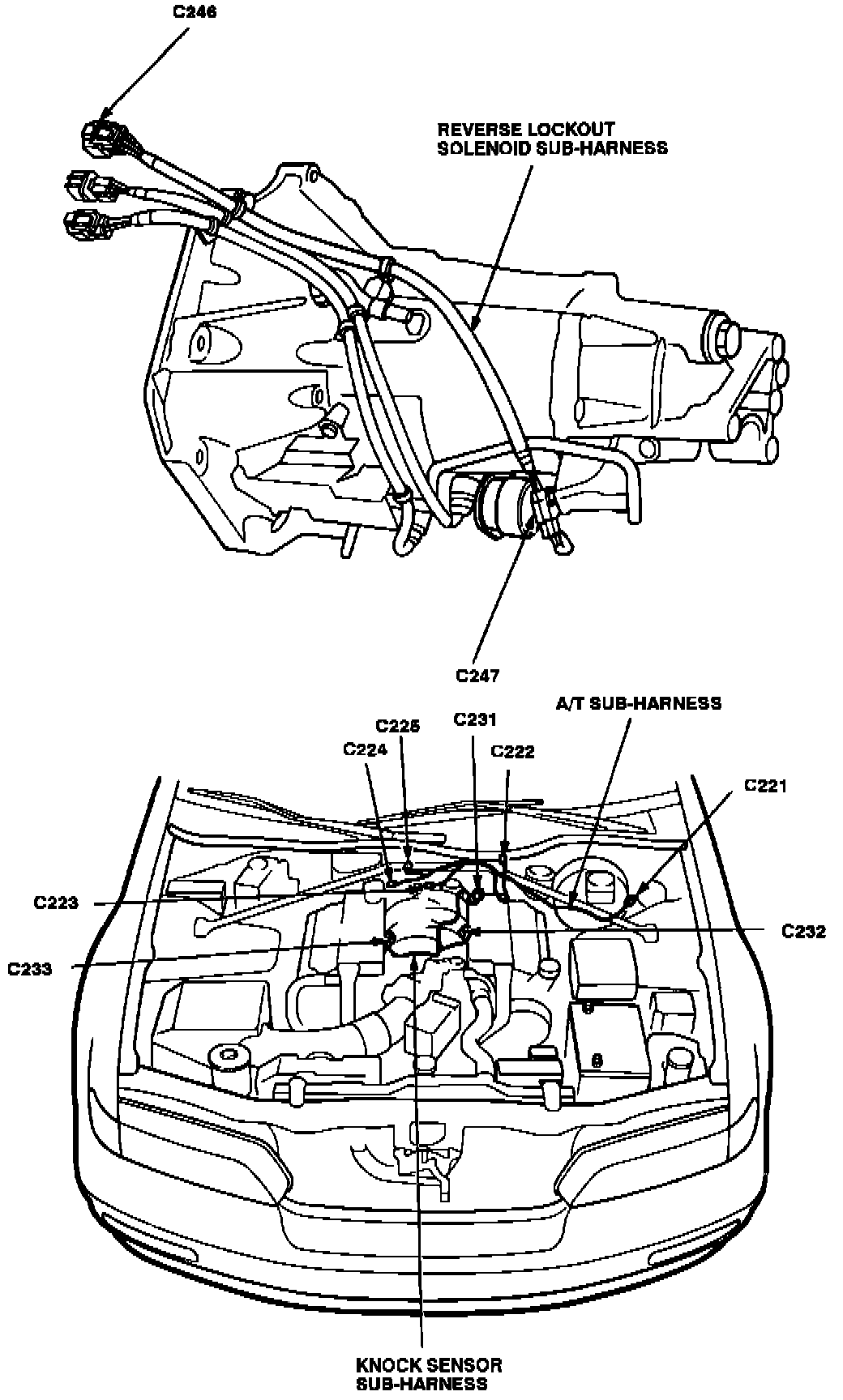

Connector Locations And Connector Wire Harness Routing: A/T, Knock Sensor, And Reverse Lockout Solenoid Harness:
