Courtesy Lamp
>>
System Diagram
>>
Entry Light Timer System
>>
LS Models
LS Models

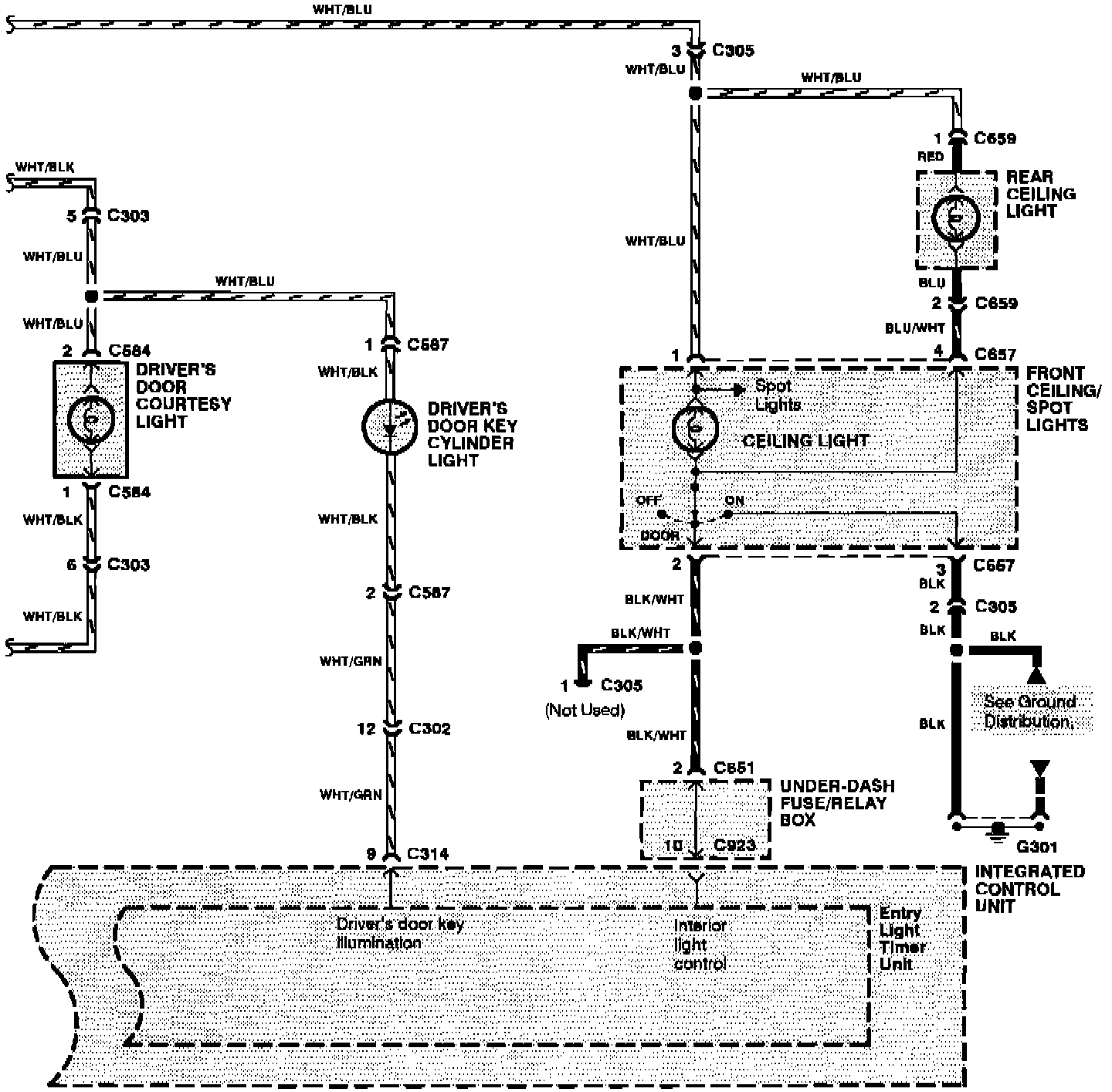

Entry Light Timer System: LS Only:

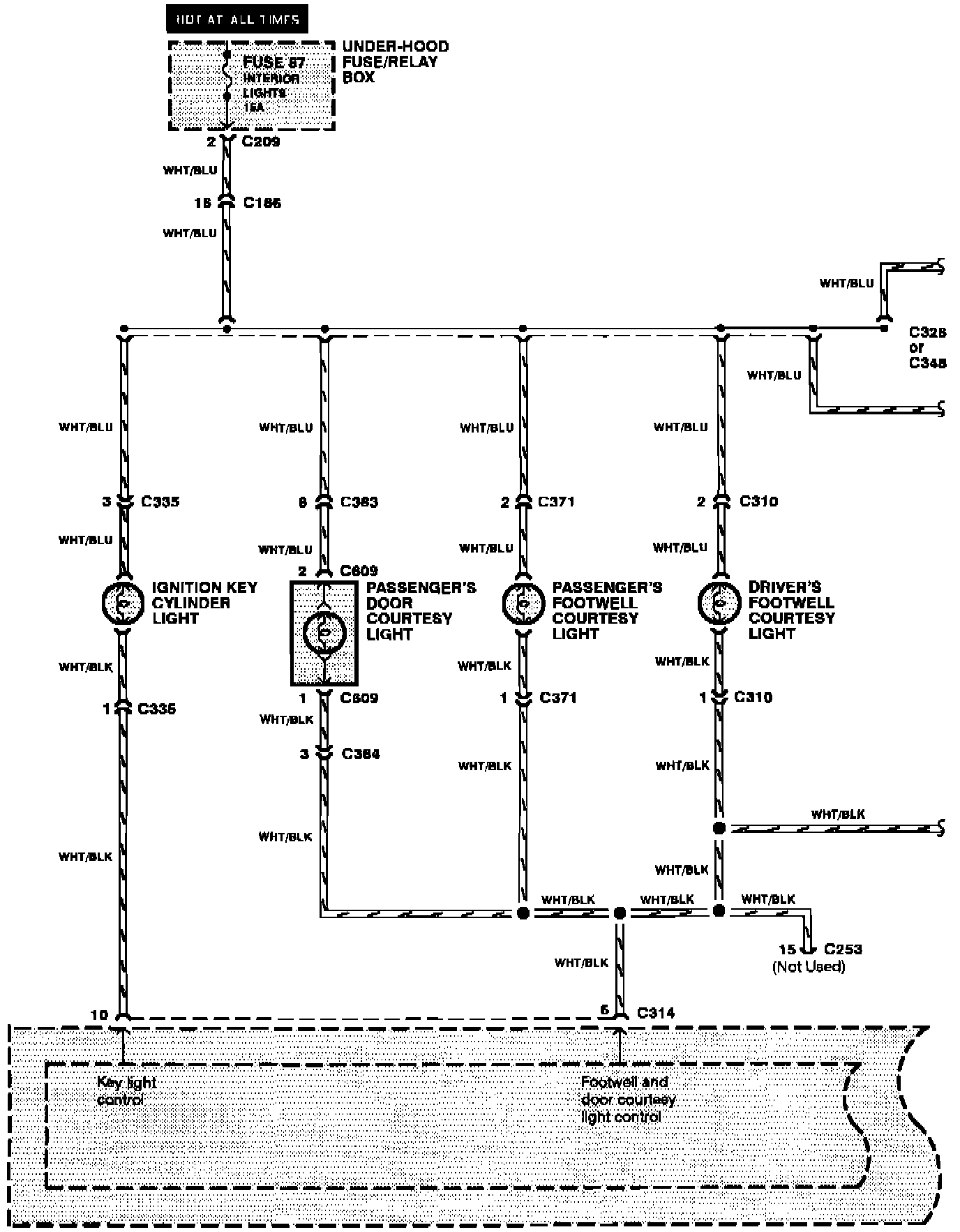

Entry Light Timer System: LS Only:
