Courtesy Lamp
>>
System Diagram
>>
Entry Light Timer System
>>
L Models
L Models

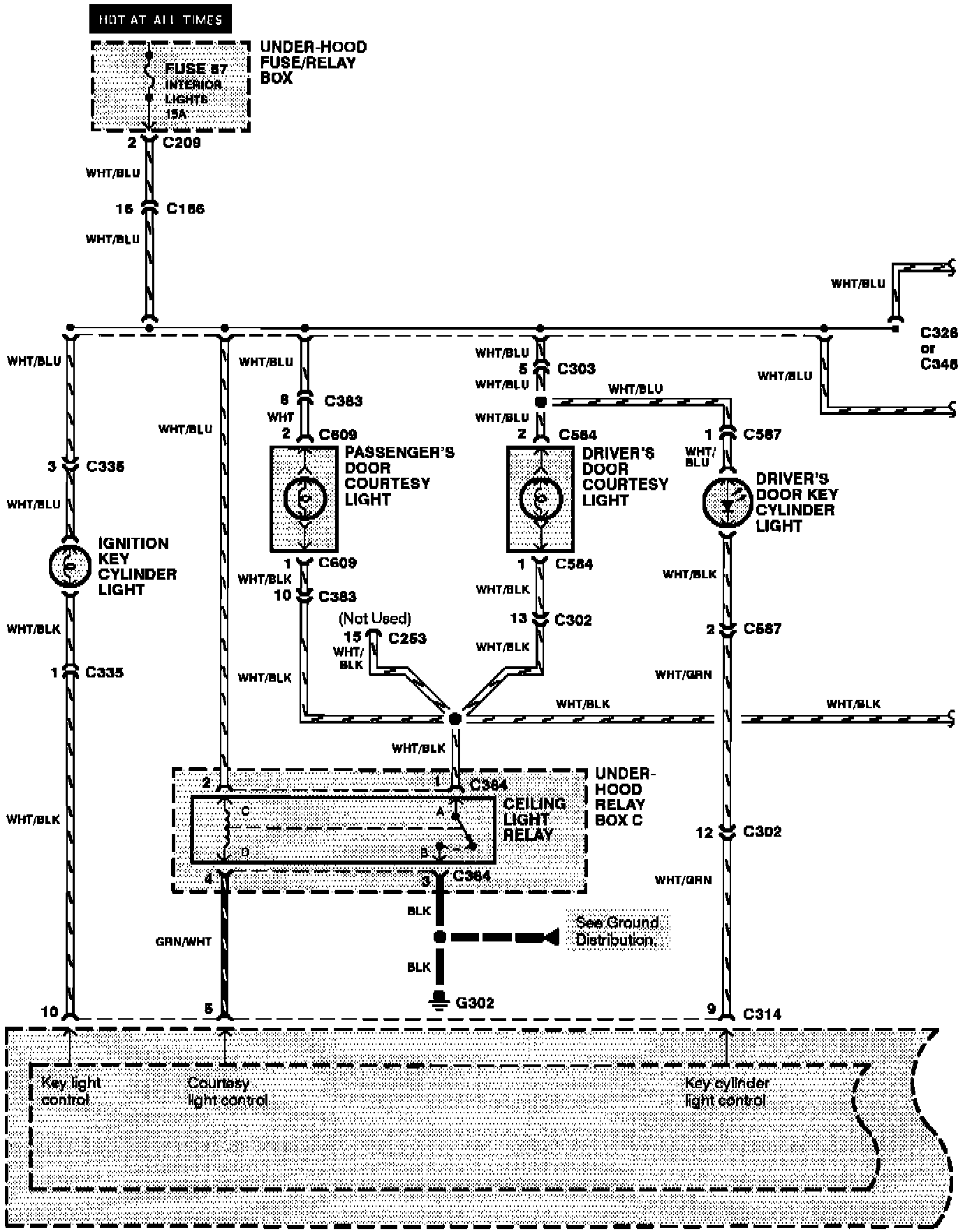

Entry Light Timer System: L Only:

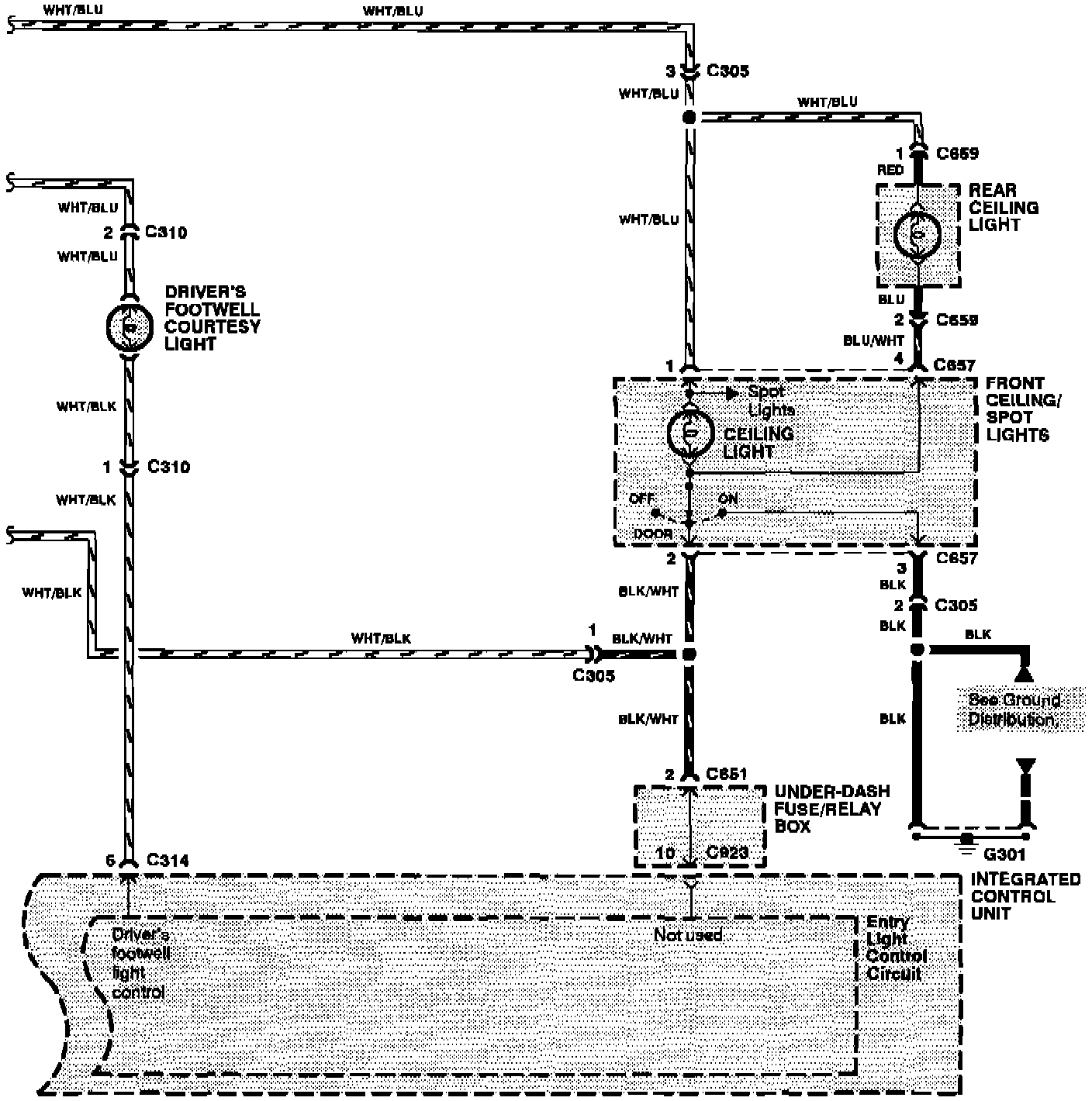

Entry Light Timer System: L Only:
