Guide Rails/Cable Assembly Replacement

Guide Rails/Cable Assembly Replacement

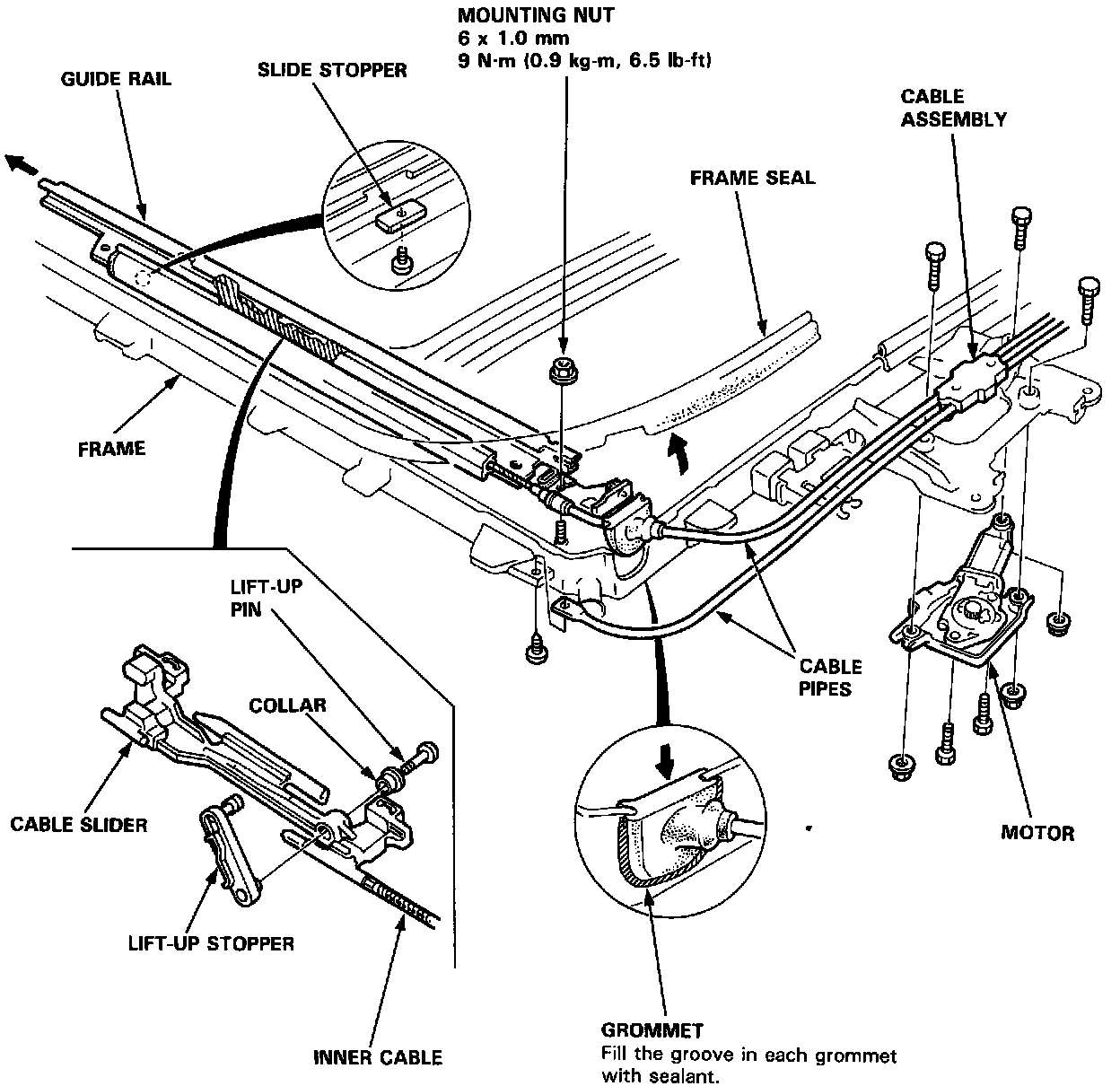

1. With the frame out of the car, remove the motor from the frame.
2. Remove the mounting nuts and lift off the guide rails, then remove the cable assembly with the cable sliders attached.

NOTE: Take care not to bend the cable pipes and guide rails.

3. Installation is the reverse of the removal procedure.

NOTE:
^ Damaged parts should be replaced.
^ Apply grease to the sliding portion.
