Alternator: Testing and Inspection

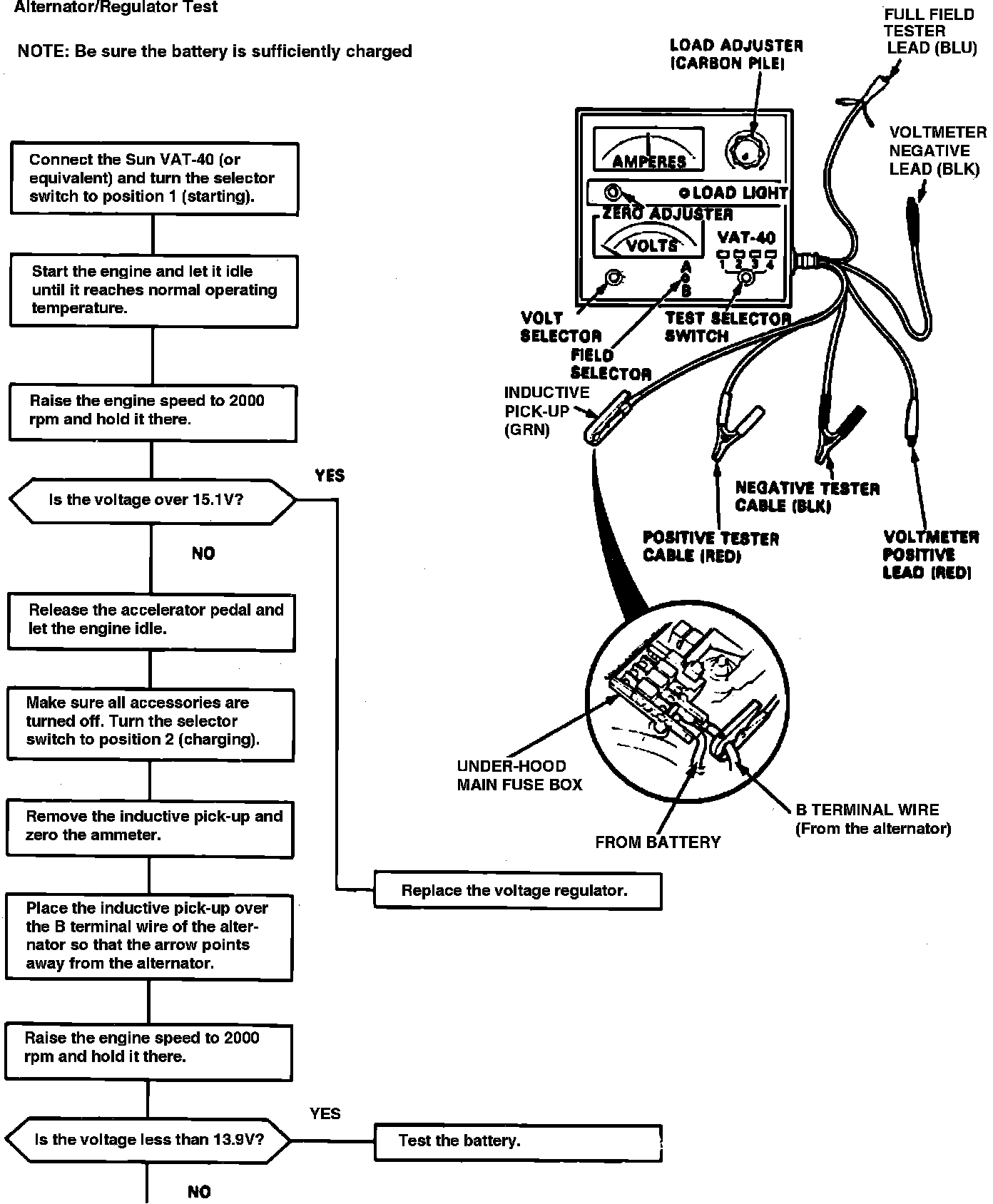

Fig. 6 Alternator/Regulator Test (Part 1 Of 2):
Fig. 6 Alternator/Regulator Test (Part 2 Of 2):
