Acura
>>
1993
>>
Integra L4-1834cc 1.8L DOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum Connections
>>
Automatic Transmission
Automatic Transmission

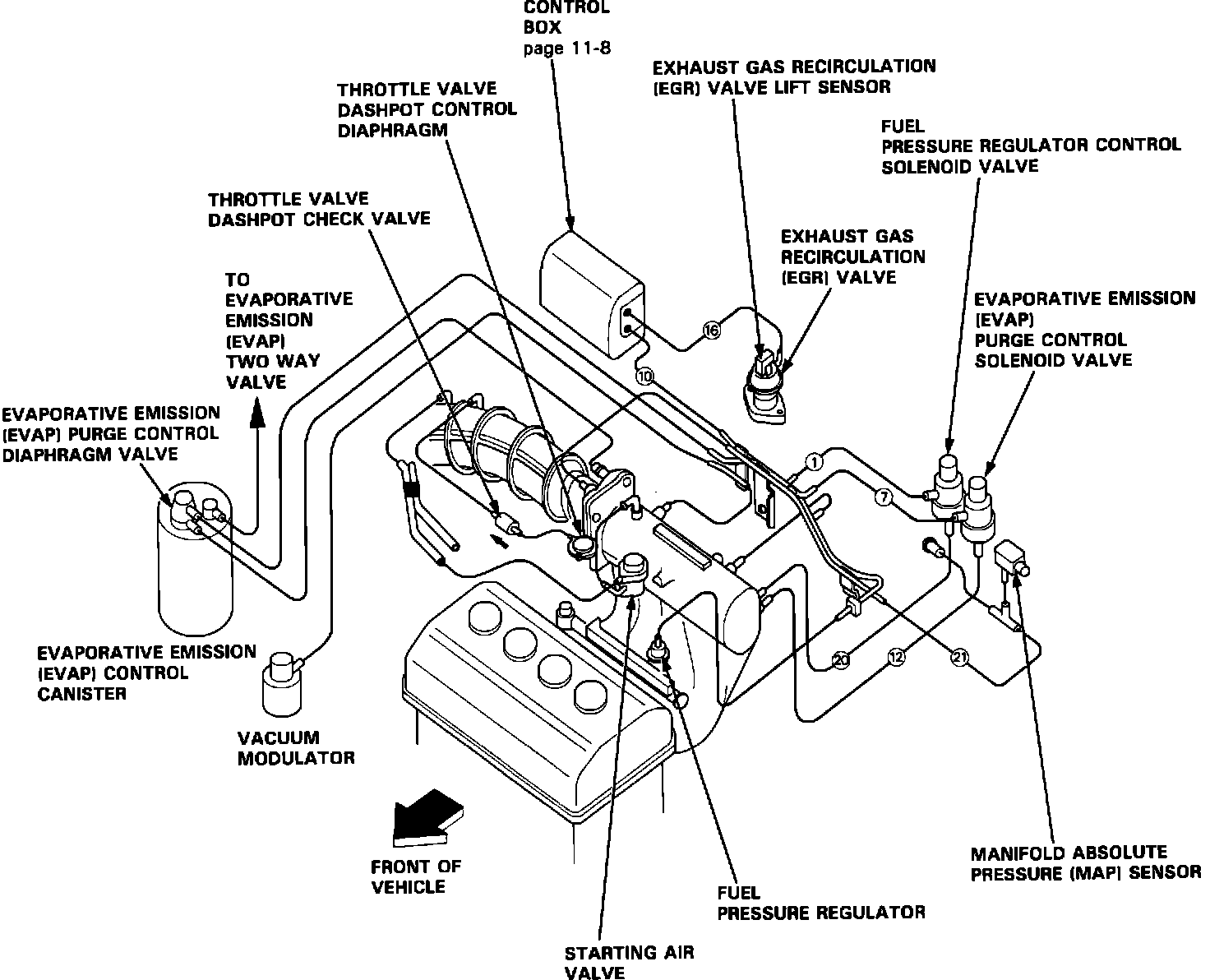

Vacuum Hose Connections - Engine Compartment:
Control Box Vacuum Connections:
