Intake Manifold: Service and Repair

Fig. 4 Fuel Pressure Relief:

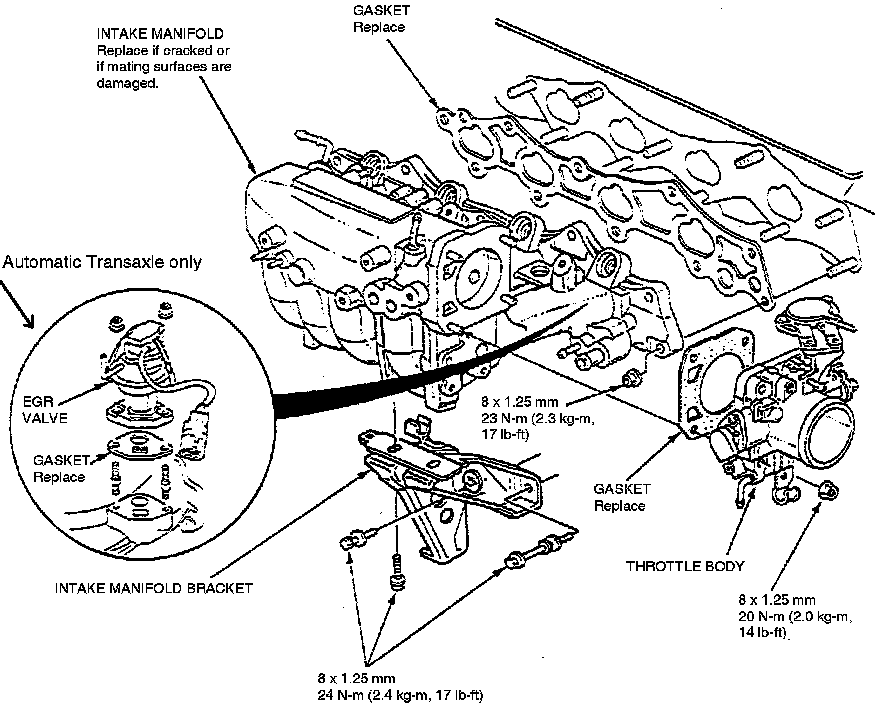

Fig. 30 Intake Manifold Replacement.:

Relieve fuel system pressure by loosening the service bolt on top of fuel filter, Fig. 4, one complete revolution. Refer to Fig. 30, when replacing intake manifold.
