Symptom Related Diagnostic Procedures

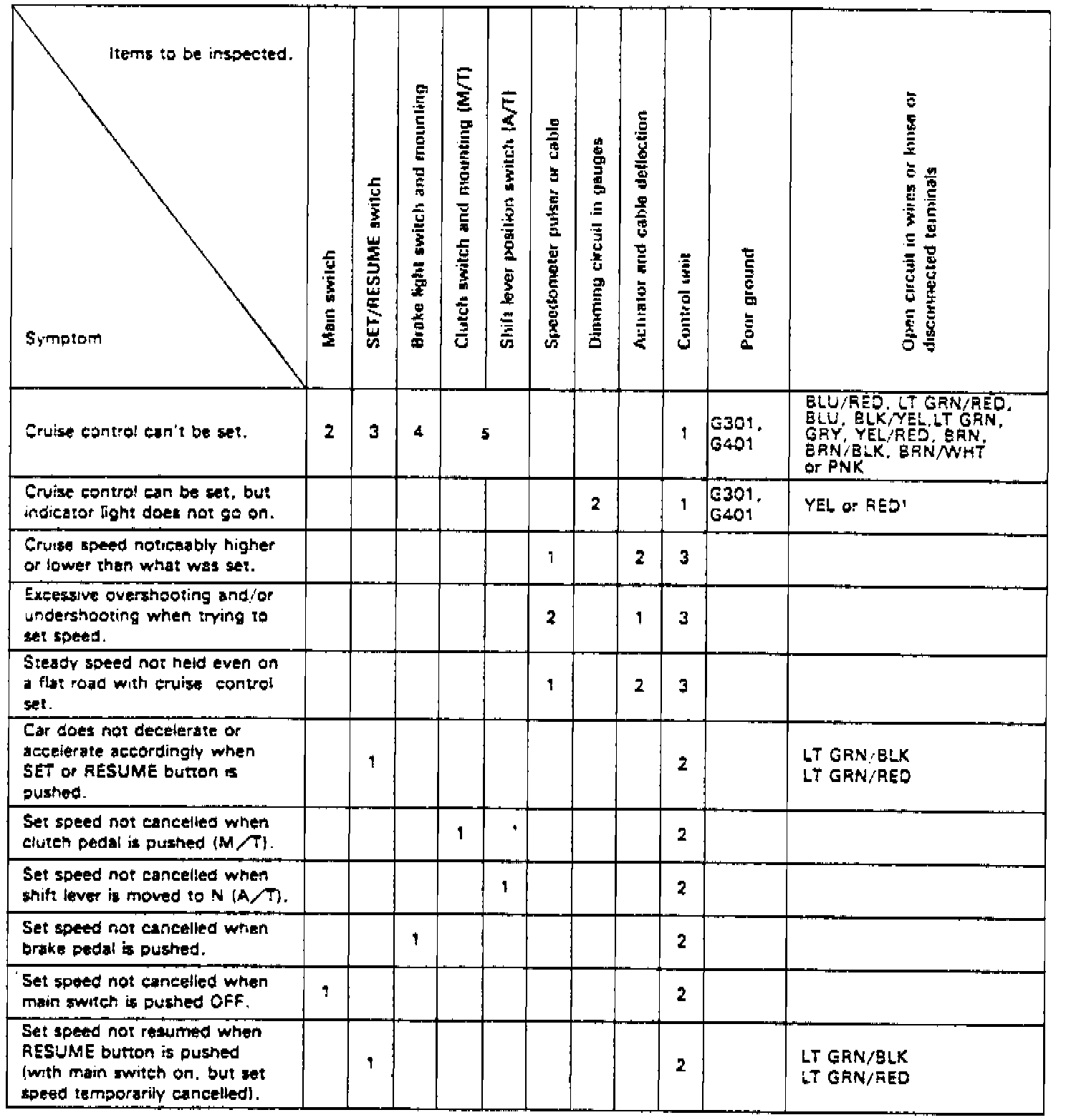

Fig. 1 Troubleshooting Chart:

Refer to Fig. 1 when troubleshooting speed control system. The numbers in chart grid indicate troubleshooting sequence.

Before troubleshooting, check fuses 3, 4 and 9 in fuse panel, then sound the horn and check tachometer for proper operation.

Testing

Symptom Related Diagnostic Procedures

Fig. 1 Troubleshooting Chart:

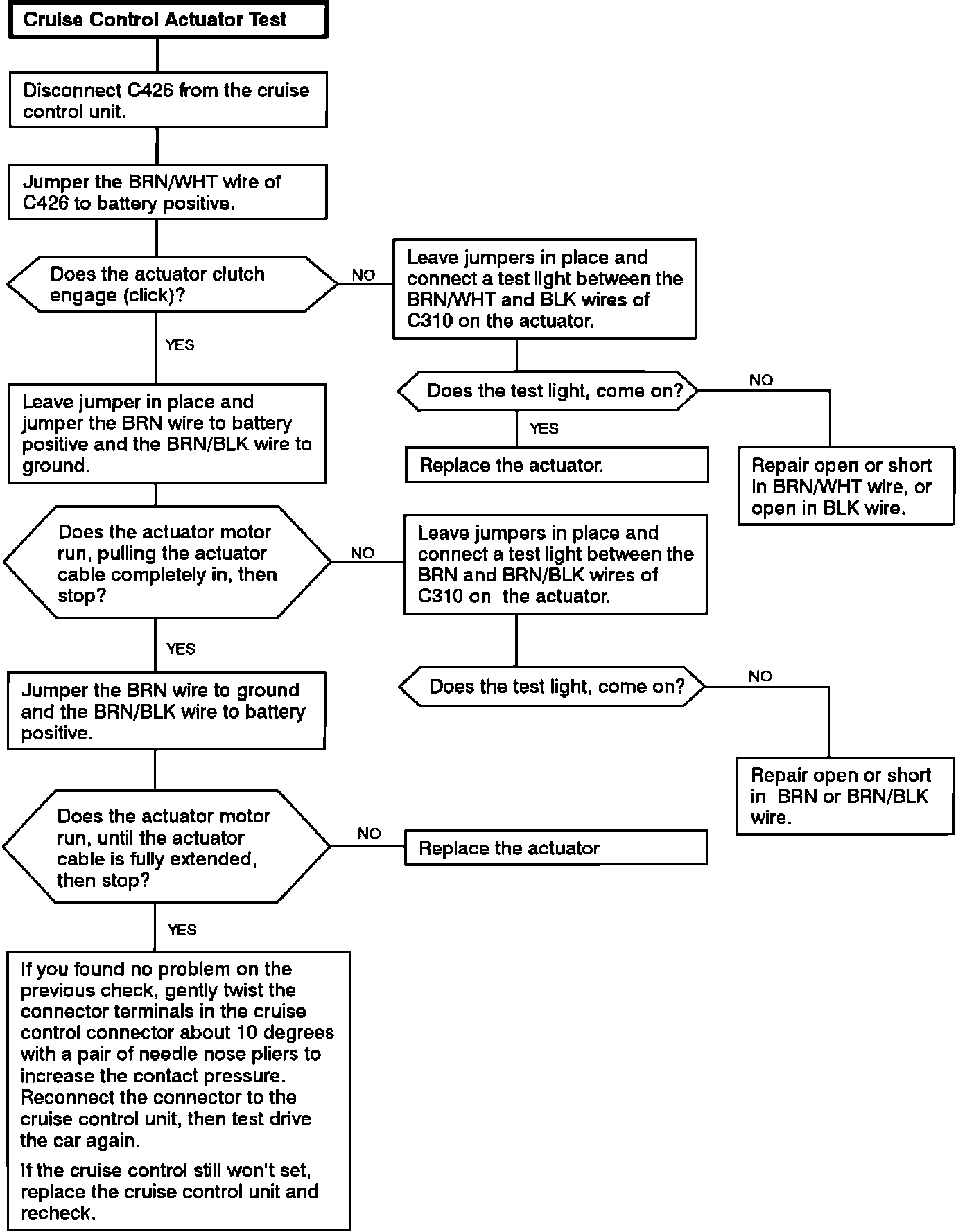

Cruise Control Troubleshooting:

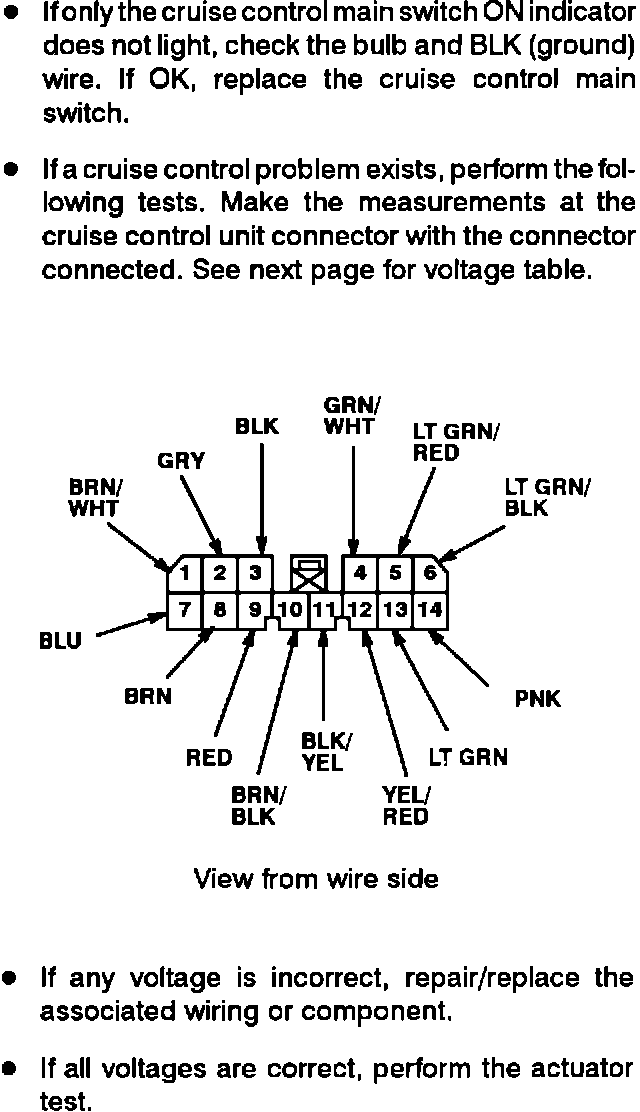

Cruise Control Troubleshooting:

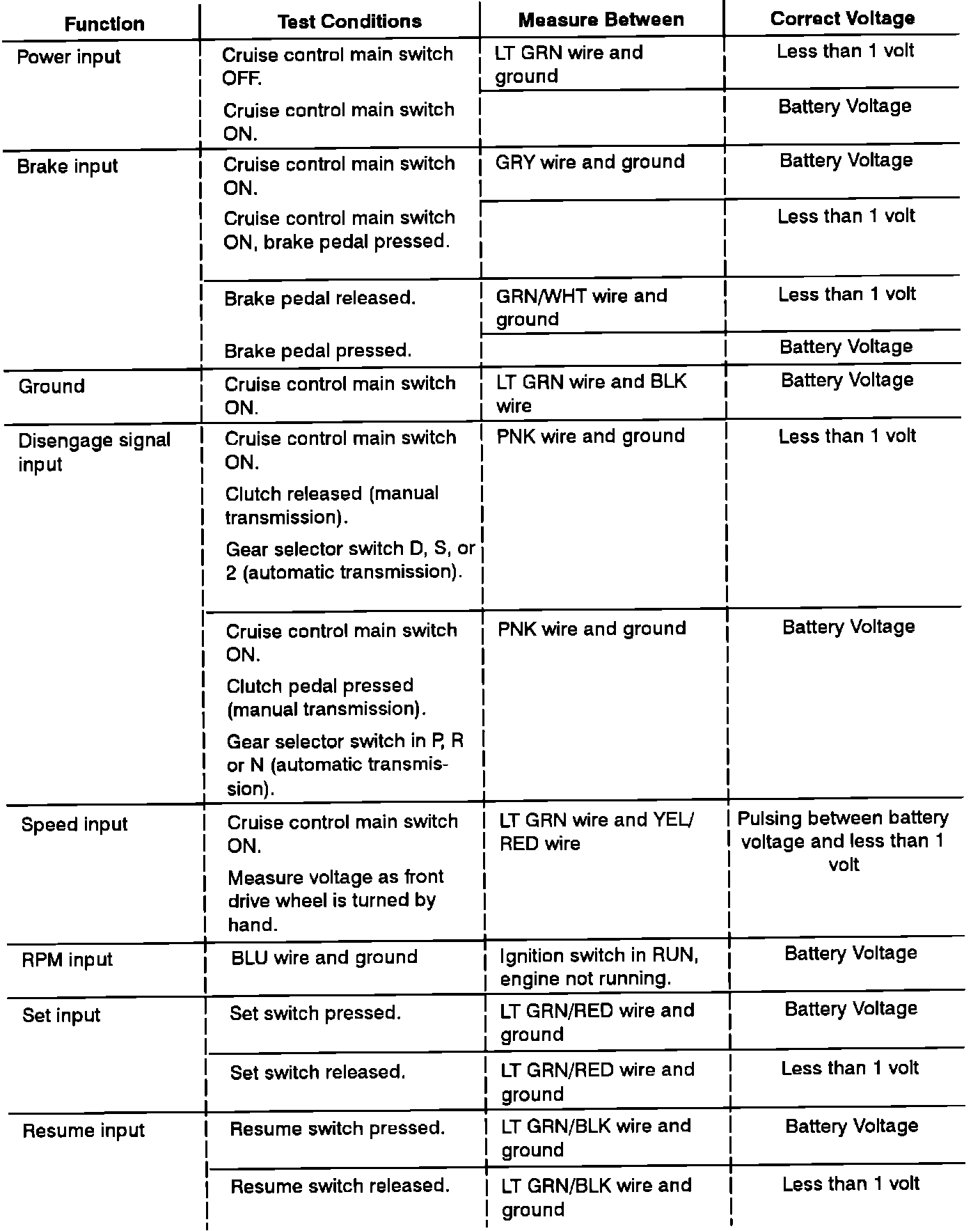

Cruise Control Troubleshooting:
